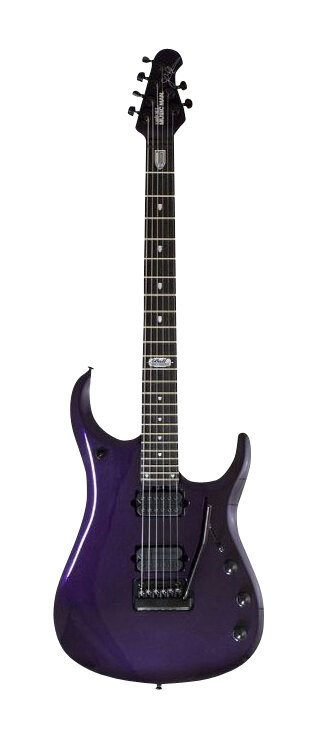

Music Man John Petrucci JPX Piezo Electric Guitar

With a slightly thinner upper horn and a more symmetric bridge end profile, John Petrucci's Music Man JPX is a culmination of a 10 year relationship with Music Man instruments. An alder body with a maple top, ebony fingerboard and select mahogany neck provides an incredible structure for this high-quality electric. The JPX has a chambered body paired with an in-tremolo piezo bridge gives the JPX solid acoustic tones that adds versatility to this guitar that's already loaded with DiMarzio LiquiFire and Crunch Lab humbuckers.

Features

- Alder Body with Maple Top
- Select Mahogany Bolt-on Neck
- Slick, 24 Fret, Ebony Fingerboard
- DiMarzio LiquiFire and Crunch Lab Humbuckers
- Piezo Under-saddle Pickup for Acoustic-style Tones
- Petrucci Music Man Floyd Rose Floating Tremolo
- Schaller M6-IND Tuning Machines with Black Buttons
- Includes Music Man Case

Pickup Switching and Piezo

The 5-way switch is specially wired to provide access to the individual pickup coils as well as the full humbuckers so they can be utilized both traditionally or as single coils for more tonal options. A 3-way toggle enables switching between the humbuckers and the piezo pickup or the option to use both simultaneously. The Piezo under-bridge pickup allows you to get acoustic tones during a live performance without having to switch guitars.

Outputs

The dual output jacks allow you the option of running Piezo/Mono through output 1 or Magnetic/Stereo via output 2.

Same Day Music is an authorized dealer of Music Man products.

Model: John Petrucci JPX 6

Top: Maple

Body: Alder

Tone Block: Mahogany

Finish: High gloss polyester

Neck: Select mahogany

Radius: 15 inches (38.1 cm)

Finish: High gloss polyester

Neck Attachment: 5 bolts perfect alignment with no shifting

Neck Joint: Sculpted, allowing smooth access to higher frets

Scale Length: 25-1/2 inches (64.8 cm)

Fingerboard: Ebony

Frets: 24 Jumbo profile, wide

Inlays: Custom JP

Nut Width: 1-11/16 inches (43 mm)
Width at Last Fret: 2-1/4 inches (57.2 mm)

Headstock Size: Only 5-7/8 inches (14.9 cm) long

Truss Rod: Adjustable, no component or string removal

Pickups: HH (Humbucker/Humbucker)

Neck: DiMarzio LiquiFire

Bridge: DiMarzio Crunch Lab

Under Bridge: Piezo

Electronic Shielding:
- Graphite acrylic resin coated body cavity
- Aluminum lined control cover

Controls: 500kohm volume pot 0.022uF tone capacitor

Switching: 5-way lever pickup selector

Additional 3-way toggle Piezo/Magnetic selector

Bridge: Custom John Petrucci Music Man Piezo floating tremolo

Tuning Machines: Schaller M6-IND

Buttons: Black

Strings: 10p-13p-17p-26w-36w-46w (RPS Slinkys #2240)

Case: Music Man Hardshell Case (included)

Dimensions:
- Width: 12-3/8 inches (31.4 cm)
- Thickness: 1-3/4 inches (4.5 cm)
- Length: 37 inches (94.0 cm)

Weight: 7 lbs, 4 oz (3.29 kg) varies slightly

Same Day Music is an authorized dealer of Music Man products.

Shipping Weights and Dimensions

Shipping Weight: 22 lbs

Shipping Dimensions: 42 x 16 x 6 in
