Product Description

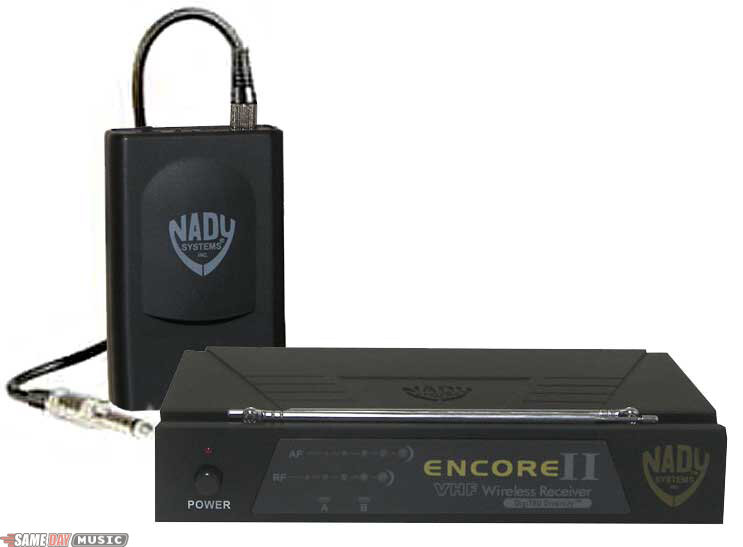

The Encore II is a single-channel DigiTRU Diversity VHF wireless system.

System Includes: Encore II Diversity Receiver, WGT-15 Bodypack Transmitter, Instrument Cable.

Features
Loaded with top professional operating features

Available on selected frequencies in the VHF high-band (171-216 MHz) for interference-free, long-range performance

Half-rack receiver design with retractable front panel antenna(s)

RF and AF 5-LED displays for monitoring incoming signal strength and audio level

Balanced XLR and unbalanced adjustable 1/4 in. jack outputs (Encore Duet: Dual XLR and single mixed 1/4 in. outputs) Includes 1/4 in. cable

Unique, snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting

Nady's proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range (Encore II)

Noiseless transmitter ON/OFF switching

Receiver
Half-rack receiver design with retractable front panel dual antennas

Proprietary DigiTRU Diversity digital processing circuitry to eliminate dropouts and maximize operating range

RF and AF 5-LED displays for monitoring incoming signal strength and audio level

Balanced XLR and unbalanced adjustable 1/4 in. jack outputs

Mute (squelch) adjust control

Externally powered by AC/DC power adapter

Unique snap-out panel locking tabs for single receiver or dual receiver (side-by-side) optional rack mounting

WGT-15 Instrument Bodypack Transmitters
OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"

Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert

Locking 3.5 mm mini-jack provides secure connection for removable microphone or instrument cable

Easily accessible input level adjust control for optimum sound

Dual antennae

Technical Description

System Includes: Encore II Diversity Receiver, WGT-15 Bodypack Transmitter, Instrument Cable.

Encore II Overall System Performance
Frequency Response: 25-20,000 Hz, +/-3dB

Dynamic Range: 120dB

Total Harmonic Distortion: <0.3%

RF Carrier Frequency Range: 169-216 MHz

Frequency Stability: +/-0.005%, crystal controlled

Modulation: FM (F3E), +/-20KHz max.

Operating Range: Up to 250 ft. typical (depending on site conditions); up to 500+feet optimum line-of-sight

Transmitter
Audio Inputs: locking jack for connecting to instrument cable

Controls: OFF/STANDBY/ON switch, input level adjust

LED Indicator:
Unit "ON"(single flash)
Low Battery Alert (steady)

RF Power Out: 50mW (Max.allowed by FCC)

Harmonic & Spurious Emissions: >?40dB

Battery: 9V Alkaline

Battery Life: Up to 15 hours

Dimensions: 4.1 in. x 2.4 in. X 0.8 in. (10.4 x 6.1 x 2.0 cm)

Weight (w/o battery): 3.6 oz (101 g)

Encore II Receiver
Reception Mode: DigiTRU Diversity -
Controls: Power ON/OFF, volume control, mute control

Connectors:
Balanced XLR and unbalanced adjustable
