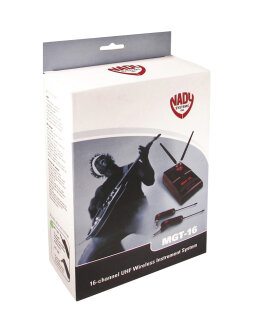

Nady MGT16 UHF Wireless Instrument System

The Nady MGT 16 is the perfect solution for guitarists or bassists who want the freedom to rock on stage without that voice in the back of your mind saying "don't trip over the cord, please don't trip over the cord". With an operating range of up to 250 feet and 16 user selectable UHF frequencies, you will have interference free operation without losing tone.

Features

- UHF wireless system for guitar/bass
- 16 user-selectable PLL frequencies for interference-free operation
- Up to 250 feet operating range, line-of-sight
- Infrared ASC Auto-Sync Channels transfer from receiver to transmitter for instant setup
- Battery operated receiver and transmitter

MGT 16 Receiver
- Compact, portable, "pedal style" receiver
- Dual 1/4 wave antennas
- Infrared sync with transmitter for instant setup
- Unbalanced 1/4 inch line out jack
- Power On/Off/Mute switch; Volume Control; LED indicators for Power On, Low Battery Alert, and RF Reception; DIP-switch channel selection with IR sync to transmitter
- Powered by DC adapter (included) or two AA alkaline batteries for portability (up to 8 hours battery life)

MT 16A / MT 16R Transmitters
- Choice of two transmitter housings: MT-16A with 30 degree angled 1/4 inch plug for use with either recessed or surface mounted jacks, or MT-16R with 90 degree angled 1/4 inch plug for surface mounted jacks only
- Up to eight hours of battery life from a single AAA alkaline or NiMH rechargeable, battery
- Infrared channel sync with receiver for instant setup
- Power On/Off switch; Power/Low Battery LED indicators; IR Sync LED; Input Level attenuation switch; internal Audio Level control trim-pot
- External flexible antenna

Same Day Music is an authorized dealer of Nady products.

Frequency Response: 50Hz-16kHz (-3dB)

Dynamic Range: 120dB

Oscillating System: Phase Lock Loop (PLL)

Total Harmonic Distortion (THD): <0.8%

RF Carrier Frequency Range: 902.40MHz-923.70MHz

Modulation: FM (F3E), +/-30KHz normal

Operating Range: Up to 250 feet (typical, depending on site conditions)

MGT 16 Receiver

Controls:
- Audio Level
- Power ON/MUTE/OFF
- Frequency Select DIP-switches
- IR sync button

Connectors:
- Unbalanced 1/4 inch
- DC Adapter input jack

LED Indicators:
- Power ON (Red-continuous)
- Low Power (Orange-continuous)
- RX reception (Green)

Antennas: Dual 1/4 wave, adjustable orientation

Signal-to-Noise Ratio: >105dB (w/AC/DC power supply)

Receiver Sensitivity: -110dBm nominal, 12dB SINAD

Squelch Sensitivity: -95dBm (minimum/normal setting), adjustable

Output Impedance: 1.0K Ohms

Power Consumption: DC: 3V/ 115mA or AC/DC adapter: 10VDC/200mA

Battery: Two AA alkaline or NiMH

Battery Life: Up to 8 hours

Dimensions (WxDxH): 2.75 x 5.00 x 1.88 inches (7.0 x 12.7 x 4.78 cm)

Weight (without batteries): 5.7 oz (161.6 g)

Housing Construction: ABS Plastic

MT-16A/R Transmitter

RF Power Out: 25mW nominal, 50mW maximum

Harmonic & Spurious Emissions: -50dB

Controls: Power ON/OFF, 15dB Attenuation Pad select switch

LED Indicators: Power ON (Red-single flash), Low Battery (Red flash)

Input Impedance: 500 kOhms

Power Consumption: DC 1.5V/90mA

Battery: One AAA alkaline

Battery Life: Up to 8 hours

Antenna: 1/4 wave, permanently attached

Dimensions (WxDxH): MT 16A: 4.5 x 2.0 x 1.0 inch (11.43 x 5.08 x 2.54 cm), MT 16R: 3.5 x 2.5 x 1.0 inch (8.9 cm x 6.35 cm x 2.54 cm)

Weight (without batteries): MT 16A: 1.2 oz (34 g), MT 16R: 1.1 oz (31.2 g)

Housing Construction: ABS Plastic

Same Day Music is an authorized dealer of Nady products.

Shipping Weights and Dimensions

MGT16A, Frequencies 902.40 to 923.70 MHz

Shipping Weight: 2 lbs

Shipping Dimensions: 11 x 6 x 3 in

MGT16R, Frequencies 902.40 to 923.70 MHz

Shipping Weight: 1 lbs

Shipping Dimensions: 11 x 6 x 3 in
