Nady MPM4130 PA210 Deluxe PA Package with Microphone
This portable system from Nady is a compact PA - complete with a wireless microphone system -- at a rock-bottom price.
Product rated 7.7 out of 10 (45 ratings)
Read 2 Full Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
PRODUCT DESCRIPTION

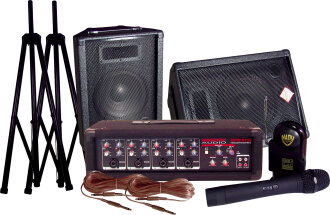

This portable system from Nady is a compact PA - complete with a wireless microphone system -- at a rock-bottom price. Perfect for all small venues, it features the Nady MPM 4130 4-channel 130-watt powered mixer with built-in digital delay, 2 Nady PAM-10F 2-way, full range speaker cabs with heavy-duty 10 in. woofers and a 7 in. wide piezo horn each, 2 rugged speaker stands, two 20 ft. speaker cables, and a Nady DKW HT handheld wireless mic system. Rugged and easy to operate, the MPM 4130 mixer offers great features and performance and is ideal for many venue applications. The MPM 4130 features combination XLR and
TECHNICAL DESCRIPTION
PAM10F
Power Rating: 120W program
Weight: 16.5 lbs (7.5 Kg)
Dimensions: 10 in. W x 20 in. H x 15 in. L (25.4 x 50.8 x 38.1 cm)]
MPM4130
Power Amp, Max. Output Power In Watts (RMS):
Number of Power channels: 1
Power at 8 Ohms: 100W
Power at 4 Ohms: 130W
Inputs:
Balanced mono Mic/Line channels: 4
2 Track input: 1
Outputs: TRS, unbalanced Main out
Channel Strips: Rotary Volume controls: Rotary
Master Section: Rotary Master Fader
Built-In Digital Effect: Digital Delay (80ms, 120ms, 160ms, 200ms)
Noise (20Hz to 20KHz bandwidth, line Master output):
Master output, all faders down: -82dB
Power amp output, all faders down: -55dB
THD Power output, 20Hz to 20KHz: <0.1% @100W/4 Ohms
Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz Bandwith, channel in to master output), Channel fader down: <-65dB
Frequency Response (Mic input to output):
20Hz ~ 20KHz, line level o/p @ +4dBu into 600 Ohms: +/-2dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8 Ohms: +/-2dB
Sensitivity @ Mixer Output +4dBu:
Mic/Line: -42dB/-22dB
Tape in: -10dB
Channel Equalization:
Low EQ: 80Hz (+/-15dB)
Hi EQ: 12KHz (+/-15dB)
Microphone Preamp E.I.N. (150 Ohms Terminated, max. Gain): <-102dBm
Power Consumption: 130 watts
Power Requirements: 100-120, 220-240 VAC, 50-60 Hz
Fusing: 5x20mm glass type, 4A/250V for 115VAC, and 2A/250V for 230VAC operation, fast-blow fuse
Dimensions (W x H x D): 17.52 in. x 8.62 in. x 5.87 in. (445 x 219 x 149 mm)
Weight: 18.45 lbs (8.4kg)
DKW HT Wireless
Frequency Response: 40-20,000 Hz, +/-3dB
Dynamic Range: 100dB
Total Harmonic Distortion: <0.65%
RF Carrier Frequency Range: 170-216 MHz
Frequency Stability: +/- 0.005%, crystal controlled
Modulation: FM (F3E), +/-20KHz max.
Operating Range: 250 ft. typical;up to 500+ ft. line-of-sight
Transmitter
Controls: Off/Standby/On switch
LED Indicator: Unit "On" (single flash), Low Battery Alert (steady)
RF Power Out: 50mW (Max. allowed by FCC)
Harmonic & Spurious Emissions: >-40dB
Battery: 9V Alkaline
Battery Life: Up to 15 hours
Dimensions: 9.5 in. x 1.4 in. Dia.
Weight (w/o battery): 6.9 oz. (193 g.)
Receiver
Controls: Power On/Off
Connectors:
Power Rating: 120W program
Weight: 16.5 lbs (7.5 Kg)
Dimensions: 10 in. W x 20 in. H x 15 in. L (25.4 x 50.8 x 38.1 cm)]
MPM4130
Power Amp, Max. Output Power In Watts (RMS):
Number of Power channels: 1
Power at 8 Ohms: 100W
Power at 4 Ohms: 130W
Inputs:
Balanced mono Mic/Line channels: 4
2 Track input: 1
Outputs: TRS, unbalanced Main out
Channel Strips: Rotary Volume controls: Rotary
Master Section: Rotary Master Fader
Built-In Digital Effect: Digital Delay (80ms, 120ms, 160ms, 200ms)
Noise (20Hz to 20KHz bandwidth, line Master output):
Master output, all faders down: -82dB
Power amp output, all faders down: -55dB
THD Power output, 20Hz to 20KHz: <0.1% @100W/4 Ohms
Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz Bandwith, channel in to master output), Channel fader down: <-65dB
Frequency Response (Mic input to output):
20Hz ~ 20KHz, line level o/p @ +4dBu into 600 Ohms: +/-2dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8 Ohms: +/-2dB
Sensitivity @ Mixer Output +4dBu:
Mic/Line: -42dB/-22dB
Tape in: -10dB
Channel Equalization:
Low EQ: 80Hz (+/-15dB)
Hi EQ: 12KHz (+/-15dB)
Microphone Preamp E.I.N. (150 Ohms Terminated, max. Gain): <-102dBm
Power Consumption: 130 watts
Power Requirements: 100-120, 220-240 VAC, 50-60 Hz
Fusing: 5x20mm glass type, 4A/250V for 115VAC, and 2A/250V for 230VAC operation, fast-blow fuse
Dimensions (W x H x D): 17.52 in. x 8.62 in. x 5.87 in. (445 x 219 x 149 mm)
Weight: 18.45 lbs (8.4kg)
DKW HT Wireless
Frequency Response: 40-20,000 Hz, +/-3dB
Dynamic Range: 100dB
Total Harmonic Distortion: <0.65%
RF Carrier Frequency Range: 170-216 MHz
Frequency Stability: +/- 0.005%, crystal controlled
Modulation: FM (F3E), +/-20KHz max.
Operating Range: 250 ft. typical;up to 500+ ft. line-of-sight
Transmitter
Controls: Off/Standby/On switch
LED Indicator: Unit "On" (single flash), Low Battery Alert (steady)
RF Power Out: 50mW (Max. allowed by FCC)
Harmonic & Spurious Emissions: >-40dB
Battery: 9V Alkaline
Battery Life: Up to 15 hours
Dimensions: 9.5 in. x 1.4 in. Dia.
Weight (w/o battery): 6.9 oz. (193 g.)
Receiver
Controls: Power On/Off
Connectors:
CATALOG DESCRIPTION
4-channel powered mixer@Wireless microphone@Digital delay@All cables and speaker stands included@130 watts of power; 2 x 10" speakers
