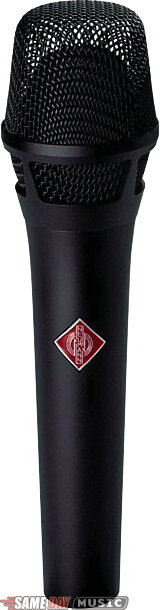

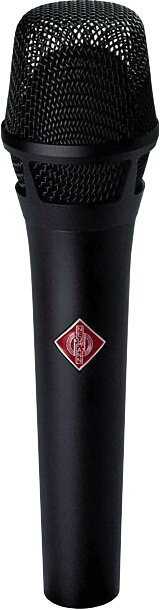

Product Description

The KMS 105 is an excellent vocal microphone that truly gives the Neumann Sound on stage. It excels as a live and studio microphone for speech, acoustic-stringed instruments and brass. Very high SPL capabilities, low handling noise, tight polar pattern, excellent feedback rejection, and uncolored off-axis response make this a professional choice that is easy to use and a pleasure to record with.

Designed with superlative vocal reproduction in mind, the KMS 105 brings Neumann quality to the demanding sound reinforcement environment. With its supercardioid polar pattern, low self noise, and uncolored off-axis pickup, the KMS 105 complements in-ear monitor systems. By employing a unique 4-layer acoustic filter, the KMS 105 minimizes popping and wind noise, and with special mechanical and electrical filters, handling noise is virtually eliminated. Because of the superior resolution and linear frequency response, it is very easy for the artist using the KMS 105 to identify whether he or she is "on mic."

Features
Neumann sound on stage

Excellent transparency for vocals/speech

Without off-axis coloration

Transformerless output

Supercardioid polar pattern with excellent feedback rejection

Effective pop shielding without any side effects

Set includes stand clamp

Acoustic
When compared to other handheld vocal microphones, the KMS 105 offers a superior resolution of the voice, with extended frequency response and accurate transient detail. Sibilance problems common to other handheld condenser mics are eliminated.

No foam is used in the basket, thus eliminating any "clouding" or "muffling" of the sound. Also, by using a DC-polarized studio condenser capsule, all the nuances of the voice come through with subtlety, power, and focus.

The K 105 capsule was developed from the K 50, found in the KMS 150, KM 150, and KM 185 microphones. The K 105 features a supercardioid pattern, achieved by specially modifying the response of the K 50 pressure gradient transducer.

The frequency response characteristic is developed in the acoustic realm, allowing for accurate representation of transient details found in music and speech, and thus transmitting a very "open" and detailed capture of the human voice. Due to the tight supercardioid polar pattern and the coloration-free off axis response, a very high level of gain before feedback is achieved. This polar pattern offers the highest degree of isolation while still allowing for a generous "sweet spot" in front of the microphone.

Electrical
The dynamic range of the KMS 105 is 132 dB, allowing reproduction of the artist's full expression, without restraint. The maximum SPL is 150 dB and with a low self noise of 18 dB-A, a greater gain can be used without risk of adding noise to the mix. This way, the artist is able to use the microphone at a greater distance - therefore maintaining a wide range of creative freedom during the performance.

Because of the superior resolution and linear high frequency response, it is very easy for the artist using in-ear monitors to identify whether or not he or she is "on mic" with the KMS 105. And by employing a transformerless output circuit, this microphone can incorporate long cable runs with no loss of signal quality or high-frequency response.

The Microphone Basket
Most of the available vocalist microphones rely on the attenuating effects of foam layers inside the basket. Although this is certainly a cost-effective procedure, the detrimental effects of this foam layer can be shown quite easily. Treble frequencies are attenuated, and furthermore the polar pattern can be deformed.

These drawbacks can be eliminated by selecting open mesh constructions. With careful dimensioning and selection of different mesh sizes, excellent pop and wind attenuation can be delivered, as is well known from the standard studio-use pop screens PS 10 and PS 20, made of 2 layers of spaced fabric.

In the KMS 105 a combination of 4 wire meshes with different mesh sizes is used. The chosen combination yields a very constant polar pattern, while maintaining the capsule's acoustic frontal frequency response. Naturally, the outer microphone basket is hardened steel, due to the required ruggedness for on-stage use.

Technical Description

Acoustical Operating Principle: Pressure gradient transducer

Directional Pattern: Supercardioid

Frequency Range: 20 Hz-20 kHz

Sensitivity at 1 kHz into 1 kohm: 4.5 mV/Pa

Rated impedance: 50 ohms

Rated load impedance: 1000 ohms

Equivalent SPL CCIR 468-3: 28 dB

Equivalent SPL DIN/IEC 651: 18 dB-A

S/N ratio CCIR 468-3: 66 dB

S/N ratio DIN/IEC 651: 76 dB

Maximum SPL for THD 0.5%: 150 dB

Maximum output voltage: 12 dBu

Dyn. range of the mic. amplifier DIN/IEC 651: 132 dB

Supply voltage: 48 V +/- 4 V

Current consumption: 3.5 mA

Matching connector: XLR 3F

Weight: approx. 300 g

Diameter: 48 mm

Length: 180 mm

Catalog Description

Neumann-quality sound for the stage@Condenser element@Supercardioid polar pattern@Integrated pop shield@Includes stand clamp
