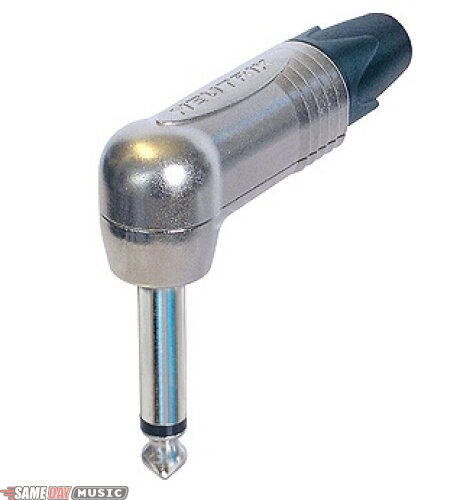

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4-inch plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88mm jack pitch). The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip. The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Features
- All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
- Extra slim 1/4 in. plug for highest packing density
- Robust diecast shell in stylish design
- Improved chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Electrical
Contact resistance: depends on mating connector mOhm
Dielectric strength: 1 kVdc
Insulation resistance: > 2 GOhm (initial)
Insulation resistance: >= 1 GOhm (after damp heat test)
Rated current per contact: depends on mating connector A
Rated voltage: 50 V
Mechanical
Cable O.D.: 4 - 7 mm
Lifetime: > 1000 mating cycles
Wire size: 1 mm
