Native Instruments Guitar Rig Kontrol Edition, Macintosh and Windows

Ultimate Kontrol

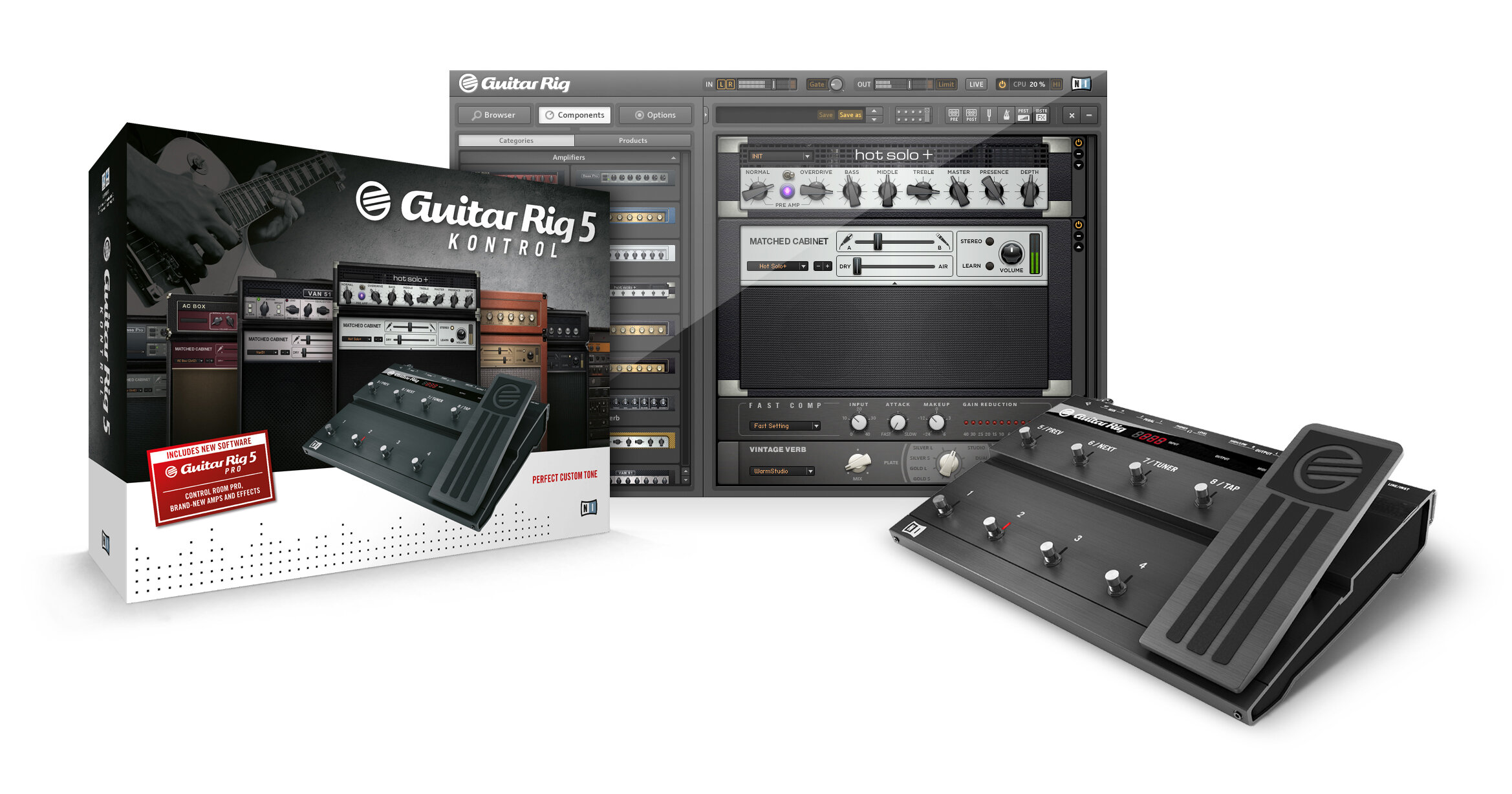

The Native Instruments Guitar Rig Kontrol Edition is the supreme all-in-one tool for guitar and bass, combining the GUITAR RIG 5 PRO software with an ultra-flexible pedalboard controller and audio interface. Plug into RIG KONTROL, and you're ready to go.

The on-board studio-quality audio interface captures every detail of your instrument and playing style, while the software provides an incredible collection of perfectly modeled classic amps, cabinets, mics and effects - all in a super-simple drag-and-drop rack format. Any style, any time - the perfect solution for professional studio and live setups.

Powerful Software

The package gives you the full version of the GUITAR RIG 5 PRO software. This powerful and intuitive effects rack provides 17 amps, 27 cabinets, 16 mics and 54 effects, recreated in stunning detail. The latest version includes two new amps - distortion specialists for lead and riffs - six powerful new effects and the all-new Control Room Pro for complete custom control.

Full Hardware Control

The stylish RIG KONTROL provides intimate synergy between player and software, with eight switches, a sturdy pedal and an integrated audio interface. Premium analog-to-digital converters deliver crystal-clear 24-bit/192kHz, sound, and the all-new, updated audio drivers ensure that latency is reduced to an absolute minimum.

RIG KONTROL is also a universal MIDI controller, for use with any MIDI-compatible software or hardware, including the free GUITAR RIG 5 PLAYER. Just hook it up, and put the world of music production at your feet!

Simple Control for Complex Setups

Assigning your custom amp setups and effects chains to the RIG KONTROL hardware is easy and immediate. And on stage, the convenient and elegant 'Live View' displays the most essential assignments and parameters in an ultra-clear format gigging guitarists will appreciate, with an integrated tuner.

Features:

• 17 perfectly emulated iconic guitar and bass amps, each with a Matched Cabinet

• Control Room: 8-track console, readily armed with carefully tuned and perfectly phase-aligned cabinet and mic setups for instant professional mixes

• New extended Control Room Pro - dig deeper with your own choice of 27 cabinets, 16 mics, and 3 mic positions for every channel on the 8-track mixer

• 54 meticulously-modeled stomp boxes and rackmount effects, from acclaimed hardware legends to innovative and outstanding creative effects

• Easy-to-use modulation framework, with LFOs, step sequencers, envelope followers, true sidechaining and more

• Highly intuitive Rack concept and new Container module for creating custom channel strips and multi-effects chains, with easy macro controls for live performance

• Over 400 meticulously-designed sounds for all genres, from classic signature sounds to avant-garde effects

• Integrated Loop Machine, Tuner, and Metronome plus Tape Deck modules for easy recording and playback

Hardware:

• Includes RIG KONTROL foot pedal: a rock-solid controller with eight assignable switches for intuitive 'hands-free' software interface control

• Integrated 24-bit/192kHz USB 2.0 audio and MIDI interface with DI box - no additional MIDI interface or preamp required

• LEDs display current preset and on/off status of effects

• Real-time control of multiple parameters with just one switch

• Balanced stereo output and separate headphone monitoring

• MIDI In/Out plus dedicated jack for extra controllers/pedals

Same Day Music is an authorized dealer of Native Instruments products.

• Audio Inputs (A/D):

• Channels: 2

• Sample Rate: 44.1, 48, 88.2, 96, 192 kHz

• Resolution: 16/24-bit

• Converter: Cirrus Logic

• Instrument Inputs:

• Input Impedance: 1 mOhm

• Full Scale Level at Maximum Gain: - 11,5 dBu

• SNR (weighted): 100 dBu (ADC)

• THD+N: 0,009%

• Frequency Response: 2+/- 0,5dB . 20 Hz - 24 kHz

• Dynamic Range: 105 dB (ADC)

• Line Inputs:

• Input Impedance: 44 kOhm

• Full Scale Level at Maximum Gain: -5,5 dBu

• Maximum Input Level: +16 dBu

• SNR (weighted): >100 dB

• SNR: -97 dBu (A-weighted)

• THD+N: 0,009%

• Frequency Response: +/- 0,5 dB . 20 Hz - 36 kHz

• Dynamic Range: 105 dB (ADC)

• Line Outputs (D/A):

• Output Impedance: 100 Ohms

• Maximum Output Level: +6,3 dBu

• SNR (weighted): >100 dBu

• THD+N: 0,010%

• Frequency Response: +/- 0,5 dB . 22 Hz - 44 kHz

• Headphone Output:

• Load Impedance: 8 Ohms - 600 Ohms

• Maximum Output Level: 1,61V rms @ 100 Ohm

• SNR (weighted): >91 dB

• THD+N (60 Ohms): 0,013%

• Frequency Response: +/- 0,5dB . 22 Hz - 44 kHz

• Compatibility: ASIO 2.0, Core Audio, WDM

• System Requirements:

• Windows: Windows XP (latest Service Pack, 32 Bit), Windows Vista/Windows 7 (latest Service Pack, 32/64 Bit), Intel Pentium 4 2.4 GHz or Intel Core Duo or AMD Athlon 64, 2 GB RAM

• Mac: Mac OS X 10.5 or 10.6 (latest update, 32/64 Bit), Intel Core Duo, 2 GB RAM

• Supported Interfaces:

• Stand-alone

• VST(R)

• Audio Units(TM)

• RTAS(R) (Pro Tools(R) 8 and higher)

• ASIO(R)

• Core Audio(TM)

• DirectSound(R)

• WASAPI(TM)

• Dimensions: 360 x 237 x 102 mm, (14.1 x 9.3 x 4in.)

• Weight: 2.6 kg, (5.7 lbs.)

Same Day Music is an authorized dealer of Native Instruments products.

Shipping Weights and Dimensions

Shipping Weight: 9 lbs

Shipping Dimensions: 12 x 17 x 4 in

Complete guitar/bass recording solution@12 amp models, 19 cabinets@44 high-quality effects@Includes foot controller with USB interface@Standalone, VST, AU, RTAS support
