Product Description

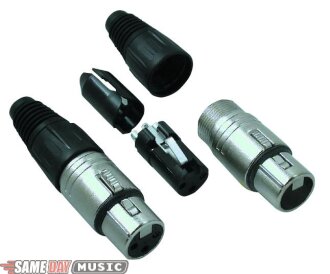

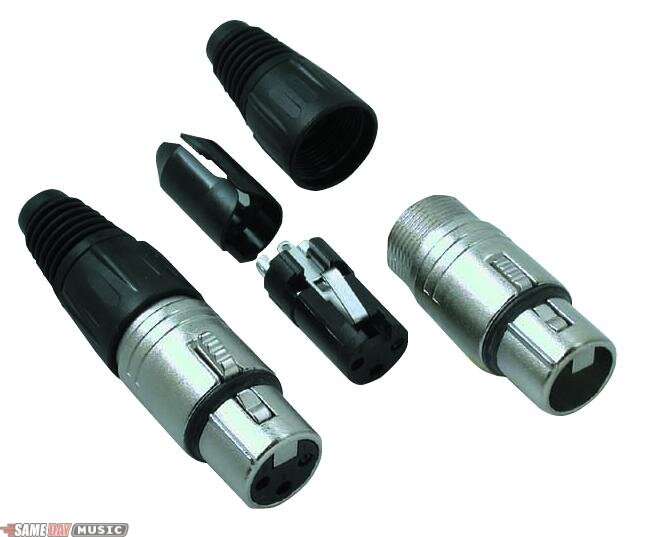

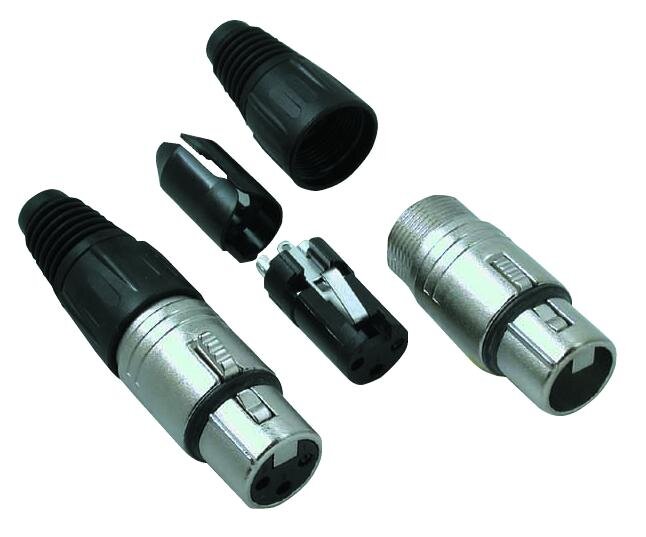

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

3 pole female cable connector with Nickel housing and silver contacts.
'
Features
Rugged zinc diecast shell, long lasting and durable

Chuck type strain relief system for secure clamping of cables

Boot with rubber gland gives high protection against bending stresses

Coloured rings and boots available for coding and marking

UL recognized components

Technical Description

Product
Connector Type: XLR

Gender: female

Electrical
Capacitance between contacts: ≤ 4 pF

Contact resistance: ≤ 3 mΩ

Dielectric strength: 1,5 kVdc

Insulation resistance: > 2 GΩ (initial)

Insulation resistance: > 1 GΩ (after damp heat test)

Rated current per contact: 16 A

Rated voltage: 50 V

Mechanical
Cable O.D.: 3.5 - 8.0 mm

Insertion force: ≤ 20 N

Withdrawal force: ≤ 20 N

Lifetime: > 1000 mating cycles

Wire size: max. 2.5 mm²

Wire size: max. 14 AWG

Wiring: Solder contacts

Locking device: Latch lock

Material
Boot: Polyuretan

Bushing: Polyamide (PA 6 15% GR)

Contact plating: 2 µm Ag over 2 µm Ni

Contacts: Bronze (CuSn8)

Insert: Polyamide (PA 6.6 30 % GR)

Locking element: St3K32 (latch) / Ck 67 (spring)

Shell: Zinc diecast (ZnAl4Cu1)

Shell plating: Nickel

Strain relief: Polyacetal (POM)

Environmental
Approvals: UL

Flammability: UL 94 HB

Standard compliance: IEC 61076-2-103

Protection class: IP 40

Solderability: Complies with IEC 68-2-20

Temperature range: -30 °C to +80 °C
