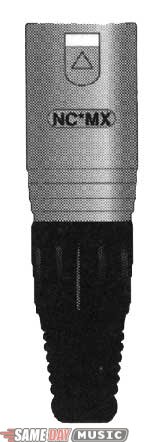

    Neutrik NC3MX X Series Male XLR Connector, Silver Contacts

    3-pole. Cable connector, male, rear insert, and easy assembly like FX. Nickel housing and silver contacts.
    Product Rated 9.3 Out of 10 (8 ratings)
    *********.*
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 16JK-L6ZM

    Web Item #NTKNC3MX

    Neutrik NC3MX Male XLR - Silver
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Product Information
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Fri
    •
    • on orders over $29
    • 2 Day: $12
    • Overnight: $24
    SpeedPlay: on orders of
    $249
    $2.99 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Neutrik NC3MX Male XLR Connector (Silver Contacts) Product Description

    The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

    3 pole male cable connector with Nickel housing and silver contacts.

    Same Day Music is an authorized dealer of Neutrik products.

    Neutrik NC3MX Male XLR Connector - Silver Contacts Technical Description

    Product

    Connector Type: XLR

    Gender: male

    Electrical

    Capacitance between contacts: < 4 pF

    Contact resistance: < 3 milliohms

    Dielectric strength: 1,5 kVdc

    Insulation resistance: > 2 gigaohms (initial)

    Insulation resistance: > 1 gigaohm (after damp heat test)

    Rated current per contact: 16 A

    Rated voltage: 50 V

    Mechanical

    Cable O.D.: 3.5 - 8.0 mm

    Insertion force: < 20 N

    Withdrawal force: < 20 N

    Lifetime: > 1000 mating cycles

    Wire size: max. 2.5 mm(2)

    Wire size: max. 14 AWG

    Wiring: Solder contacts

    Locking device: latch lock

    Material

    Boot: Polyuretan

    Bushing: Polyamide (PA6 15% GR)

    Contact plating: 2 micrometers Ag

    Contacts: Brass (CuZn39Pb3)

    Insert: Polyamide (PA 6.6 30 % GR)

    Locking element: St3K32 (latch) / Ck 67 (spring)

    Shell: Zinc diecast (ZnAl4Cu1)

    Shell plating: Nickel

    Strain relief: Polyacetal (POM)

    Environmental

    Approvals: UL

    Flammability: UL 94 HB

    Standard compliance: IEC 61076-2-103

    Protection class: IP 40

    Solderability: Complies with IEC 68-2-20

    Temperature range: -30 degrees C to +80 degrees C

    Manufacturing Standard: IEC 61076-2-103

    Same Day Music is an authorized dealer of Neutrik products.
    Shipping Weights and Dimensions
    Shipping Weight: 1 lbs
    Shipping Dimensions: 3 x 1 x 1 in
