    Neutrik NC3MXB X Series Male XLR Connector, Gold Contacts

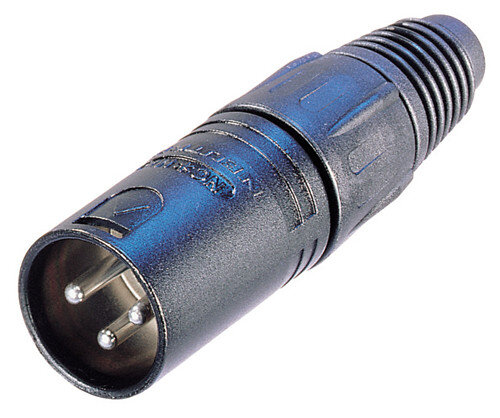

    The Neutrik NC3MXB is a 3 pole male cable connector with black metal housing and gold contacts.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 10 Out of 10 (2 ratings)
    **********

    Neutrik NC3MXB Male XLR Connector (Gold Contacts) Product Description

    The Neutrik NC3MXB is a 3 pole male cable connector with black metal housing and gold contacts. Neutrik is the worldwide accepted standard. Rugged, die-cast shell and compact design (shortest available XLR cable connector). Time-saving assembly: only 4 pieces, no set screws. Neutrik unique chuck-type strain relief. UL recognized component.

    Features:

    - Rugged zinc diecast shell, long lasting and durable
    - Chuck type strain relief system for secure clamping of cables
    - Boot with rubber gland gives high protection against bending stresses
    - Coloured rings and boots available for coding and marking
    - UL recognized components

    Same Day Music is an authorized dealer of Neutrik products.

    Neutrik NC3MXB Male XLR Connector - Gold Contacts Technical Description

    Electrical
    Number of contacts: 3-7

    Contact resistance: = 3 m

    Insulation resistance:
    initial- > 2 G
    after damp heat test: > 1 G

    Dielectric strength: 1500 V dc

    Rated current: 16 I [A], 2.5/14 mm2/AWG, = 4 C

    I ... Rated current per contact
    C ... Capacitance between contacts

    Mechanical
    Lifetime: >1000 cycles

    Insertion / withdrawal force: = 20 N

    Cable O.D. range: 3.5mm-8.0mm (except RC Series)

    Materials
    Shell: ZnAI4Cu1, gal Ni or black Cr over Cu plating

    Insert: PA 6.6 30% GR (glass reinforced)

    Contacts: female (3 pole): CuSn6

    Contact surface: gal 2 micrometers Ag or gal 0.2 micrometers Au hard alloy over 2 micrometers Ni

    Latch lock: St3K32 (latch) / CK 67 (spring)

    Strain-relief clamp: POM

    Antikink bushing: PUR

    Environmental
    Temperature range: -30 degrees C to + 80 degrees C

    Flammability: UL 94HB

    Solderability: complies with IEC 68-2-20

    Same Day Music is an authorized dealer of Neutrik products.
    Shipping Weights and Dimensions
    Shipping Weight: 1 lbs
    Shipping Dimensions: 4 x 4 x 1 in
