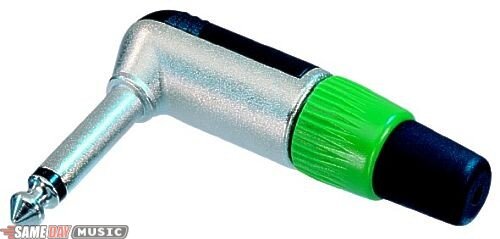

Neutrik NP2RCS Male Mono Right Angle 1/4 in. Connector
Super-slim shape. Diecast shell.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
FIND SIMILAR PRODUCTS
Neutrik NP2RCS Male Mono Right Angle 1/4 in. Connector Product Description
Same Day Music is an
authorized Neutrik dealer
The Neutrik NP2RCS features "the lifetime plug" Diecast shell, Neutrik's unique chuck-type strain relief with PU-sleeve for optimal cable protection. This is the right-angle version with super-slim shape, sleeve contact and shell in one piece. authorized Neutrik dealer
Same Day Music is an authorized dealer of Neutrik products.
Neutrik NP2RCS Technical Description
Electrical
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance - initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength: 1 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm squared / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20
Shell ZnAl4Cu1, Ni or black Cr plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20 degrees C to +65 degrees C
Compatibility / Remarks
NP2C with built-in 1:10 transformer to convert mic level to guitar inputs: add suffix "T10AA"
Compatibility: EIA RS-453/IEC 60603-11
Same Day Music is an authorized dealer of Neutrik products.
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance - initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength: 1 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm squared / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20
Shell ZnAl4Cu1, Ni or black Cr plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20 degrees C to +65 degrees C
Compatibility / Remarks
NP2C with built-in 1:10 transformer to convert mic level to guitar inputs: add suffix "T10AA"
Compatibility: EIA RS-453/IEC 60603-11
Same Day Music is an authorized dealer of Neutrik products.
