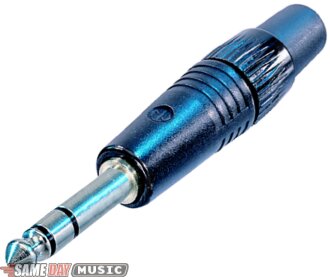

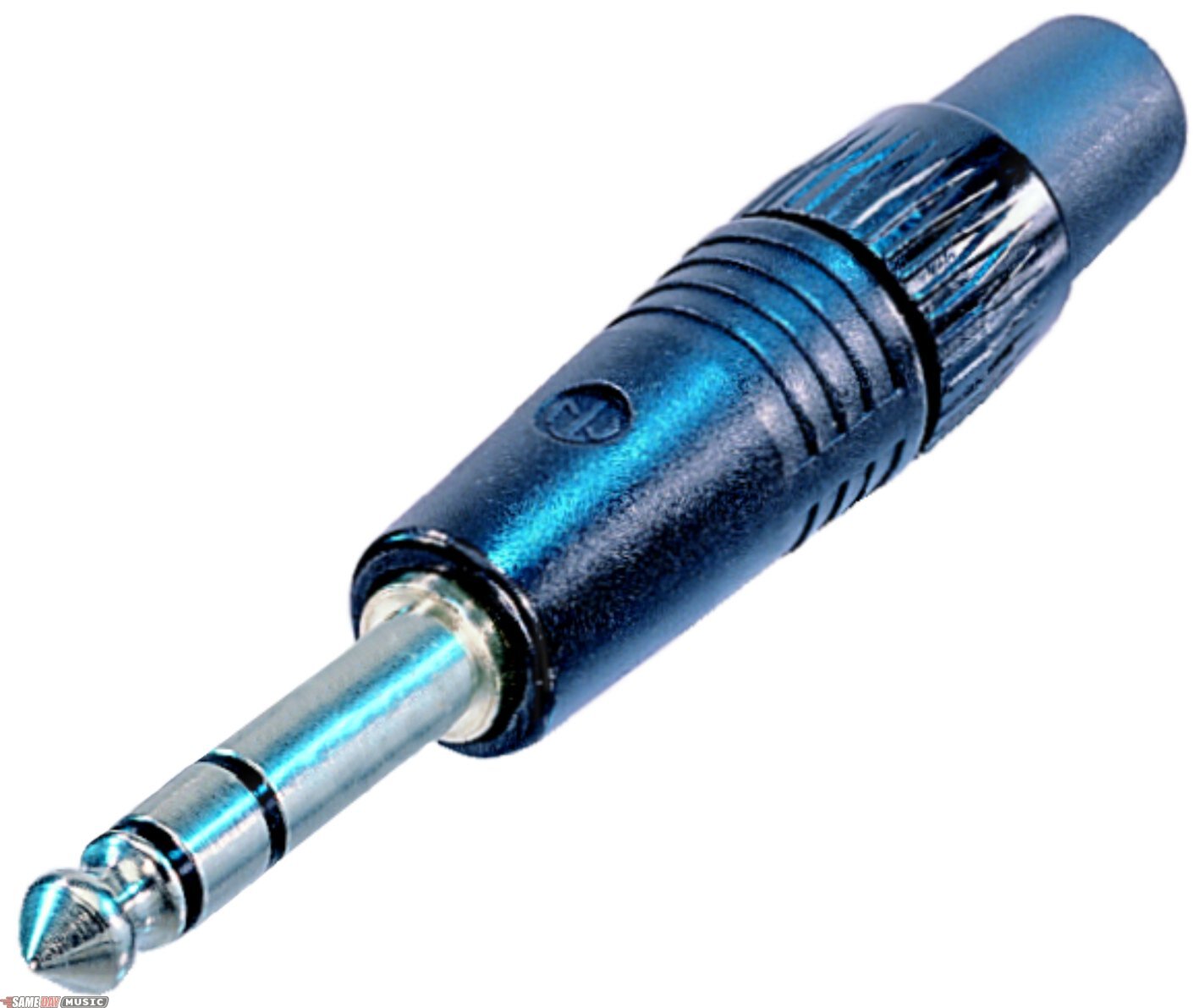

    Neutrik NP3CBAG 1/4-inch Male TRS Stereo Connector

    1/4" professional phone plug. All metal, no rivets. 3-pole.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 10 Out of 10 (1 rating)
    **********

    Neutrik NP3CBAG 1/4" Male TRS Stereo Connector Product Description

    "The lifetime plug." Die-cast shell and Neutrik unique chuck-type strain relief with PU-sleeve for optimal cable protection.

    Same Day Music is an authorized dealer of Neutrik products.

    Neutrik NP3CBAG 1/4 in. Male TRS Stereo Connector Technical Description

    Electrical
    Rated current: depends on mating connector

    Contact resistance: depends on mating connector

    Insulation resistance:
    - initial: > 2 G
    - after damp heat test: = 1 G

    Dielectric strength:
    2-pole: 1.5 kV dc
    3-pole: 1 kV dc

    Mechanical
    Wiring: solder terminals

    Wire size: 1 mm2 / AWG 18

    Cable O.D.: 4-7 mm

    Solderability: complies with IEC 68-2-20

    Materials
    Shell ZnAI4Cu1, Ni or black Cr plated- RCS: only Ni plated / PA6 50% GR

    Insulation: PA 6.6 30% GR

    Contacts: CuZn39Pb3, 2 micrometeres Ni (Su) plated

    Chuck: POM

    Bushing: POM + PU

    Temperature range: -20 degrees C to +65 degrees C

    Same Day Music is an authorized dealer of Neutrik products.
