Product Description

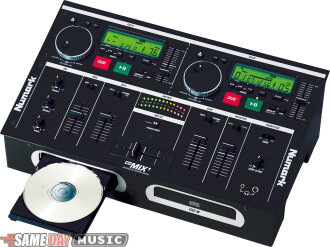

A combination dual CD player and mixer designed specifically for the professional DJ. The CD MIX-1 was designed to provide portable CD mixing with the same ease and creativity that you have enjoyed with records. CD features include mechanical anti-show, CD and CDR disc compatibility so you can play your home-burned CDs, auto dead-space elimination and 12 in. pitch control. The mixer section has 2 external Phono/Line inputs, a mic input and 3-band EQ. 1-year warranty.

CD Section Features:
2 independent CD units

Mechanical Anti-Shock

Ability to play 3 in. and 5 in. CDs

Plays CD and CDR (recordable CDs)

Pitch/Jog Wheel for both setting cue points and adjusting tempo

3 search speeds

Large back lit LCD Display

Track sequence programming

Time button with elapse and remain time bar

Single/Continuous modes

Pitch percentage display

+/- 12% pitch adjustment

Auto dead space elimination

Ability to autostart player with use of the crossfader

BPM counter

Mixer Section Features:
External input for 2 Phono or 2 Line inputs

Master balanced/unbalanced and record output

Direct input for onboard CD units

Input for External Microphone with independent gain control

Crossfader to blend between 2 Channels and control Auto start of the CD units

3-band Equalizer for master output

Dual Band, 12-segment LED output display

Fader CD Start button

Headphone output for 1/4 in. and 1/8 in. style plugs with the ability to cue any channel

12VDC power input to allow car battery usage

Technical Description

CD Players
Quantization: 16-bit linear/channel, 3 beam laser

Oversampling rate: 8 times

Short access time (Play next track): Less than 1.7 seconds

Long access time (Track 1 ->Track 20): Less than 3 seconds

Start Time: less than 0.3 seconds

Pitch control range: +/-12%

Pitch bend: +/-16%

Overall
Frequency Response
CD: 20 - 20KHz +1,-2dB
LINE 20: - 20KHz +1,-1.5dB
PHONO 20 - 20KHz +2,-2.5dB/RIAA
MIC 33 - 15KHz +1,/-3dB

S/N Ratio: (IEC-A Weighted)
CD/LINE: More than 85dB
PHONO: More than 75dB
MIC: More than 70dB

Total Harmonic Distortion
CD/LINE: Less than 0.05%( 20KHz LPF)
PHONO: Less than 0.12%
MIC: Less than 0.12%
PHONES (32 0HM) Less than 0.25%

Crosstalk
CD: More than 60 dB AT 1KHz
Line/Phono: More than 55 dB AT 1KHz

Equalizer
LOW: +/- 12 dB (100Hz)
MID: +/- 12 dB (1KHz)
HI: +/- 11.5 dB (10KHz)

Power Requirements DC 12V, 2.5A

Dimensions: 17 1/2"(W) x 10"(D) x 6 3/16"(H); 445mm(W) x 255mm(D) x 157mm(H)

Weight: 11.5lbs.; 5.2Kgs

Catalog Description

Combination dual CD player and mixer@2 independent CD players@Mixer with cross-fader@Mic input
