Product Description

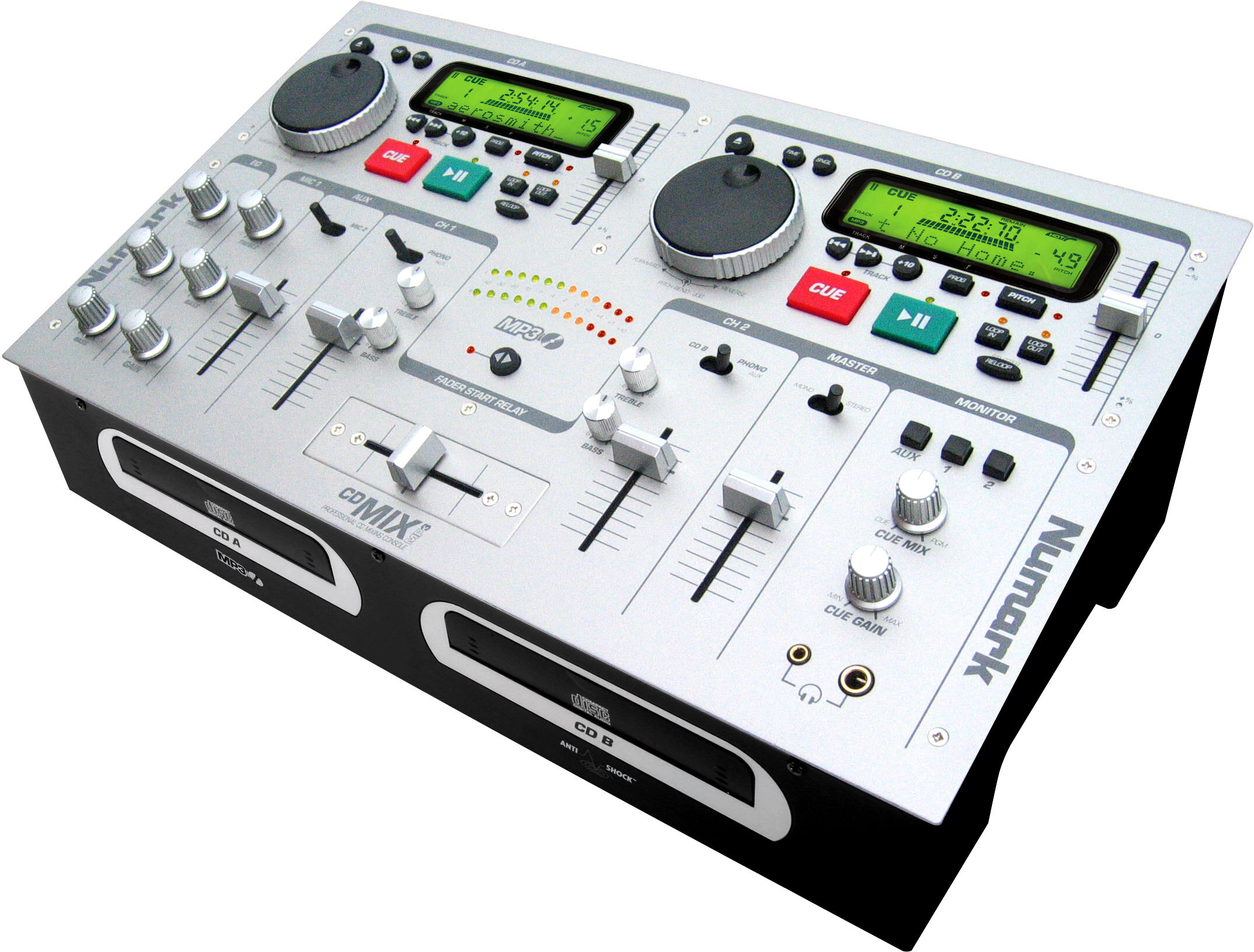

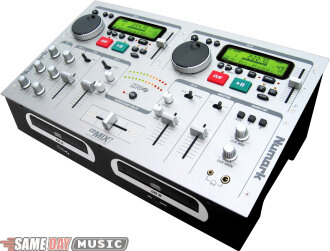

Designed expressly for mobile DJs and club owners in search of a compact, highly portable system that sets up and packs away on a moment's notice, the CDMIX3 plays both standard CD audio and MP3 CDs, provides buffered Anti-Shock in. memory protection, delivers seamless looping, and pitch control with a pitch bend wheel among its wealth of features.

Features:
Support for standard audio CDs and MP3 CDs

Buffered Anti-Shock in. memory protection for consistent playback under trying conditions

Seamless loops for both CD audio and MP3 files

True buffered instant start

Stutter start capability with settable stutter points

12% pitch bend capability via its pitch bend/jog wheel

Master EQ section and individual channel EQ

Technical Description

Power Source: DC 12V, 2.5A

Dimensions: 445 x 258 x 156 (W x D x H)

Audio Characteristics: (Load=47K OHM For Master Output)

1 Input Terminal (Input Level/Impedance)
CD: -14dBV/5K OHM ?2db TCD-782 (Track 16)

Line1: -14dBV/10K OHM 2db

Line 2,3: -14dBV/47K OHM 2db

Phono: -50dBV/47K OHM 2db

Mic: -53dBV/2.2K OHM 2db

Note: 0dBV=1 Vrms.

Master is set to 0dBV output

2 Output Terainal (Output Level/Impedance)
Master Out (RCA)- 0dBV (1.0V)/600 OHM

Master Out (XLR)- 0dBV (1.0V)/470 OHM 2dBV

Phones (Load=32 OHM)- -6dBV (0.5V)/33 OHM 2dBV

Max Output (THD=5%)

Master- More Than +17dBV (7V)

Phones- (Load=32 OHM)- More Than +5dBV (1.8V)

Channel Balance- Within 3dB

Frequency Response
CD/Line: 20-20KHz +1, -1.5dB

TCD-782 (Track 3, 7)

Phono: 20-20KHz +2, 2.5dB/RIAA

Mic: 20-20KHz +1, /-3dB

Output Noise (W/ 20KHz LPF and IEC-A Weighted)
Line: Less Than -75dB

Phono: Less Than -60dB

Mic: Less Than -55dB

CD S/N Ratio: More Than 80dB

Note: CD 0dB Output,

Master is set to 0dBV Output

Total Harmonic Distortion: From Master Out
CD/Line: Less Than 0.05%

Phono/Mic: Less Than 0.13%

Note: Output=0dBV,1KHz. With 20KHz LPF
and 200Hz HPF.

Catalog Description

One-piece DJ setup@2 CD/MP3 disk decks and a mixer@Anti-shock buffer memory, seamless looping, and pitch control@2-band channel EQ plus master EQ
