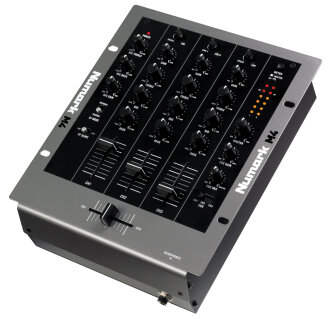

Numark M4 3-Channel Tabletop DJ Mixer

The Numark M4 3-Channel DJ Mixer is a three-channel tabletop mixer designed for any DJ who needs maximum flexibility. It features a replaceable crossfader with reverse and slope controls, a 1/4 inch microphone input with EQ, and plenty of routing for phono and line level devices.

Where you really see what the M4 can do is in its impressive input section. Two, switchable phono/line inputs plus four more dedicated line inputs give you a total of SIX inputs! Add Master and Record outputs, and steep three-band EQ/rotary kills on each channel, and you've a powerhouse package that's ready to handle whatever the gig throws at you.

M4 has the inputs, controls, and features to turn what would be a problem for the average mixer into a simple plug-in. Don't get stuck without enough inputs at your next gig. Upgrade to M4 - you'll be glad you did!

Features
Three-channel tabletop mixer

Inputs: two phono/line switchable (RCA), four line (RCA), mic (1/4 inch)

Outputs: Master (RCA), Record (RCA), headphone (1/4 inch stereo)

Steep three-band EQ/rotary kills on each channel

Microphone input with EQ

Six-segment LED display for monitoring signal strength

Toggle for master and PFL metering

Replaceable crossfader with reverse and slope controls

Same Day Music is an authorized dealer of Numark products.

Inputs:
- Line: 10K ohm input impedance; 80mV RMS sensitivity for 0dB output
- Mic: 600 ohm input impedance unbalanced; 1.5mV RMS sensitivity for 0dB output; 400mV RMS max input
- Phono: 47k ohm input impedance; 1.3mV RMS sensitivity @ 1kHz for 0dB output

Outputs:
- Line: 7V RMS max
- Headphone: 0.5W into 47ohm

Signal to Noise Ratio (maximum output JIS-A weighted):
- Line: Better than 100dB
- Mic: Better than 95dB
- Phono: Better than 85dB

Distortion: Less than 0.05%

Frequency response:
- Line: 20 - 20,000 Hz +/-0.5dB
- Mic: 20 - 15,000 Hz +/-0.5dB
- Phono: +/-1dB; -3dB attenuation at 20 Hz to reduce rumble and feedback

Channel Equalizer:
- Bass: +12 / -35dB at 20 Hz
- Mid: +12 / -25dB at 1.3 kHz
- Treble: +12 / -20dB at 15 kHz

Channel fader kill: Better than 90dB at 1 kHz

Crossfader kill: Better than 75dB

Crosstalk: Better than 80dB at 1 kHz

Same Day Music is an authorized dealer of Numark products.

Shipping Weights and Dimensions

Shipping Weight: 8 lbs

Shipping Dimensions: 15 x 14 x 7 in
