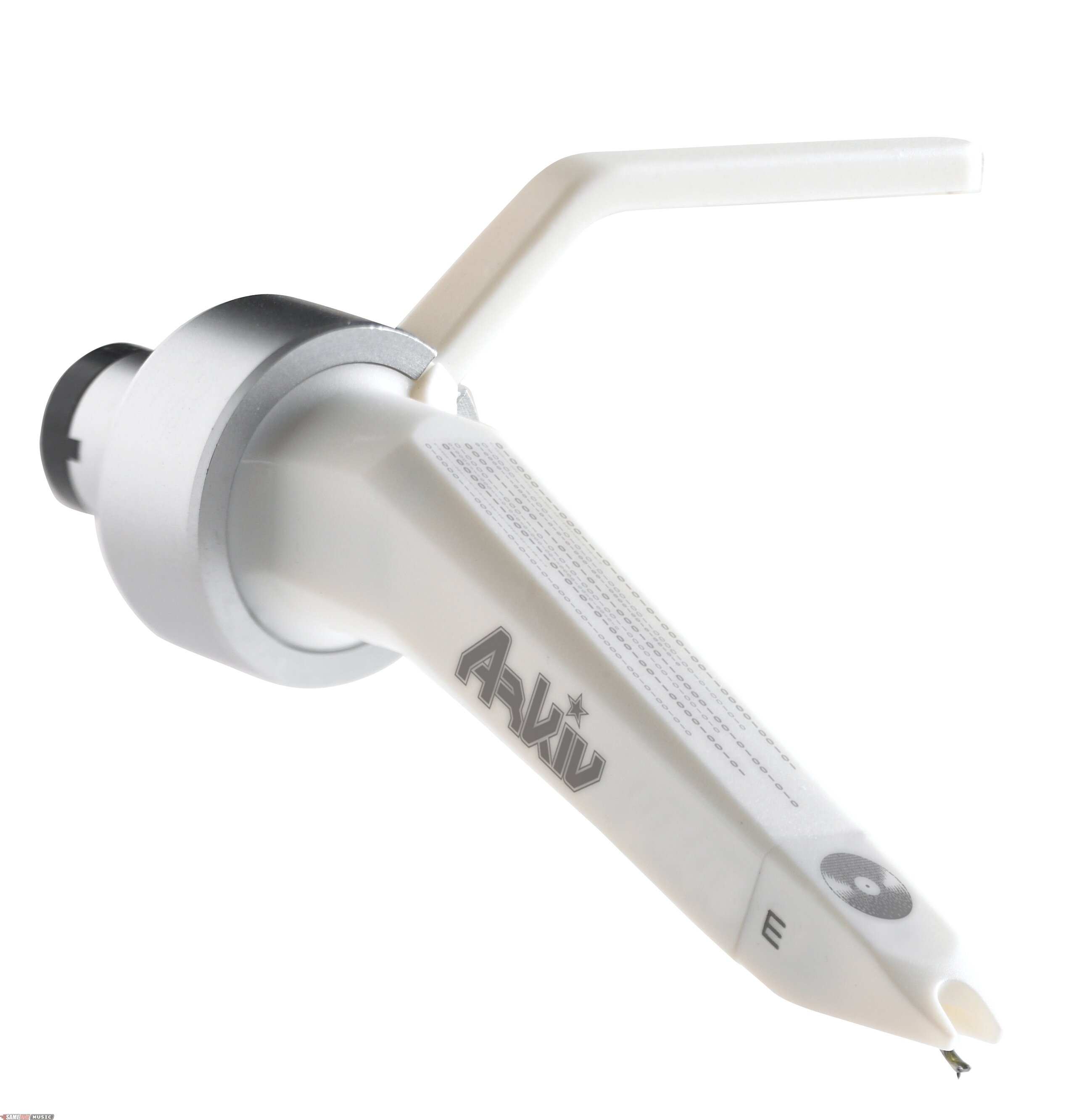

Ortofon Concorde Arkiv Cartridge Product Description
Same Day Music is an
authorized Ortofon dealer
Growing demand for the ability to transcribe vinyl to digital formats has prompted the creation of the Arkiv- a cartridge specially designed to provide optimized sound quality specifically for recording purposes. The Arkin boasts clear and accurate sound reproduction and remarkable stereo imaging, making it perfectly suited for sampling, transcription and numerous other professional applications. The Arkiv ships with an elliptical stylus, for more detailed sound reproduction. authorized Ortofon dealer
Same Day Music is an authorized dealer of Ortofon products.
Ortofon Concorde Arkiv Technical Description
Output voltage at 1000Hz, 5cm/sec.: 6mV
Channel balance at 1kHz: 2 dB
Channel Separation at 15kHz: 15 dB
Frequency Range at -3 dB: 20-20,000Hz
Frequency Response: 20-20,000Hz - +/-2 dB
Tracking Ability at 315Hz at recommended tracking force: 80 um
Compliance, dynamic, lateral: 9 um/mN
Tracking force range: 2,0-4,0g (20-40mN)
Tracking force recommended: 3,0g (30mN)
Tracking Angle: 20 degrees
Internal Impedance, DC resistance: 750 ohm
Internal Inductance: 450mH
Recommended Load Resistance: 47 kOhm
Recommended Load Capacitance: 200-600 pF
Cartridge Weight: 5g
Replacement Stylus unit: Arkiv
Same Day Music is an authorized dealer of Ortofon products.
Channel balance at 1kHz: 2 dB
Channel Separation at 15kHz: 15 dB
Frequency Range at -3 dB: 20-20,000Hz
Frequency Response: 20-20,000Hz - +/-2 dB
Tracking Ability at 315Hz at recommended tracking force: 80 um
Compliance, dynamic, lateral: 9 um/mN
Tracking force range: 2,0-4,0g (20-40mN)
Tracking force recommended: 3,0g (30mN)
Tracking Angle: 20 degrees
Internal Impedance, DC resistance: 750 ohm
Internal Inductance: 450mH
Recommended Load Resistance: 47 kOhm
Recommended Load Capacitance: 200-600 pF
Cartridge Weight: 5g
Replacement Stylus unit: Arkiv
Same Day Music is an authorized dealer of Ortofon products.
