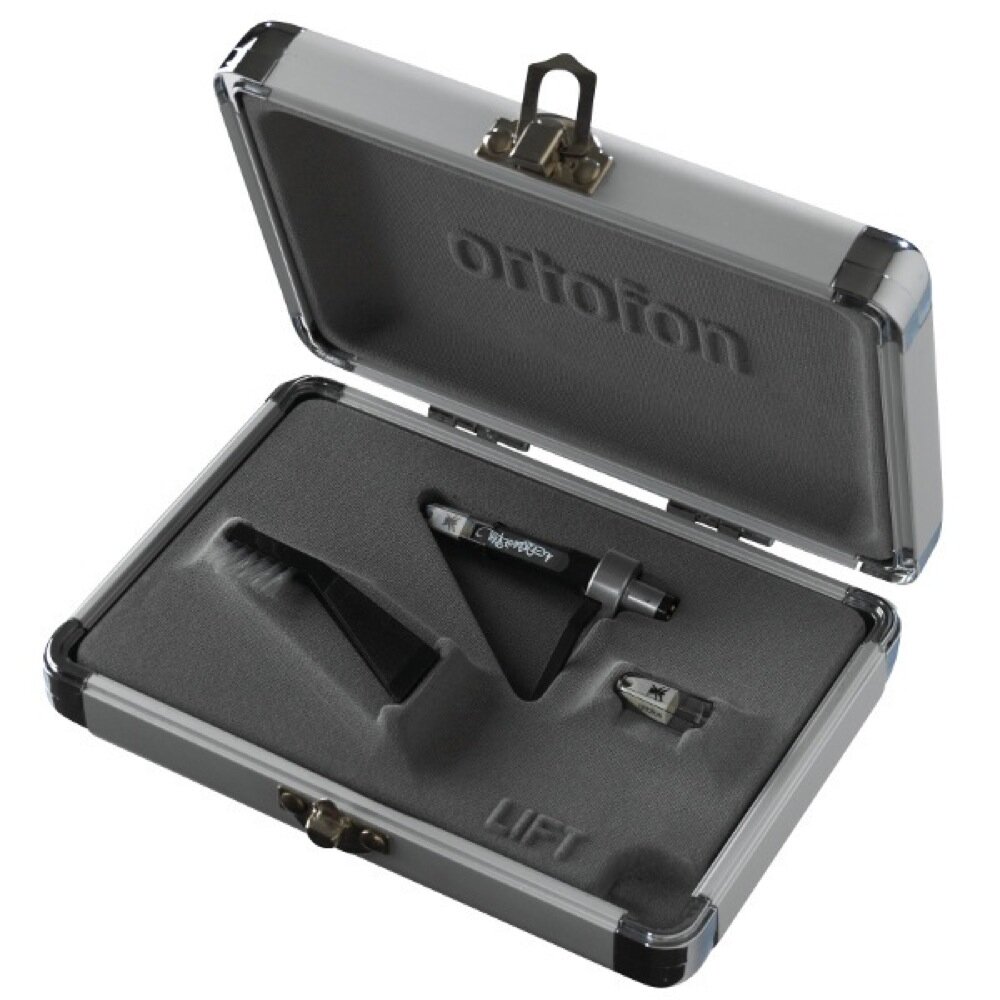

    Ortofon Concorde QBert DJ Turntable Cartridge Package

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Ortofon Concorde QBert DJ Turntable Cartridge Package Product Description

    The Ortofon Q.Bert features a more subdued high end, which helps to minimize surface noise from worn vinyl, and an accentuated mid-range to help bring scratching to the front of the sound stage. Turntablists and mix DJs alike will appreciate the strong output of this cartridge, coupled with unrivaled tracking ability and sonic characteristics.

    Co-developed by one of the most legendary DJs of all time, the Ortofon Q.Bert provides unsurpassed handling, high output voltage, and low wear characteristics that literally put it in a class of its own.

    Same Day Music is an authorized dealer of Ortofon products.

    Ortofon Concorde QBert DJ Turntable Cartridge Package Technical Description

    - Output voltage at 1000Hz, 5cm/sec.: 11 mV
    - Channel balance at 1kHz: 1,5 dB
    - Channel separation at 1kHz: 22 dB
    - Channel separation at 15 kHz: -
    - Frequency range at -3dB: 20-18.000 Hz
    - Frequency response: 20-18.000 Hz -3 dB
    - Tracking ability at 315 Hz at recommended tracking force: 90 um
    - Compliance, dynamic lateral: 12 um/mN
    - Stylus type: Spherical
    - Stylus tip radius: R 18 um
    - Tracking force range: 2,0-4,0 g (20-40 mN)
    - Tracking force recommended: 3,0 g (30 mN)
    - Tracking angle: 20 degrees
    - Internal impedance, DC resistance: 1.680 ohm
    - Internal inductance: 920 mH
    - Recommended load resistance: 47 kOhm
    - Recommended load capacitance: 200-400 pF
    - Cartridge weight: 18,5 g
    - Replacement stylus unit: Q.Bert
