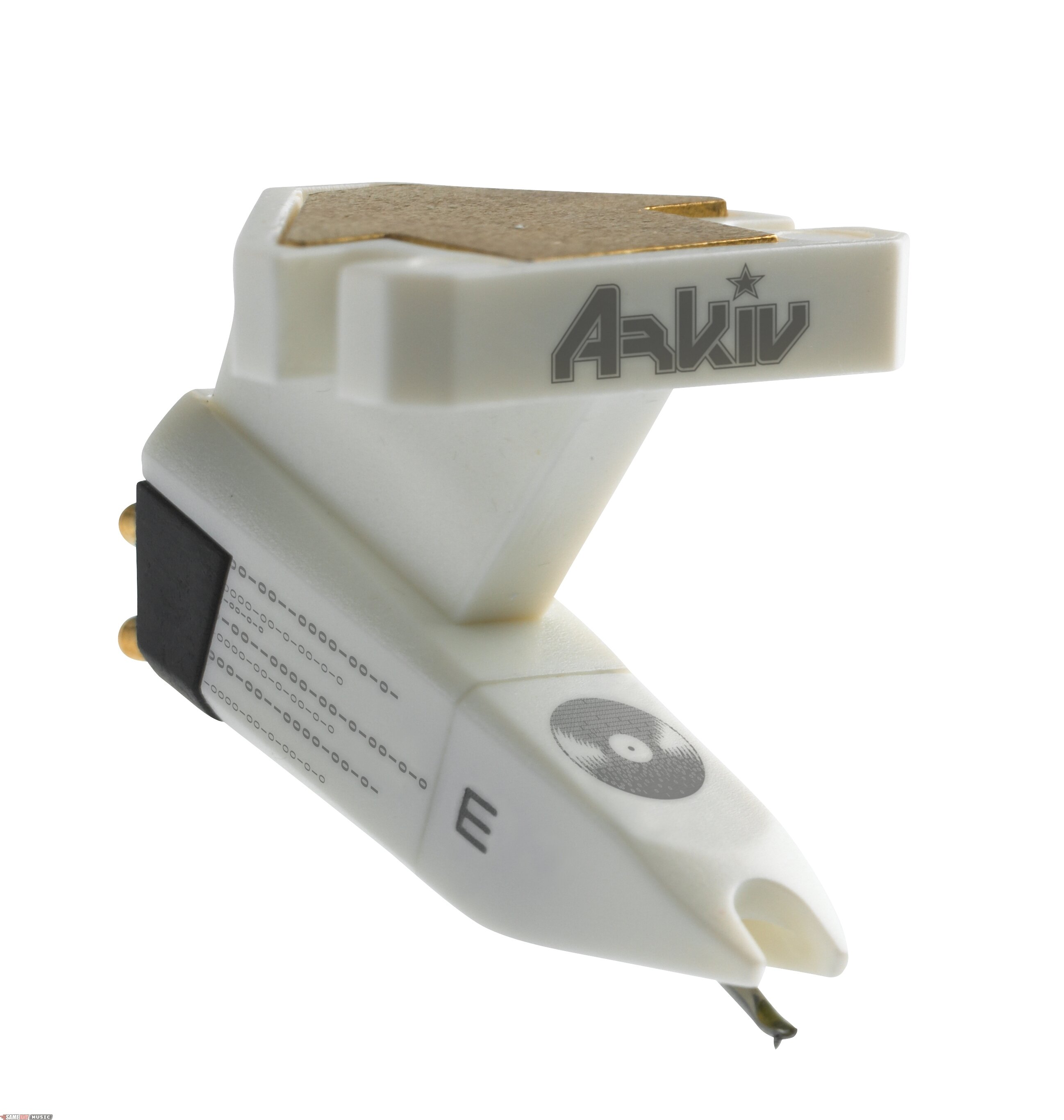

Ortofon OM Arkiv Single Cartridge
Archival quality cartridge.
All instrument parts cannot be returned once opened due to the possibility they have been used. This includes all guitar, amplifier, and turntable parts.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
PRODUCT DESCRIPTION
The Ortofon OM Arikiv Cartridge answers the demand from DJs who want a cartridge that will translate that vinyl sound when recording to a digital format. The OM Arkiv Cartridge is specially designed to provide optimized sound quality specifically for recording purposes.
TECHNICAL DESCRIPTION
Output voltage at 1000Hz, 5cm/sec: 6mV
Channel balance at 1kHz: 2 dB
Channel separation at 1kHz: 23 dB
Channel separation at 15kHz: 15 dB
Frequency range at -3 dB: 20-22,000 Hz
Frequency response: 20-20,000 Hz
Stylus type: Special Elliptical
Tracking force range: 2.0-4.0 g
Tracking force recommended: 3.0 g
Tracking angle: 20 degrees
Internal impedance, DC resistance: 750 Ohm
Internal Inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 18.5 g
Channel balance at 1kHz: 2 dB
Channel separation at 1kHz: 23 dB
Channel separation at 15kHz: 15 dB
Frequency range at -3 dB: 20-22,000 Hz
Frequency response: 20-20,000 Hz
Stylus type: Special Elliptical
Tracking force range: 2.0-4.0 g
Tracking force recommended: 3.0 g
Tracking angle: 20 degrees
Internal impedance, DC resistance: 750 Ohm
Internal Inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 18.5 g
