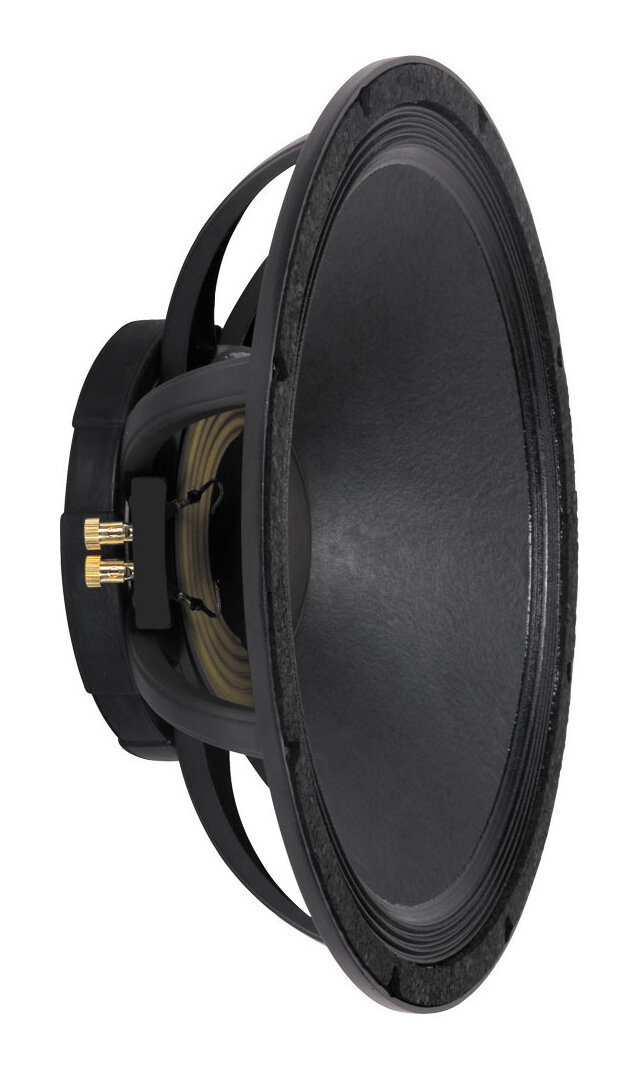

    Peavey HE BWX Subwoofer Raw Speaker

    The Peavey HE BWX high power 15 inch subwoofer trades deep bass for extreme high efficiency.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 12GD-VGYG

    Web Item #PEVHEBWXLF

    Peavey HE BWX LF Raw Speaker

    More Resources

    Peavey Warranty: If you have additional warranty questions, please call the manufacturer at 877-732-8391
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Today
    •
    • 2 Day: $14
    • Overnight: $48
    SpeedPlay: on orders of
    $249
    $160 Seen a lower price?
    This product ships to: Can ship to United States

    This item must be exchanged directly through the manufacturer if it is found to be defective, and can only be returned to us if it is unopened.

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Peavey HE BWX Subwoofer Raw Frame Speaker Product Description

    The Peavey HE BWX high power 15 inch subwoofer trades deep bass for extreme high efficiency. Ideal for 2-way applications that do not require extended bass response and excels as a midbass driver in 3 or 4 way designs that include a dedicated subwoofer like the Peavey 18 inch Low Rider.

    Same Day Music is an authorized dealer of Peavey products.

    Peavey HE BWX LF Raw Frame Speaker Technical Description

    Size: 15-inch

    Impedance: 8 Ohms

    Power capacity: 2000 W Peak 1000 W Program 500 W Continuous

    Sensitivity: 100.3 dB / 1 W 1 m

    Usable freq. range: 40 Hz ~ 2 kHz

    Cone: Kevlar(R) impregnated cellulose

    Voice coil diameter: 4.0-inch / 100 mm

    Voice coil material: Aluminum ribbon wire Polyimide-impregnated fiberglass former Nomex stiffener Solderless diffusion welded OFHC copper leads

    Net weight lb. / kg: 17 lbs. / 7.7 kg

    Znom (ohms): 8

    Revc (ohms): 5.32

    Sd (Square Meters): 0.084

    BL (T/M): 16.04

    Fo (Hz): 51.2

    Vas (liters): 182.4

    Cms (uM/N): 182.0

    Mms (gm): 52.9

    Qms: 10.604

    Qes: 0.352

    Qts: 0.341 Xmax: (mm) 1.9

    Le (mH): 0.34

    SPL (1W 1m): 100.3

    No (%): 6.70%

    Vd (cu. in. / ml): 19.5 / 319

    Pmax (Watts pgm.): 1000

    Disp (cu. in. / ml): 197/ 3229

    Same Day Music is an authorized dealer of Peavey products.
    Shipping Weights and Dimensions
    Shipping Weight: 20 lbs
    Shipping Dimensions: 19 x 18 x 7 in
