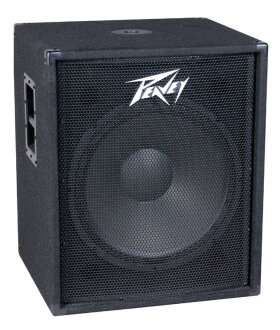

Peavey PV118 Subwoofer (1x18 in.)

400 Watts, 8 ohm

Product rated 8.0 out of 10 (20 ratings)::: ::: ::: ::: ::: ::: ::: ::: .  .  Read 2 Full Reviews >>

 New $250

Seen a lower price?

Guaranteed Same Day Will Ship Wednesday
  • Ground: free ground shipping

60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

We DO NOT COLLECT TAX except on orders shipped to New Jersey.

category graphic

preview image

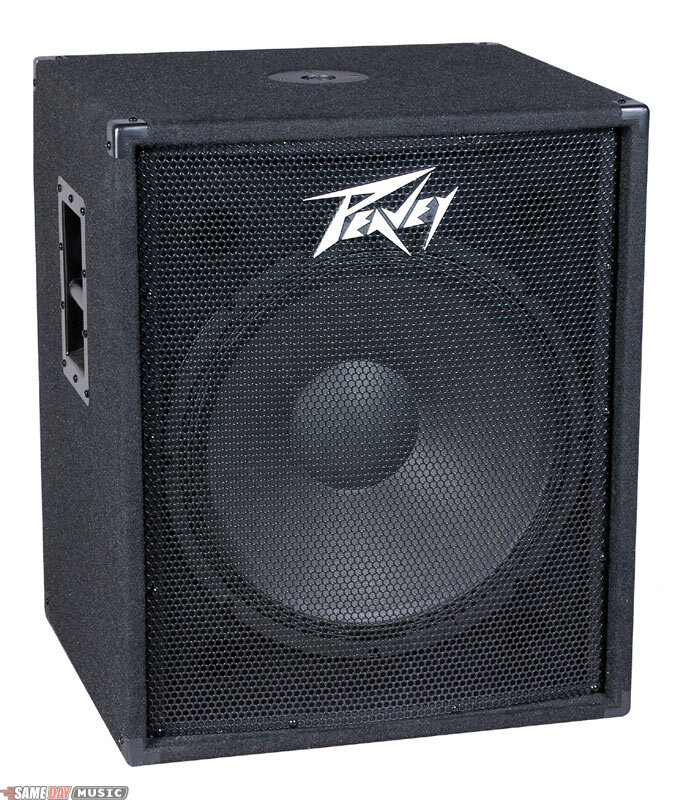

View larger image
ADDITIONAL VIEWS:
  • Main

  • Rear Panel

MORE RESOURCES:

Product Documents:

PRODUCT DESCRIPTION

The Peavey PV 118 represents an incredible price on a high powered, high SPL single 18 inch subwoofer! The PV 118 handles 400 watts (program) and is rated with an impressive 118dB SPL rating.

Features
Vented bass subwoofer enclosure

Pro Eighteen 18 inch premium woofer

Optimized internal low-pass crossover network

Pole mount adapter

400 Watts program power handling

40 Hz - 180 Hz (+/- 3dB)

95 dB at 1W/1m

8 Ohms

Dado jointed 3/4 inch MDF construction

Heavy-duty, powder-coated metal grille

TECHNICAL DESCRIPTION

Frequency Range (-10 dB, half space): 38 Hz to 500 Hz

Frequency Response (+/- 3 dB anechoic): 40 Hz to 180 Hz

Sensitivity (1 Watt/1 meter): 95 dB

Power Rating (program): 400 Watts

Peak Power Capacity: 800 Watts

Maximum SPL: 118 dB

Transducer Complement: 18" Heavy duty woofer with 3" voice coil and 65 oz. magnet

Box Tuning Frequency: Low frequency section: 46 Hz

Recommended Infrasonic Filter Frequency: 40 Hz, at a minimum of 18 dB/octave roll-off

Recommended Crossover Frequency: 150 Hz or less

Nominal Impedance (Z): 8 Ohms Input Connections: Two 1/4" phone jacks in parallel

Enclosure Materials and Finish: MDF covered in black carpet

Dimensions (H x W x L): 27.00 x 21.88 x 19.63 in.

Weight: 73 lbs.

CATALOG DESCRIPTION

Rugged subwoofer for hugh low end at high volume@18" speaker in vented 3/4" MDF enclosure@Internal low-pass crossover@Handles 400 watts program at 8 ohms@1/4" connectors
