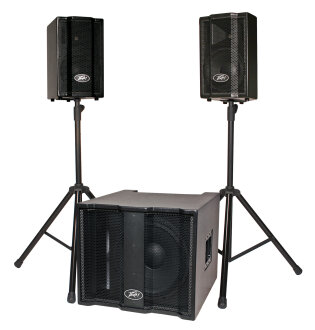

Peavey Triflex II Sound System, Portable

Same Day Music is an
authorized Peavey dealer

Features

- 1000-watt Active Two-Channel Three-piece Speaker System

- One shared Subwoofer cabinet which houses the inputs and power amps

- Two two-way Satellite speakers with speaker pole stand adaptors

- Subwoofer has 15-inch woofer, with 500-watt peak available power

- Satellite speakers have 10-inch woofer, RX 14 1.4-inch compression driver tweeter

- 250-watt peak available power to each Satellite speaker

- Peavey's exclusive DDT compression on the Satellite power amps

- System comes with two 15 foot speaker cables

- Protective slipcover with cable storage pockets and built-in Velcro retaining straps

- Heavy-duty locking casters on Subwoofer cabinet for transport of system

- Satellite speakers nest on top of the Subwoofer, help ease transport

- Four-pin twist-lock connectors on amplifier outputs and Satellite inputs

- Subwoofer:

- Transducer complement: 1 x 15 in. woofer, custom heavy-duty

- Nominal Impedance: 8 ohms

- Power Handling, Transducer:

- 350W Continuous

- 700W Program

- Box tuning frequency (Fbox): 48 Hz

- Frequency Response, 1 meter on-axis, swept-sine in anechoic environment (thrusystem electronics): 40 Hz to 105 Hz

- Usable low frequency limit (-10 dB point): 34 Hz

- Sound Pressure Level, 1 Watt, 1 meter in 1 / 2 space environment: 102 dB

- Maximum Sound Pressure Level (1 meter, 1 / 2 space): 127 dB

- Weight: 98 lbs. (44.5 kg)

- Dimensions (H x W x D): 19.65 X 28.00 X 28.10 in. (Includes feet)

- Height in Transport mode: 32.00 in.

- Satellite Speakers:

- Low Frequency Section: 1 x 10 in. woofer, custom heavy-duty

- High Frequency Section: 1 x 1.4 in. titanium compression driver on a Quadratic Throat Waveguide with 75 degrees by 75 degrees coverage pattern

- Nominal Impedance: 4 ohms

- Power Handling, Satellite System:

- 200W Continuous

- 400W Program

- 800W Peak

- Box tuning frequency (Fbox): 84 Hz

- Frequency Response, 1 meter on-axis, swept-sine in anechoic environment: 88 Hz to 20 kHz

- Sound Pressure Level, 1 Watt, 1 meter in 1 / 2 space environment: 101 dB

- Maximum Sound Pressure Level (1 meter, 1 / 2 space): 124 dB

- Weight: 24 lbs. (10.9 kg)

- Dimensions (H x W x D): 19.6 X 11.83 X 11.83 in.(Upright, Includes feet)

- Complete System:

- Active Crossover Frequency: 120 Hz, 24 dB/Octave

- Maximum Sound Pressure Level (1 meter, half-space): 129 dB

- Dimensions when in transport orientation, on casters (H x W x D): 43.00 X 20.37 X 23.54 in. (Includes all feet)

- Weight (Sub and Satellites Only): 146 lbs. (66.4 kg)

- Speaker Cables: Two 15 foot 16 ga. With 4-pin twist-lock connectors on each end

- Internal Amplifier Specifications:

- Subwoofer Amp Power Output:

- 500W peak available power

- 250W continuous, into 8 ohms

- Satellite Amps Power Output:

- 250W peak available power

- 125W continuous, into 4 ohms

- Inputs (Line Level): XLR or 1 / 4 in. phone jack combo input (female) x 2

- Input Impedance: 20 k Ohms balanced, 10 k Ohms unbalanced (single-ended)

- Thru (Outputs, Line Level): XLR full-range output (male) x 2

- Speaker Level Outputs: 4-pin twist-lock professional connector Output x 2

- Controls:

- Master System Level (Left & Right Gain)

- Subwoofer Level Control

- Ground Lift Switch

- Power Switch (On rear of amp panel when the Subwoofer is in use position, with rubber feet on the floor)

- Nominal amplifier frequency response: +0, -2 dB from 10 Hz to 20 kHz

- Hum and noise: Greater than 90 dB below rated power

- DDT dynamic range: Greater than 18 dB

- THD: Typically less than 0.05 %

- Infrasonic filter protection: 36 dB/octave roll-off

- Power Requirements: Domestic 120VAC, 60 Hz, 210 Watts

Same Day Music is an authorized dealer of Peavey products.

Shipping Weights and Dimensions

Shipping Weight: 200 lbs

Shipping Dimensions: 50 x 30 x 26 in
