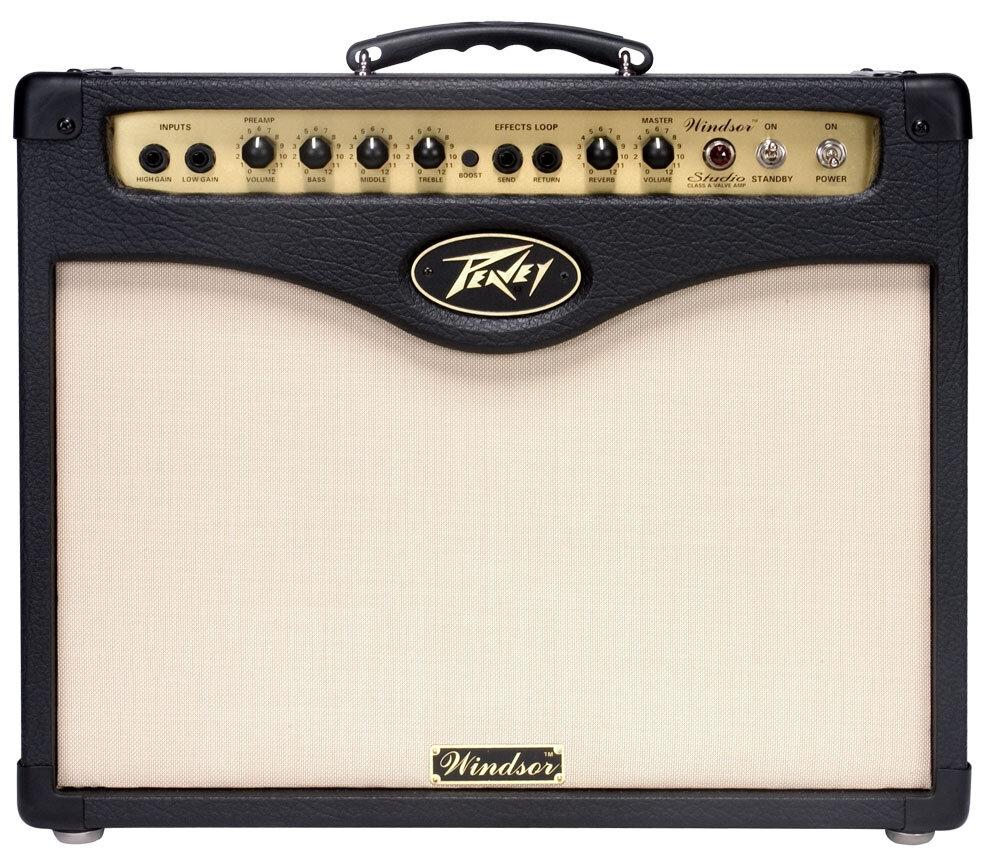

    Peavey Windsor Studio Guitar Amplifier, 20 Watts, 1x12 Inch

    Foot-switchable Boost button. Blue Marvel speaker. Spring Reverb.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9.2 Out of 10 (1 rating)
    *********.*

    Peavey Windsor Studio Guitar Combo Amplifier (20 Watts, 1x12") Product Description

    The single-channel Windsor Studio features a footswitchable Boost button, which increases the preamp level to allow the flexibility of a dual-channel amp plus control over the dynamic response and rich distortion characteristics of its class-A tube power topology. The Boost function can be used as an overdrive feature for the power section or simply as a volume boost for soloing. This 15-watt amplifier uses two 12AX7 preamp tubes and one EL34 power-amp tube in a single-ended configuration with no negative feedback. The power section is designed to accommodate 6L6GC, 6550, 6CA7, KT88 and KT66 octal power tubes, as well as variations on those types.

    Peavey's exclusive new Power Sponge output attenuator incrementally adjusts the power output of the amplifier while maintaining the distortion characteristics of the power amp at any chosen volume level. Also onboard is a transformer-balanced XLR direct output with a unique microphone simulator that allows players to send the amplifier signal to a recording device or front-of-house mix without the use of a microphone. Additional features include true spring reverb, preamp volume, master volume, three-band tone equalization, footswitchable effects loop and a single 12-inch loudspeaker.

    Same Day Music is an authorized dealer of Peavey products.

    Peavey Windsor Studio Guitar Combo Technical Description

    Class A Power Amp can use various octal power tubes including EL34 (stock), 6L6GC, 6550, 6CA7, KT88, KT66, or any variation on these types

    Two 12AX7/ECC83 Preamp tubes

    15-20W (RMS) into 4, 8, or 16 Ohms with "Power Sponge" output power attenuator

    No negative feedback in Power Amp

    High & Low Gain Inputs

    Preamp Volume

    Low, Mid, and High EQ

    Footswitchable Boost function

    Footswitchable Effects Loop

    Spring Reverb

    Transformer balanced XLR Recording Output w/passive mic simulator

    XLR Ground Lift switch

    Dual Speaker Outputs

    Impedance Selector

    1/4 in. TRS footswitch jack for Boost and Loop defeat

    12 in. Blue Marvel Speaker

    Weight Unpacked: 37

    Width Unpacked: 21.125

    Depth Unpacked: 10.25

    Height Unpacked: 18.375

    Weight Packed: 41.3

    Width Packed: 25

    Depth Packed: 14.125

    Height Packed: 21.375
