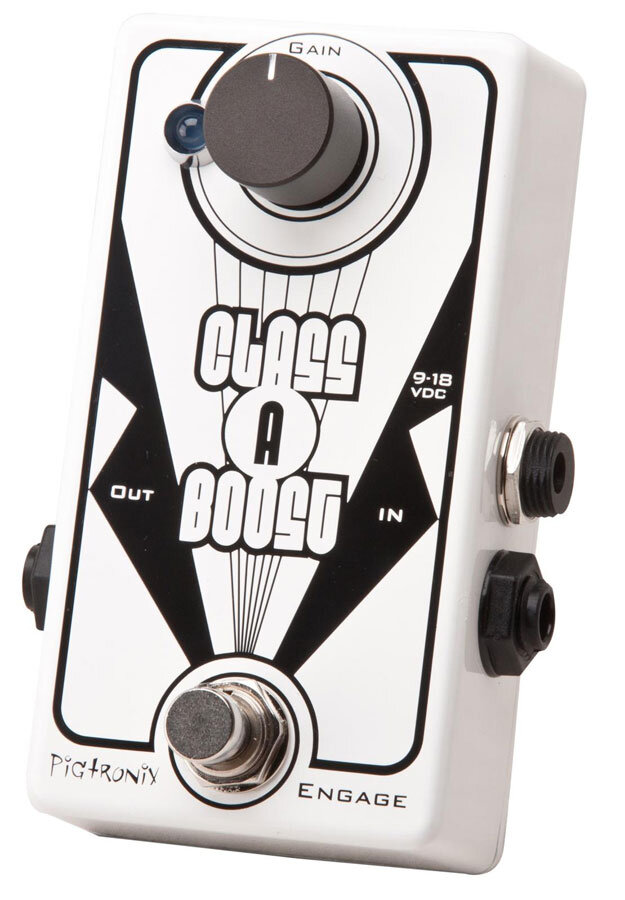

    Pigtronix Class A Boost Preamp Pedal

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Pigtronix Class A Boost Preamp Pedal Product Description

    The Pigtronix Class A Boost will fatten up and boost anything you feed it. Our deceptively simple design uses discreet transistors in a single-ended "Class A" configuration to achieve the warmest possible tone. This remarkable preamp can deliver up to 20db of clean boost and remains effective with both instrument and line level signals.

    Superior signal to noise performance allows you to put the Class A Boost anywhere in your pedal chain. It can add punch and extra output to a classic overdrive sound and is able to push distortion pedals into extremely aggressive crunch land. Class A Boost is also ideal for hitting the front end of a tube amp to achieve an added layer of sweetness and fat tone.

    This pedal runs fine on 9 volts but ships with an 18 volt adapter for superior headroom and maximum punch. Make your sound louder with this handsomely dressed J-FET masterpiece from Pigtronix.

    Features:

    - Discrete "Class A" single ended audio path
    - 20Hz - 20KHz frequency response
    - 18VDC 300mA supply included
    - Circuit Design by Howard Davis
    - Sound Design by David Koltai

    Same Day Music is an authorized dealer of Pigtronix products.

    Pigtronix Class A Boost Preamp Pedal Technical Description

    - Maximum input before overdrive clipping: 3.3 V (+3.5 dbm)
    - Maximum output before clipping: 8.0 V p-p (+11.2 dbm)
    - Gain Range: 0 to 10.5 (+20.4 db)
    - Frequency Response: +0, -3 db: 22 Hz to 39 KHz
    - Input Impedance: 500K
    - Chassis Size: 2.4 x 4.4 x 1 in.

    Same Day Music is an authorized dealer of Pigtronix products.
