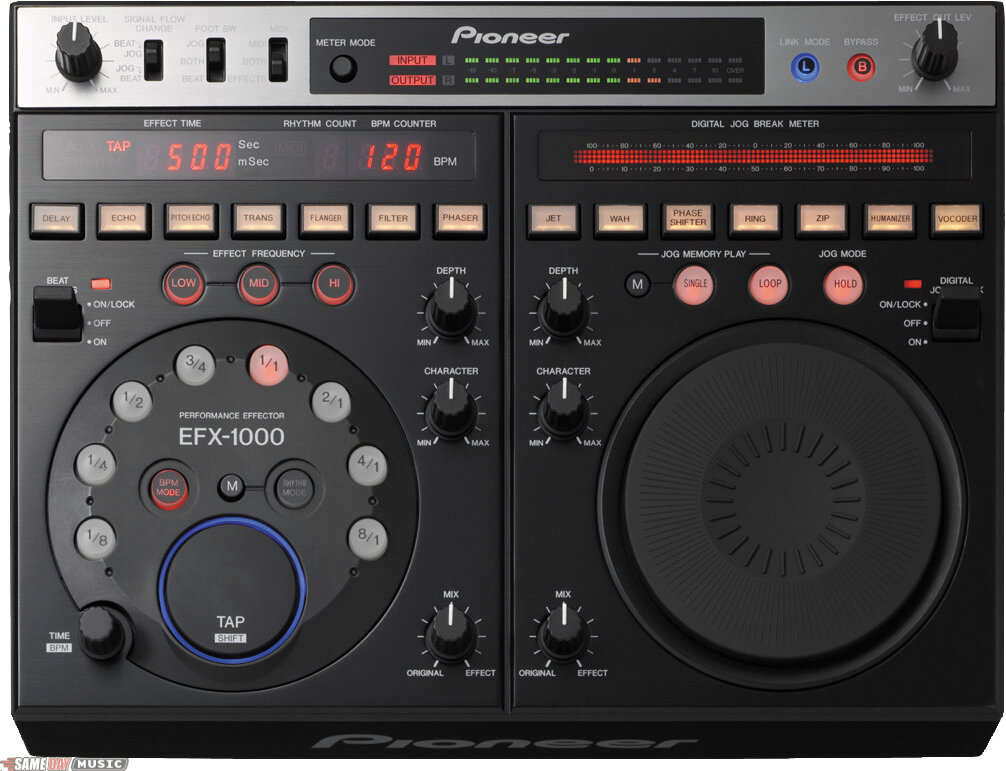

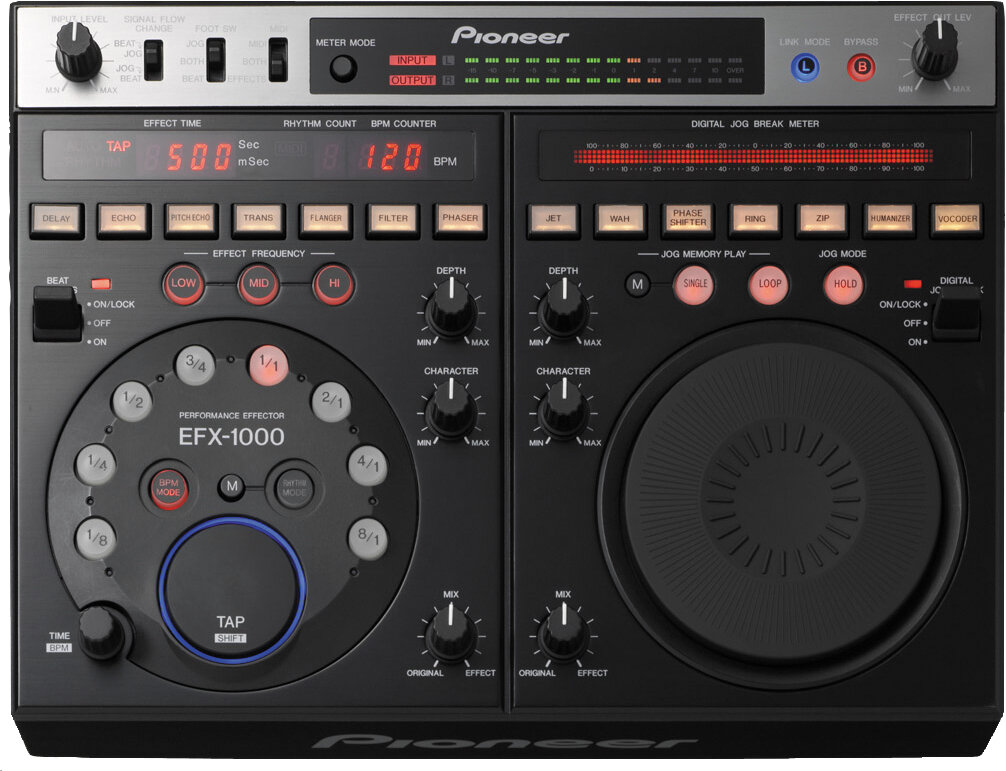

Pioneer EFX1000 96kHz/24-Bit DJ Effector
High-fidelity design. Digital and MIDI I/O.
Product rated 10.0 out of 10 (1 rating)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:
Main
Angle
PRODUCT DESCRIPTION
High-Fidelity Sound
The high-fidelity design features 24-bit/96 kHz A/D and D/A signal converters along with a 32-bit DSP, allowing the addition of effects without lowering the original sound quality. A signal bypass function has also been incorporated.
3 Band Beat Effector
1) Beat effects [BPM mode]
The EFX-1000 is equipped with the same automatic BPM counter/beat effector made popular by the EFX-500, which allows effect processing on single selected bands in sync with the track tempo (BPM), for greater expressive possibilities than with conventional all-band effectors.
2) Beat effects [RHYTHM mode]
This industry-first rhythm effector lets you apply effects in sync with a rhythm you input yourself. With the capability of a far wider range of unique effects compared to previous beat effectors, you have the potential for a new level of DJ performance.
Digital Jog Break Function
The jog dial allows real-time control of effect sounds. Up to eight seconds of jog function can be stored in memory for automated replay. In addition to single memory playback there is a loop mode for stored jog motion playback. When used in combination with the beat effector, up to 49 effects can be created.
MIDI IN/OUT Function
External MIDI signals (control signals and timing clock signals) can be used to control the effector and as a medium for using the effector to control a sequencer or other MIDI component.
Digital Link Function
A variety of functions can be performed by using the dedicated digital link cable to connect this unit to a Pioneer DJ mixer (DJM-1000) with digital link support.
Digital IN/OUT
Equipped with digital IN/OUT connectors at 24-bit/96 kHz sampling, the EFX-1000 allows for use in-studio track creation and other applications where high sound quality is demanded.
The high-fidelity design features 24-bit/96 kHz A/D and D/A signal converters along with a 32-bit DSP, allowing the addition of effects without lowering the original sound quality. A signal bypass function has also been incorporated.
3 Band Beat Effector
1) Beat effects [BPM mode]
The EFX-1000 is equipped with the same automatic BPM counter/beat effector made popular by the EFX-500, which allows effect processing on single selected bands in sync with the track tempo (BPM), for greater expressive possibilities than with conventional all-band effectors.
2) Beat effects [RHYTHM mode]
This industry-first rhythm effector lets you apply effects in sync with a rhythm you input yourself. With the capability of a far wider range of unique effects compared to previous beat effectors, you have the potential for a new level of DJ performance.
Digital Jog Break Function
The jog dial allows real-time control of effect sounds. Up to eight seconds of jog function can be stored in memory for automated replay. In addition to single memory playback there is a loop mode for stored jog motion playback. When used in combination with the beat effector, up to 49 effects can be created.
MIDI IN/OUT Function
External MIDI signals (control signals and timing clock signals) can be used to control the effector and as a medium for using the effector to control a sequencer or other MIDI component.
Digital Link Function
A variety of functions can be performed by using the dedicated digital link cable to connect this unit to a Pioneer DJ mixer (DJM-1000) with digital link support.
Digital IN/OUT
Equipped with digital IN/OUT connectors at 24-bit/96 kHz sampling, the EFX-1000 allows for use in-studio track creation and other applications where high sound quality is demanded.
TECHNICAL DESCRIPTION
Power supply: AC 120 V, 60 Hz
Power consumption: 16 W
Operating temperature: +5 degreesC to +35 degreesC (+41 degreesF to +95 degreesF)
Relative humidity: 5% to 85% (without condensation)
Weight: 2.4 kg (5.3 lb)
External dimensions: 320mm(W) x 234mm(D) x 101mm(H) // 12-19/32(W) x 9-7/32(D) x 3-31/32(H) in
Sampling rate: 96 kHz
A/D, D/A Resolution: 24 bits
Frequency characteristics: 20 Hz to 22 kHz
S/N ratio: 83 dB
Distortion: 0.02%
Headroom: 19 dB
Input level: 10 dBV / +4 dBu (22 kW)
Output level*: 10 dBV / +4 dBu (RCApin jacks: 1 kW, Phone jacks: kW)
*?10 dBV / +4 dBu is switchable
Power consumption: 16 W
Operating temperature: +5 degreesC to +35 degreesC (+41 degreesF to +95 degreesF)
Relative humidity: 5% to 85% (without condensation)
Weight: 2.4 kg (5.3 lb)
External dimensions: 320mm(W) x 234mm(D) x 101mm(H) // 12-19/32(W) x 9-7/32(D) x 3-31/32(H) in
Sampling rate: 96 kHz
A/D, D/A Resolution: 24 bits
Frequency characteristics: 20 Hz to 22 kHz
S/N ratio: 83 dB
Distortion: 0.02%
Headroom: 19 dB
Input level: 10 dBV / +4 dBu (22 kW)
Output level*: 10 dBV / +4 dBu (RCApin jacks: 1 kW, Phone jacks: kW)
*?10 dBV / +4 dBu is switchable
