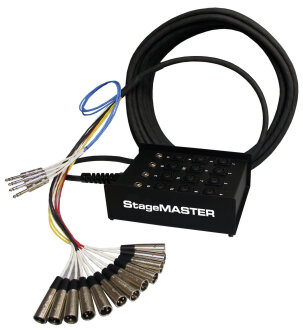

Pro Co SMC StageMASTER Audio Snake Product Description
Same Day Music is an
authorized Pro Co dealer
StageMASTER Multipair audio snakes are designed and built to provide the greatest value. StageMASTER Snakes are not outsourced. They are manufactured in the Pro Co facilities, by Pro Co employees, according to the strictest quality standards. ProCo takes pride in providing you with a system that you can rely on at a price you will appreciate. authorized Pro Co dealer
Each StageMASTER audio snake stagebox is constructed of a steel connector panel chassis and a heavy-duty steel U-channel enclosure designed for excellent shielding and protection of connectors. The stagebox is coated with a durable black powder-coat finish with white silkscreened channel identification numbers.
Mic inputs are rugged Neutrik D-Series nylon XLR panel connectors and returns are durable metal 1/4-inch TRS panel jacks.
The stagebox is wired with SN Multipair Audio Cable to a Fanout with RHC Male XLR connectors and RHC 1/4-inch TRS jacks.
The cable is secured to the stagebox with a rugged nylon strain relief. The individual channels of the Fanout are protected with color-coded irradiated polyolefin shrink-tubing for long flex-life and easy channel identification.
StageMASTER Multipair Audio Snakes are available in 8 x 4, 12 x 4, 16 x 4 and 24 x 4 (Mics x Returns) Fan to Box configurations and standard 50, 100 and 150-foot lengths.
Features:
- Steel u-channel stagebox for best shielding and connector protection.- SN series multipair (2 x 24 AWG) audio cable
- Individually shielded pairs with 100% coverage foil shield and drain wire
- Durable PVC outer jacket
- Color-coded fanout for easy channel identification
- Cable is highly flexible
- Rugged Neutrik D-Series nylon XLR panel-mount connectors
- RHC metal-shell cable connectors for high-use durability
- Limited 1-year warranty
Same Day Music is an authorized dealer of Pro Co products.
Pro Co SMN Stagemaster Audio Snake Technical Description
Stagebox Specifications:
- Microphone Inputs: Neutrik D-Series Nylon XLR Female Panel-mount
- Returns Out: Neutrik Metal 1/4" T/R/S Panel-mount
- Connector Frame: 18-Gauge Steel FEET: Non-skid Rubber (4)
- Finish: Black Powder Coat
- Channel Marking: 0.25 in. White (Semigloss Epoxy) Characters
- Strain Relief: Nylon
Fan End Specifications:
- Connectors:
- Microphone Output: RHC XLR Male Cable-mount
- Returns Input T/R/S Model: RHC 1/4 in. T/R/S Cable-mount
- Channel Insulation: .010 in. (.254mm) Polyethylene
- Channel Marking: Numbered Color-Coded Polyolefin Heat Shrink Tubing
Multipair Audio Cable:
- Wire: SN Series- 24GA
- Conductor Gauge: 24 AWG (.20mm2)
- Stranding no. strands x AWG: 7 x 32 (7 x .254mm2)
- Insulation: .010 in. (.254mm)
- Insulation Material: Polypropylene
- Insulation Diameter: 0.44 in. (11.2 mm)
- Drain Wire Gauge: 24 AWG (.20mm2)
- Drain Wire Stranding: 7 x 32 (7 x .254mm2)
- Shield Material: Aluminum/Polyester Tape Wrap
- Shield Coverage: 100% coverage
Capacitance:
- between paired conductors: 25 pF/ft. (82 pF/m)
- between one of paired conductors and remaining conductor tied to shield):45 pF/ft. (148 pF/m)
Calculated Impedance: 60 ohms/kft (196.8 ohms/km)
Nominal Conductor Resistance @ 20 degrees C: 25.4 ohms/kft (83.3 ohms/km)
Same Day Music is an authorized dealer of Pro Co products.
- Microphone Inputs: Neutrik D-Series Nylon XLR Female Panel-mount
- Returns Out: Neutrik Metal 1/4" T/R/S Panel-mount
- Connector Frame: 18-Gauge Steel FEET: Non-skid Rubber (4)
- Finish: Black Powder Coat
- Channel Marking: 0.25 in. White (Semigloss Epoxy) Characters
- Strain Relief: Nylon
Fan End Specifications:
- Connectors:
- Microphone Output: RHC XLR Male Cable-mount
- Returns Input T/R/S Model: RHC 1/4 in. T/R/S Cable-mount
- Channel Insulation: .010 in. (.254mm) Polyethylene
- Channel Marking: Numbered Color-Coded Polyolefin Heat Shrink Tubing
Multipair Audio Cable:
- Wire: SN Series- 24GA
- Conductor Gauge: 24 AWG (.20mm2)
- Stranding no. strands x AWG: 7 x 32 (7 x .254mm2)
- Insulation: .010 in. (.254mm)
- Insulation Material: Polypropylene
- Insulation Diameter: 0.44 in. (11.2 mm)
- Drain Wire Gauge: 24 AWG (.20mm2)
- Drain Wire Stranding: 7 x 32 (7 x .254mm2)
- Shield Material: Aluminum/Polyester Tape Wrap
- Shield Coverage: 100% coverage
Capacitance:
- between paired conductors: 25 pF/ft. (82 pF/m)
- between one of paired conductors and remaining conductor tied to shield):45 pF/ft. (148 pF/m)
Calculated Impedance: 60 ohms/kft (196.8 ohms/km)
Nominal Conductor Resistance @ 20 degrees C: 25.4 ohms/kft (83.3 ohms/km)
Same Day Music is an authorized dealer of Pro Co products.
- Shipping Weights and Dimensions
- 50 Foot, SMN0804-FBQ50, 8 In x 4 Out, with 6 Pro Co M25 Mic Cables (25 ft)
- Shipping Weight: 18 lbs
- 50 Foot, SMN0804-FBQ50, 8 In x 4 Out
- Shipping Weight: 12 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 50 Foot, SMN1604-FBQ50, 16 In x 4 Out
- Shipping Weight: 17 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 100 Foot, SMN0804-FBQ100, 8 In x 4 Out, with 6 Pro Co M25 Mic Cables (25 ft)
- Shipping Weight: 24 lbs
- 50 Foot, SMN1204-FBQ50, 12 In x 4 Out, with 6 Pro Co M25 Cables (25 ft)
- Shipping Weight: 21 lbs
- 100 Foot, SMN0804-FBQ100, 8 In x 4 Out
- Shipping Weight: 18 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 50 Foot, SMN1204-FBQ50, 12 In x 4 Out
- Shipping Weight: 15 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 50 Foot, SMN1604-FBQ50, 16 In x 4 Out, with 6 Pro Co M25 Cables (25 ft)
- Shipping Weight: 23 lbs
- 100 Foot, SMN1204-FBQ100, 12 In x 4 Out, with 6 Pro Co M25 Cables (25 ft)
- Shipping Weight: 27 lbs
- 100 Foot, SMN1204-FBQ100, 12 In x 4 Out
- Shipping Weight: 21 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 100 Foot, SMN1604-FBQ100, 16 In x 4 Out, with 6 Pro Co M25 Cables (25 ft)
- Shipping Weight: 31 lbs
- 100 Foot, SMN1604-FBQ100, 16 In x 4 Out
- Shipping Weight: 25 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 50 Foot, SMN2404-FBQ50, 24 In x 4 Out
- Shipping Weight: 23 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 50 Foot, SMN2404-FBQ50, 24 In x 4 Out, with 6 Pro Co M25 Cables (25 ft)
- Shipping Weight: 29 lbs
- 100 Foot, SMN2404-FBQ100, 24 In x 4 Out
- Shipping Weight: 35 lbs
- Shipping Dimensions: 19 x 19 x 12 in
- 100 Foot, SMN2404-FBQ100, 24 In x 4 Out, with 6 Pro Co M25 Cables (25 ft)
- Shipping Weight: 41 lbs
