    PreSonus AudioBox Recording Interface, USB

    24-bit / 44.1, 48k USB audio recording interface. 2 class A XMAX microphone / instrument preamplifiers. Includes Presonus Studio One Artist software.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 1644-SX4M

    Web Item #PRSAUDIOBOX

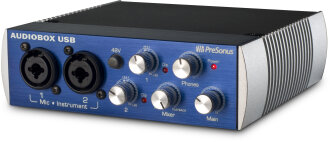

    PreSonus AudioBox USB Audio Interface
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Cubase LE4 Setup Manual QuickStart Guide
    PreSonus Warranty: Presonus Warranty Presonus offers a one year warranty (parts and labor) on all new products. All non-new Presonus products carry a limited warranty of 90 days. If you have additional warranty questions, please call the manufacturer at 225-216-7887
    In Stock | Will Ship Today
    •
    • 2 Day: $10
    • Overnight: $28
    $89.95
    Order Now | Limited Qty
    •
    • 2 Day: $8
    • Overnight: $26
    $99.95
    This product ships to: Can ship to United States Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    PreSonus AudioBox USB Recording Interface Product Description

    Capture your ideas wherever you are with the PreSonus AudioBox USB 2x2 USB recording system. The AudioBox USB is a USB bus-powered audio recording interface featuring 2 microphone/instrument inputs with 48V phantom power, 2 balanced TRS outputs, and MIDI in/out.

    The AudioBox USB is bundled with PreSonus Studio One Artist, the groundbreaking music creation program, and over 4 GB of virtual instruments, plug-ins, loops, and samples to get you started making music immediately.

    Pedigree Preamplifiers

    PreSonus Audio has won numerous awards for designing the highest quality microphone preamplifiers in the industry at all price levels. The AudioBox USB is loaded with preamps that out perform any USB-based interface hands down. The preamplifiers in the AudioBox deliver high headroom, low noise and high gain giving you pure, full and rich sound.

    Professional 24-Bit Converters

    Most USB recording devices operate at 16-bit sample rate and use converters with dynamic range of less than 90dB. This translates into a pinched and relatively small sound. The AudioBox USB uses professional-grade analog to digital converters with dynamic range of 102dB and 24-bit sample rate so that the digital conversion is big, quiet and musical.

    USB Bus-Powered

    The AudioBox USB is USB bus-powered allowing you to take it anywhere inspiration hits. No wall warts, line lumps or power cables, just plug in to a powered USB port and you are ready to record.

    Ready to Hit the Road

    There's no plastic here. The AudioBox USB is housed in an all-metal chassis with metal knobs ready to withstand the rigors of travel. Toss it in your laptop bag and mobilize your music creation and production. Whether you want to record your shows, mix on the plane or write songs in your hotel room, the AudioBox is ready.

    Studio One Artist-Plus Gigabytes of Creative Resources

    The AudioBox USB is bundled with an exceptional software package, featuring PreSonus Studio One Artist, the amazing DAW software for Mac OS X and Windows XP and Vista that makes producing high-quality projects easier than ever before. As part of the Studio One Artist package, you get 20 upgraded PreSonus Native Effects plug-ins and virtual instruments and a generous bundle of third-party loops, software, and instrument sounds.

    Compare Studio One Artist and bundled extras to what comes with competing mobile interfaces:

    - All-meat, no-bloat, music-creation software with an intuitive, practical, single-window interface
    - Unlimited tracks, insert effects, sends, virtual instruments, buses, and effects channels
    - Powerful drag-and-drop functionality
    - Content browser with convenient sort options and preview player
    - Full-featured, flexible automation
    - Powerful real-time auto/manual time-stretching and resampling engine
    - Control Link(tm) (advanced MIDI mapping made easy)
    - Twenty 32-bit Native Sound(tm) plug-ins, including reverbs, amp modeling, and EQ
    - Four additional virtual instruments, including a sampler and an analog-type subtractive synth
    - Ability to control the software mixer in any FireStudio-series interface to create zero-latency cue mixes.
    - Gigabytes of third-party resources, including Native Instruments(tm) Kore(tm) Player with custom SoundPack (150 instruments), Native Instruments Guitar Rig LE, Toontrack(tm) EZDrummer Lite, and over 1.4 GB of loops

    Same Day Music is an authorized dealer of PreSonus products.

    PreSonus AudioBox Interface Technical Description

    Microphone Preamp
    - Type: XLR Female Balanced
    - Frequency Response (+/-3.0 dB): 14 Hz to 70 kHz
    - Input Impedance (Balanced): 1200 Ohm
    - THD+N (unwtd, 1 kHz @ +4 dBu Output, Unity Gain): < 0.008%
    - EIN (A-weighted, 55dB Gain, 150 Ohm Input, 20Hz to 22 kHz): -115 dBu
    - S/N Ratio (Unity Gain, Ref. = +4 dBu, 20Hz to 22 kHz): > 95 dB
    - Common Mode Rejection Ratio (1 kHz, 55 dB Gain): > 45 dB
    - Gain Control Range (+/- 1dB): 0 dB to 35 dB
    - Max Input Level (Unity Gain, 1 kHz @ 0.5% THD+N): -3 dBu
    - Phantom Power (+/-2 VDC): +48 VDC

    Instrument Input
    - Type: 1/4 in.
    - TRS Female Unbalanced Input Impedance: 0.5 M Ohm

    Line Outputs
    - Type: 1/4 in. TRS
    - Balanced Output Impedance: 51 Ohm

    Headphone Output
    - Type: 1/4 in. TRS Active Stereo
    - Maximum Output: 60 mW/Ch @ 60 Ohm Load
    - Frequency Response (+/-1.0 dB): 20 Hz - 30 kHz

    MIDI I/O
    - Type: Dual 5-pin Female DIN

    Digital Audio
    - ADC Dynamic Range (Awtd, 48 kHz Sample Rate): 102 dB
    - DAC Dynamic Range (Awtd, 48 kHz Sample Rate): 110 dB
    - Bit Depth: 24
    - Reference Level for 0dBFS: +4 dBu
    - Internal Sample Frequency Selections (kHz): 44.1, 48
    - Power: USB Bus-powered

    Physical
    - Package Type: 1/3U - steel chassis
    - Dimensions (WxHxD): 5.5 X 5.5 X 1.75 in.
    - Weight: 5.0lbs

    As a commitment to constant improvement, PreSonus Audio Electronics, Inc.reserves the right to change any specification stated herein at anytime in the future without notification.

    System Requirements
    Below are the minimum computer system requirements for the AudioBox USB.

    Windows
    - Windows XP SP2 or later, Windows Vista, Windows 7 (32- and 64-bit)
    - Intel Pentium 4 1.6 GHz processor or AMD Athlon 64 (Turion) (2.5 GHz or faster recommended)
    - 1 GB RAM (2 GB or more recommended)
    - USB 1.1 Port
    - Internet connection recommended
    - DVD-ROM drive
    - Internal or external 7200 RPM storage drive highly recommended

    Macintosh
    - Mac OS X 10.4.11 or later (10.5.2 or later or 10.6 recommended)
    - PowerPC G4 1.25 GHz or Intel Core Solo 1.5 GHz processor (2 GHz or faster recommended)
    - 1 GB RAM (2 GB or more recommended)
    - USB 1.1 Port
    - Internet connection recommended
    - DVD-ROM drive
    - Internal or external 7200 RPM storage drive highly recommended

    Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) that you might experience while monitoring audio or MIDI signals.
