Product Description

Loaded with direct outputs and inserts on every channel, the DigiMax FS is the perfect hardware expansion for your FireStudio 1818 or any digital recording system with optical light pipe expansion capability.

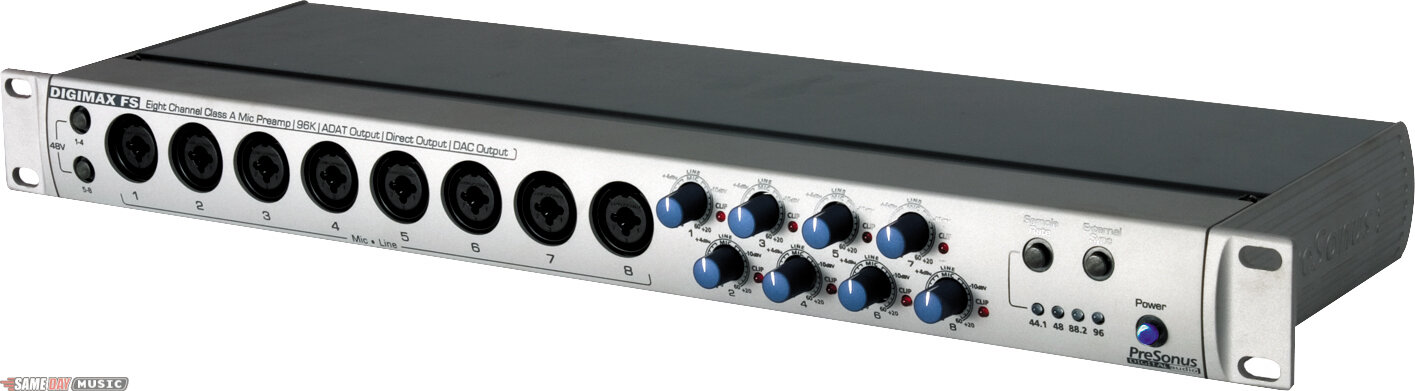

The front panel of the DigiMax FS features eight combo microphone/line input XLR/TRS Neutrik connectors for conveniently connecting all types of microphones and instruments, perfect for recording vocals, drums, guitars, bass, piano, keyboards, guitars, synths, horns, orchestras, choirs, and more. Trim controls are on the front panel to easily adjust the input level of each preamplifier. Phantom power (+48V) is available in groups of 4 for microphone preamps 1-4 and 5-8. Word clock I/O allows for external devices to run in slave or master synchronization mode.

Features
8 class A microphone preamps with trim control

24 bit resolution, up to 96K sampling rate

96k ADAT input/output (dual SMUX)

Direct outputs and inserts on every channel

Word clock input-output

Expand Your System
The DigiMax FS is the perfect solution to add eight class A preamps to any digital audio hardware system with ADAT optical light pipe I/O including the Digidesign 002, and 002 Rack, Yamaha DM series digital mixers, RME recording interfaces and of course the PreSonus FIRESTUDIO 1818.

Catalog Description

8 channels of I/O and mic preamps@Up to 24-bit, 96kHz ADAT I/O via SMUX@JetPLL jitter reduction@2 mic/instrument and 6 mic/line inputs on XLR-1/4" combo connectors@Phantom power and inserts on each channel@Separate preamp and DAC direct outputs; word clock I/O
