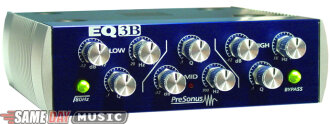

PreSonus EQ3B 3-Band EQ 1/3 Rack Space
Fully parametric EQ in a compact box.
Product rated 9.5 out of 10 (2 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:

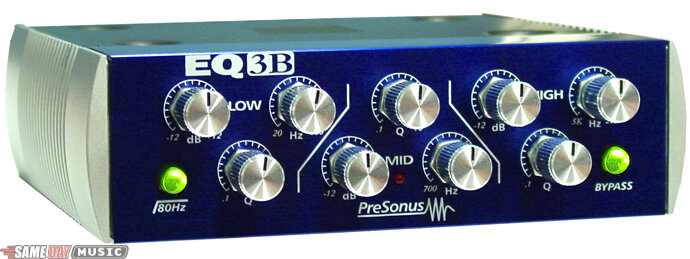

Main
Front Diagram
Rear Diagram
PRODUCT DESCRIPTION
Need a professional fully parametric EQ in a compact box? PreSonus has created the EQ3B to meet your needs for just about any application.
PreSonus EQ3B 3-Band EQ 1/3 Rack Space
Features
Three fully parametric bands with overlapping frequencies
High pass rumble filter
Extremely quiet operation
Warm, wide dynamic range for recording or live.
PreSonus EQ3B 3-Band EQ 1/3 Rack Space
Features
Three fully parametric bands with overlapping frequencies
High pass rumble filter
Extremely quiet operation
Warm, wide dynamic range for recording or live.
TECHNICAL DESCRIPTION
Technical Specifications
Input
XLR Impedance
10k Ohms
TRS Impedance
10k Ohm
Panel Controls
Low Frequency Range
20Hz to 800Hz
Mid Frequency Range
700Hz to 7kHz
High Frequency Range
5kHz to 20kHz
Bandwidth Adjust (Q)
.1 to 10
Gain Adjust
-12dB to +12dB
High Pass Filter
80Hz
Meters
Blue Backlit VU
Power Supply
Type
Linear
Input
16VAC/1000mA
Output
XLR Balanced
51 Ohms Impedance
1/4 in. TRS Unbalanced
51 Ohms Impedance
Performance
THD+Noise (Unweighted)
0.006% at 0dB
Noise Floor
-98dB
Signal To Noise
>95dB
Power Supply Rejection
>98dB
Physical
Weight
5lbs.
Dimensions
5.5 x 5.5 x 1.75
Mounting
Universal Rack Tray Insert
Chassis
Steel
Panel
Brushed Aluminum
Sides
Cast Aluminum
Power
16 Watts
Input
XLR Impedance
10k Ohms
TRS Impedance
10k Ohm
Panel Controls
Low Frequency Range
20Hz to 800Hz
Mid Frequency Range
700Hz to 7kHz
High Frequency Range
5kHz to 20kHz
Bandwidth Adjust (Q)
.1 to 10
Gain Adjust
-12dB to +12dB
High Pass Filter
80Hz
Meters
Blue Backlit VU
Power Supply
Type
Linear
Input
16VAC/1000mA
Output
XLR Balanced
51 Ohms Impedance
1/4 in. TRS Unbalanced
51 Ohms Impedance
Performance
THD+Noise (Unweighted)
0.006% at 0dB
Noise Floor
-98dB
Signal To Noise
>95dB
Power Supply Rejection
>98dB
Physical
Weight
5lbs.
Dimensions
5.5 x 5.5 x 1.75
Mounting
Universal Rack Tray Insert
Chassis
Steel
Panel
Brushed Aluminum
Sides
Cast Aluminum
Power
16 Watts
