Product Description

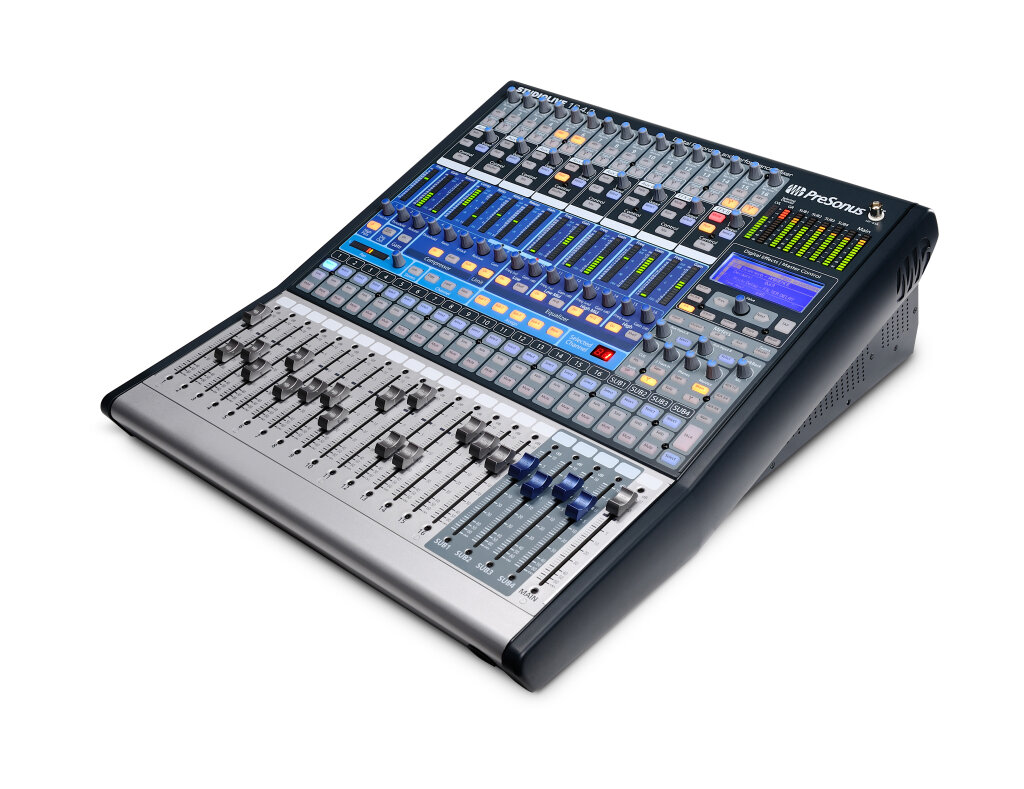

StudioLive is the most powerful and flexible sixteen-channel digital mixer the world has seen. Loaded with sixteen high headroom XMAX microphone preamplifiers, built-in 32x18 FireWire recording and playback engine, "Fat-Channel" processing with 4-band EQ's, compressors, limiters and gates, DSP effects, six aux buses, four sub-groups, extensive LED metering, mixer save and recall, channel-strip save/recall/copy/paste, talkback and more, breaking new boundaries for music performance and production.

Loaded with Racks of Effects
StudioLive is loaded with everything needed for professional live sound production totaling 28 compressors, 28 limiters, 28 gates, 28 high pass filters, 2 stereo reverb/delay's, 2 master stereo limiters and more, saving you loads of money and trips from the trailer during load in/out. All StudioLive digital effects are created and processed with 32-bit floating point precision for maximum sonic performance and enhanced musicality.

Best in Both Worlds
StudioLive seamlessly integrates a professional digital mixer with a complete multi-channel recording system delivering the most creative environment available for both live performance and studio music production. Take your recording studio to the gig, and have your soundman record and even enhance your shows with the power of StudioLive.

Get creative in the studio. Record with or without Fat Channel or DSP effects processing. Create mixes, loops, sound effects and more, then bring them out to your show and mix them with the live performance. Process channels using your favorite plug-ins, and completely automate your entire show using your favorite music recording and production software. StudioLive completely revolutionizes music production opening endless creative possibilities.

Powerful and Easy Digital Mixing
StudioLive features an innovative and intuitive "QuickTouch" design allowing fast access to every parameter, mix, effect, and aux, allowing quick and creative control during music production. Load and save functions are also included to create snapshots of channel settings, save effect settings, totally recalling a mix, and more. All digital mixing and effects processing is done with 32-bit floating point precision for unmatched musicality.

Fat Channel (EQ, Compressor, Limiter, Gate, on every channel)
The heart of StudioLive is the "Fat Channel" engaged by pressing any "select" button, and features extensive equalization and dynamics available to every input channel, every aux output, every subgroup output, and main output. High pass filter, and four-band semi-parametric equalization algorithms are based on PreSonus' custom-designed digital EyeQ(TM) equalizer, delivering extremely musical results. Also included in the Fat Channel are compressors, limiters and gates modeled after PreSonus' award-winning ACP88 for complete dynamics control.

DSP Effects
Two programmable 32-bit stereo DSP effects engines are loaded in StudioLive with a wide range of reverbs, delays, and time-based effects with easy to use parameter adjustment, tap tempo, store, recall, and scene selection for ultimate creative flexibility.

Load and Save Your Settings
StudioLive allows you to save all of your digital settings for quick setup and recall. Save "scenes" (all settings) including fader levels with LED position matching, channel strips (Fat Channel), and individual DSP effects for ultimate ease, quickness and control.

Professional Sound Quality
StudioLive spares no expense when it comes to sound quality. All digital mixing is done with ultra high headroom 32-bit floating point processing for optimal sonic performance. Analog input and output is converted to digital audio with the highest-quality digital converters available delivering dynamic range of +118dB for spectacular sonic results and unmatched musicality.

Built-in 22X18 FireWire Recording
StudioLive includes PreSonus' award-winning FireWire technology with JetPLL synchronization delivering 22 channels of recording and 18 channels of simultaneous playback. Each FireWire recording channel can be set to record either pre or post Fat-Channel signal processing giving total flexibility and power. StudioLive can also return 18 FireWire playback channels from your recording and production software for remixing and live performance with pre-recorded tracks, as well as studio mixing using the mixer's internal signal processing and summing algorithms. StudioLive is compatible with Mac and Windows audio recording and production software including Logic, Nuendo, Cubase, Sonar, Digital Performer, Audition and more.

Integrated Multi-Track Recording Software- CAPTURE
StudioLive 16.4.2 also ships complete with CAPTURE multi-track recording software so you can effortlessly record your shows right out of the box. CAPTURE software was designed to interface with StudioLive 16.4.2 perfectly to allow instant setup and recording of performances. With the look and feel of industry standard digital multi-track hard disk recorders, CAPTURE software is instantly familiar to every musician and engineer. StudioLive HDR software gives you full editing capability as well as export to wav file formats for compatibility with ProTools, Cubase, Nuendo, Logic, Sonar and all other recording and music production software. Or you can play back your recorded tracks into StudioLive 16.4.2 via FireWire and mix your tracks with the mixing power and capabilities of StudioLive 16.4.2, then record the final mix back to CAPTURE! Now that's power!

XMAX Class A Preamplifiers
StudioLive includes sixteen custom-designed high-voltage, discrete, XMAX Class A microphone preamplifiers for all types of microphones.The job of a microphone preamplifier is to boost microphone level signals to line level so that the signal can be converted from analog to digital. This mic to line boost is generally a preamplification of over 400 times the voltage of the original mic level signal. This preamplification stage is one of the most important stages that the signal will go through before converted to digital, and is why a high performance preamplifier is important to achieving great results.

All XMAX preamplifiers are built with the same three elements:

High Voltage - The XMAX preamplifier runs on power rails of 30V. Most off the shelf op amp based designs run on power rails of 10V to 18V. Higher voltage power rails deliver more headroom, deeper lows, smoother highs and an overall fuller sound.

Discrete - No op amps. Only transistors, resistors and capacitors. Op amps add noise, coloration and harshness to a signal. Discrete designs deliver ultra low noise and transparency.

Class A - When a circuit is running in Class A mode the circuit is always in an "on" state operating at its optimal voltage requirements. Class A mode has zero crossover distortion and delivers purer, clearer and more musical sonics than class A/B designs which are found in most op-amp circuits.

The net result of the XMAX preamp design is high headroom, low noise, wide dynamic range and wide frequency range, and most importantly, musicality and transparency - smooth highs, solid deep lows, and everything in between.

Link Multiple StudioLive's
Sometimes 16 input channels are not enough. No problem! You can use the StudioLive 16.4.2's second FireWire port to link two StudioLive 16.4.2 mixers for 32 channels of recording or to combine up to 4 StudioLive mixers for 64 channels in live performance, with sample-accurate synchronization between units. Now, you will never have to worry that your needs will outgrow your StudioLive's mixing capacity; when you need more channels, just plug in a second StudioLive 16.4.2, turn on its link ID, and your master StudioLive will detect it and merge the buses to the master unit. You don't even need a computer to cascade multiple units—simply connect them with a FireWire cable—done! You also can daisy-chain one or more FireStudio-series interfaces (such as the FireStudio Tube and FireStudio Project) with a StudioLive to provide additional inputs for recording.

Technical Description

Specifications
16 inputs, 6 auxiliary mixes, 4 subgroups

16 class A XMAX microphone preamplifiers

Hi-Definition analog to digital converters (118dB dynamic range)

Unlimited headroom 32-bit floating point digital mixing and effects processing

Internal sample frequency 44.1kHz and 48kHz

22x18 FireWire digital recording interface

Compact 19-inch rack-mountable rugged steel chassis

Fat Channel Select:
- High Pass Filter
- Compressor
- Limiter
- Gate
- 4-band semi parametric EQ
- Pan
- Load/Save/Copy/Paste

2 Master DSP Effects (reverbs, delays, time-based effect, with load/save)

Load/Save Mixer "Scenes" - all settings including fader levels with LED position matching

100mm long throw faders

Military grade quick touch push buttons

Fast-acting LED meters

Talkback communication system

CAPTURE integrated live recording software included

Mac and Windows compatible

New Universal Control version 1.11 software. Compatible with 64-bit Windows XP and Vista and will support 64-bit operation in Mac OS X 10.5 and later.

Direct recording interface compatible with Logic, Nuendo, Cubase, Sonar, Digital Performer and more

Dimensions:
- Length: 22.36 in. (568.06mm)
- Width (chassis only): 17.22 in. (437.40mm)
- Width (with rack ears): 19 in. (482.60mm)
- Maximum Height: 6.90 in.
