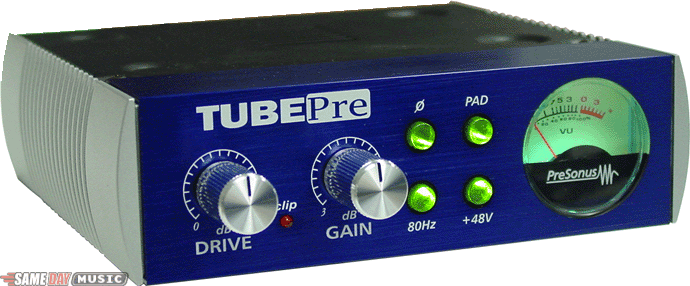

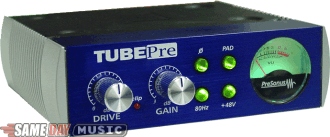

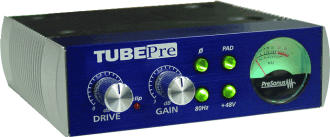

PreSonus TubePre Single Channel Microphone Preamp with VU Meter
48v phantom power. Phase reverse.
Product rated 7.2 out of 10 (10 ratings)
Read 2 Full Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Diagram Front
Diagram Back
PRODUCT DESCRIPTION
The TUBEPre is a single channel preamp based on a 12AX7 vacuum tube circuit that provides a stable, transformer-free signal path. The unit can be used as the first stage of a live or studio system, as a mic preamp or direct box. The dual-servo gain stage design employs no capacitors providing ultra-low noise performance and wide dynamic control that allows the TUBEPre to boost the desirable signal without increasing unwanted background noise. The TUBEPre offers an astonishing frequency range of 10Hz to 80kHz with a noise floor of 94dBu and a signal-to-noise ratio of greater than 90dB. This means the TUBEPre can provide both a high-quality, crystal clear sound as well as a colored saturation tube effect. Other features on the TUBEPre include 48v phantom power for condenser microphones, phase reverse, 20dB Pad and 80Hz rumble filter.
Features:
Award-Winning Tube-Preamp
Tube Drive/Gain
Back-Lit VU Meter
Great as a Direct Box
Features:
Award-Winning Tube-Preamp
Tube Drive/Gain
Back-Lit VU Meter
Great as a Direct Box
TECHNICAL DESCRIPTION
Input:
XLR Impedance: 1.3k Ohms
High Z Impedance: 1 Meg Ohm
Panel Controls:
Tube Drive: 0dB to +20dB
Gain: 3dB to +48dB
Phase Reversal
-20 dB Pad
+48V Phantom Power
80Hz Rumble Filter
Meters: Blue Backlit VU
Power Supply:
Type: Linear
Input: 16VAC/1000mA
Output:
XLR Balanced: 51 Ohms Impedance
Õ in. TRS Unbalanced: 51 Ohms Impedance
THD+Noise (Unweighted):
0.05% at 0dB Tube Drive
10% at 30dB Tube Drive
Noise Floor: -98dB
Signal To Noise: >95dB
Power Supply Rejection: >98dB
Amplifier Type: Dual-Servo
Weight: 5 lbs.
Dimensions: 5.5 x 5.5 x 1.75
Mounting: Universal Rack Tray Insert
Chassis: Steel
Panel: Brushed Aluminum
Sides: Cast Aluminum
Power: 16 Watts
XLR Impedance: 1.3k Ohms
High Z Impedance: 1 Meg Ohm
Panel Controls:
Tube Drive: 0dB to +20dB
Gain: 3dB to +48dB
Phase Reversal
-20 dB Pad
+48V Phantom Power
80Hz Rumble Filter
Meters: Blue Backlit VU
Power Supply:
Type: Linear
Input: 16VAC/1000mA
Output:
XLR Balanced: 51 Ohms Impedance
Õ in. TRS Unbalanced: 51 Ohms Impedance
THD+Noise (Unweighted):
0.05% at 0dB Tube Drive
10% at 30dB Tube Drive
Noise Floor: -98dB
Signal To Noise: >95dB
Power Supply Rejection: >98dB
Amplifier Type: Dual-Servo
Weight: 5 lbs.
Dimensions: 5.5 x 5.5 x 1.75
Mounting: Universal Rack Tray Insert
Chassis: Steel
Panel: Brushed Aluminum
Sides: Cast Aluminum
Power: 16 Watts
CATALOG DESCRIPTION
Adds tube character to recorded tracks@Gain and Tube drive controls@48v phantom power@20 dB pad, 80 Hz filter, phase reverse@Backlit VU meter
PreSonus TubePre Single Channel Microphone Preamp with VU Meter Reviews
Product rated 7.2 out of 10 (10 ratings)
Read 2 Full PreSonus TubePre Single Channel Microphone Preamp with VU Meter Reviews >>
