QSC RMX1450 Power Amplifier (700 Watts)

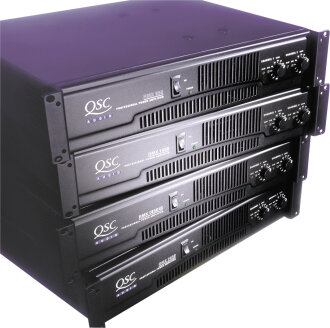

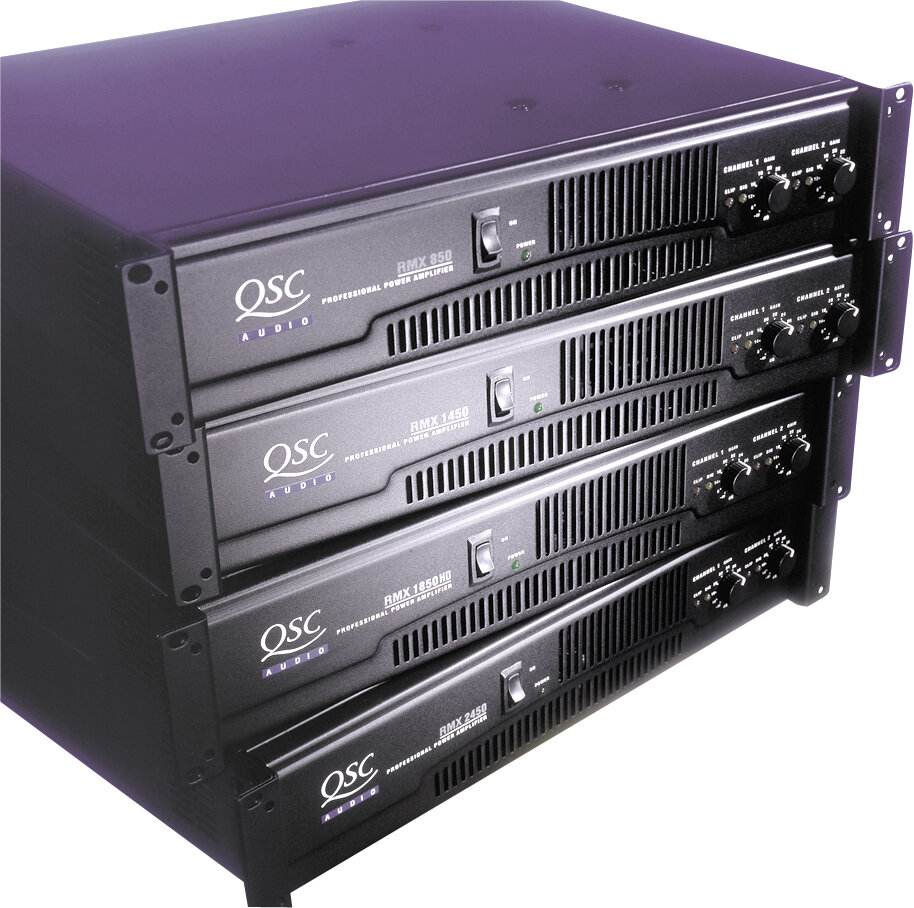

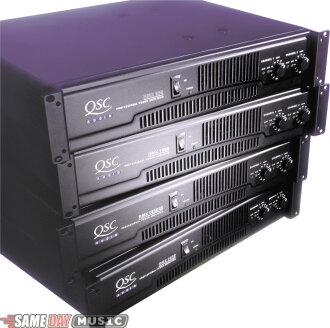

RMX1450 amplifier is second from top in photo.
Product rated 8.3 out of 10 (36 ratings)
- LIMITED TIME OFFER
- Register new product online with QSC and receive a Free 6-Year Extended Warranty upgrade ( a $99 value)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
PRODUCT DESCRIPTION
Muscular Power Plant:
The power supply is the heart of an amplifier, converting raw AC power from the wall to clean DC for the audio circuitry. The RMX uses a powerful high-current toroidal transformer and ample filter capacitance to ensure generous energy reserves. This makes a critical difference in sound quality, allowing the amp to effortlessly punch out high level transients, even when driving abusive 2-ohm speaker loads.
Superior Performance
RMX amplifiers deliver true studio-quality sound. A full complementary output circuit using the highest-grade linear output devices delivers ultra-low distortion (<0.05% THD) and a ruler-flat frequency response. SMT (Surface Mount Technology) triples small-signal component density, enabling us to pack up to 2400 watts of power in a chassis only 2 rack spaces and less than 16" deep. And unlike other designs, RMX output devices are direct-mounted to the heat sink for optimum thermal coupling and cooling.
Features
Independent defeatable clip limiters reduce distortion without sacrificing peak performance.
Selectable low-frequency filters boost system response, protect speakers, and ensure low-end tightness by more precisely matching the amplifier's range to the loudspeakers.
Barrier strip, XLR, and 1/4" balanced inputs plus Speakon and binding post outputs provide easy connections.
Low-noise variable speed fans with rear-to-front air flow keep amplifiers and racks cool.
The power supply is the heart of an amplifier, converting raw AC power from the wall to clean DC for the audio circuitry. The RMX uses a powerful high-current toroidal transformer and ample filter capacitance to ensure generous energy reserves. This makes a critical difference in sound quality, allowing the amp to effortlessly punch out high level transients, even when driving abusive 2-ohm speaker loads.
Superior Performance
RMX amplifiers deliver true studio-quality sound. A full complementary output circuit using the highest-grade linear output devices delivers ultra-low distortion (<0.05% THD) and a ruler-flat frequency response. SMT (Surface Mount Technology) triples small-signal component density, enabling us to pack up to 2400 watts of power in a chassis only 2 rack spaces and less than 16" deep. And unlike other designs, RMX output devices are direct-mounted to the heat sink for optimum thermal coupling and cooling.
Features
Independent defeatable clip limiters reduce distortion without sacrificing peak performance.
Selectable low-frequency filters boost system response, protect speakers, and ensure low-end tightness by more precisely matching the amplifier's range to the loudspeakers.
Barrier strip, XLR, and 1/4" balanced inputs plus Speakon and binding post outputs provide easy connections.
Low-noise variable speed fans with rear-to-front air flow keep amplifiers and racks cool.
TECHNICAL DESCRIPTION
Stereo Mode (EIA: both channels driven)
8 ohms EIA 1 kHz 0.1% THD: 280W
4 ohms EIA 1 kHz 0.1% THD: 450W
2 ohms EIA 1 kHz 1% THD: 700W
Bridge Mono Mode
8 ohms EIA 1 kHz 0.1% THD: 900W
4 ohms EIA 1 kHz 1% THD: 1400W
Signal to Noise (20 Hz-20 kHz): 100dB
Distortion (SMPTE-IM): Less than 0.01%
Input Sensitivity @ 8 ohms: 1.12v (+3.4 dBu)
Voltage Gain: 40x (32 dB)
Output Circuitry: AB
Current Consumption (1/8 power pink noise at 4 ohms @ 120VAC,both channels driven; multiply current by .5 for 230V units.): 7A
Distortion (typical): 20 Hz-20 kHz: 10 dB below rated power: Less than 0.03% THD 4 and 8 ohms
1.0 kHz and below: full rated power: Less than 0.03% THD 4 and 8 ohms
Frequency Response: 20 Hz-20 kHz, ? 0/-1 dB, -3 dB points: 5 Hz-50 kHz
Damping Factor (1 kHz and below): greater than 300 at 8 ohms
Input Impedance: 10 K ohms unbalanced, 20 K ohms balanced
Input Clipping: 10 Vrms (+22dBu)
Cooling: Continuously variable speed fan, rear-to-front air flow
Connectors (each channel): Input: Active balanced; barrier strip, XLR,and 1/4" (6.3 mm). TRS tip and XLR pin 2 positive
Output: "Touch-proof" binding posts and Neutrik Speakon
Controls: Front: AC switch, Ch.1 and Ch.2 gain knobs
Rear: 10-position DIP switch
Indicators: PWR-ON: Green LED SIGNAL: Yellow LED (1 per channel) CLIP: Red LED (1 per channel)
Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads.
Load Protection: Turn-on/off muting, AC coupling (850, 1450), triac crowbar (2450, on each channel)
Power Requirements: 100, 120, 230 VAC, 50-60 Hz
Dimensions: rack mounting: 48.3cm (19"); 8.9cm (3.5") tall (2 rack spaces); 40cm (15.9") deep (rack mounting to rear support ears)
Net Weight: 18.2 kg (40 lbs.)
8 ohms EIA 1 kHz 0.1% THD: 280W
4 ohms EIA 1 kHz 0.1% THD: 450W
2 ohms EIA 1 kHz 1% THD: 700W
Bridge Mono Mode
8 ohms EIA 1 kHz 0.1% THD: 900W
4 ohms EIA 1 kHz 1% THD: 1400W
Signal to Noise (20 Hz-20 kHz): 100dB
Distortion (SMPTE-IM): Less than 0.01%
Input Sensitivity @ 8 ohms: 1.12v (+3.4 dBu)
Voltage Gain: 40x (32 dB)
Output Circuitry: AB
Current Consumption (1/8 power pink noise at 4 ohms @ 120VAC,both channels driven; multiply current by .5 for 230V units.): 7A
Distortion (typical): 20 Hz-20 kHz: 10 dB below rated power: Less than 0.03% THD 4 and 8 ohms
1.0 kHz and below: full rated power: Less than 0.03% THD 4 and 8 ohms
Frequency Response: 20 Hz-20 kHz, ? 0/-1 dB, -3 dB points: 5 Hz-50 kHz
Damping Factor (1 kHz and below): greater than 300 at 8 ohms
Input Impedance: 10 K ohms unbalanced, 20 K ohms balanced
Input Clipping: 10 Vrms (+22dBu)
Cooling: Continuously variable speed fan, rear-to-front air flow
Connectors (each channel): Input: Active balanced; barrier strip, XLR,and 1/4" (6.3 mm). TRS tip and XLR pin 2 positive
Output: "Touch-proof" binding posts and Neutrik Speakon
Controls: Front: AC switch, Ch.1 and Ch.2 gain knobs
Rear: 10-position DIP switch
Indicators: PWR-ON: Green LED SIGNAL: Yellow LED (1 per channel) CLIP: Red LED (1 per channel)
Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads.
Load Protection: Turn-on/off muting, AC coupling (850, 1450), triac crowbar (2450, on each channel)
Power Requirements: 100, 120, 230 VAC, 50-60 Hz
Dimensions: rack mounting: 48.3cm (19"); 8.9cm (3.5") tall (2 rack spaces); 40cm (15.9") deep (rack mounting to rear support ears)
Net Weight: 18.2 kg (40 lbs.)
CATALOG DESCRIPTION
Reliable, clean, dynamic QSC power@Flat frequency response and super-low distortion@Defeatable clip limiters on each channel; switchable low-cut filter@Variable-speed fans with rear-to-front air flow@280 watts per side at 8 ohms; 1400 watts bridged mono@Barrier strip, XLR, and 1/4" inputs; Speakon and binding post outputs
REVIEWS
Product rated 8.3 out of 10 (36 ratings)
