Rolls DB25 Matchbox Direct Box
Takes high impedance signal to low impedance via shielded transformer balancing.
Product rated 10.0 out of 10 (2 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

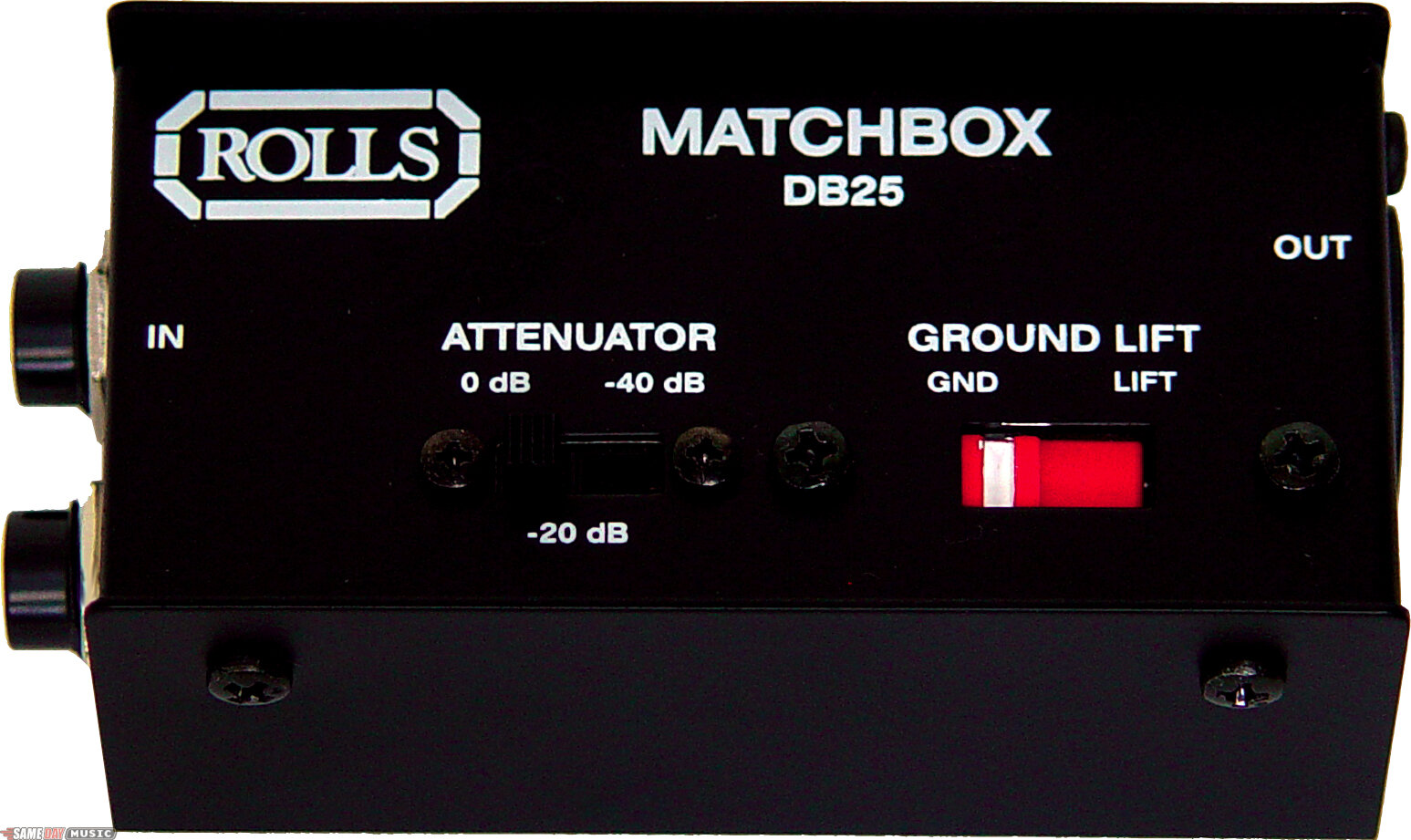

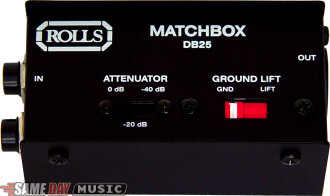

The DB25 is a transformer-balanced, passive direct box. The Attenuator cuts the signal from speaker outputs, or hot line outputs so the audio mixer input does not distort. The 1/4 in. Input jacks are paralleled so either one may be used.
This direct box converts high-impedance to low-impedance and vice cersa. It has a ground lift for hum reduction, and an attenuator switch for connection to line level or speaker level signals.
This direct box converts high-impedance to low-impedance and vice cersa. It has a ground lift for hum reduction, and an attenuator switch for connection to line level or speaker level signals.
TECHNICAL DESCRIPTION
Frequency Response: 50 - 15K Hz + -3 dB
Output Impedance: 600 ohms
Imput Impedance: 50K ohms
Max output level: 10 dBm
Polarity: + Pin 2 (XLR)
Output Impedance: 600 ohms
Imput Impedance: 50K ohms
Max output level: 10 dBm
Polarity: + Pin 2 (XLR)
