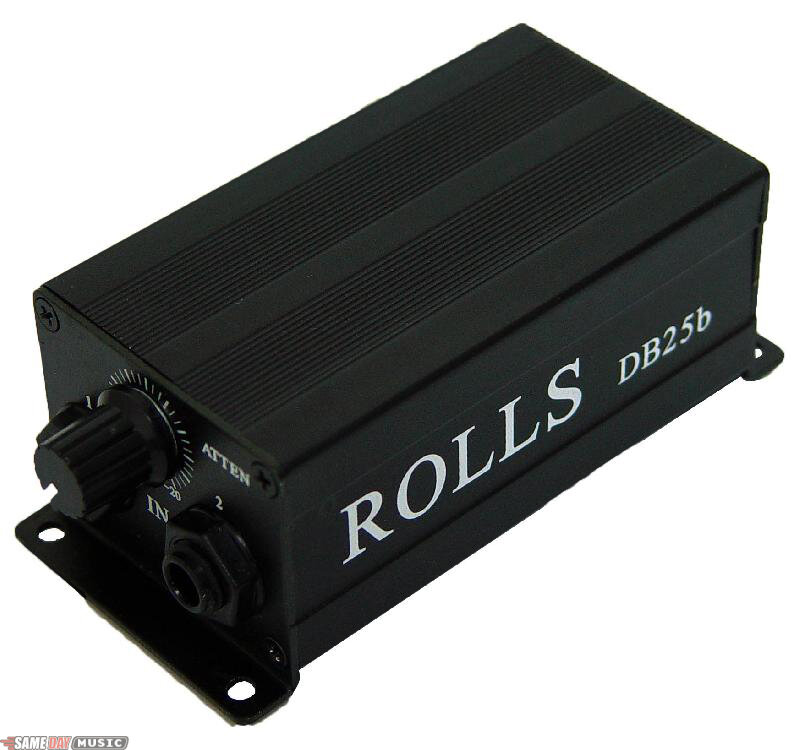

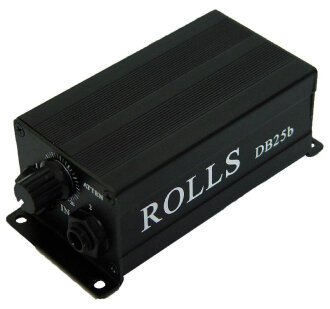

    Rolls DB25B Balanced Passive Direct Box

    Transformer balanced, passive direct box. Two 1/4 in. inputs.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Rolls DB25B Passive Direct Box Product Description

    The DB25B is a transformer balanced, passive direct box. It features a Ground Lift switch for hum elimination, and an Attenuator control for padding the input signal from -20dB to -infinity dB. Padding the input signal provides a way to connect the DB25B to a line level signal, even a speaker level signal and connecting it to a balanced line or Mic input on a mixer. The two 1/4-inch inputs are paralleled pass-throughs to also send the input signal to a tuner, preamp, etc.

    Features:

    - Mounting Tabs make it easy to attach to any surface
    - Attenuator knob to dial in the exact level you want
    - Controls only on the front and back for "brick wall" multiples
    - Basic black color for matching any decor

    Same Day Music is an authorized dealer of Rolls products.

    Rolls DB25B Technical Description

    - Frequency response: 50 - 15K Hz + -3 dB
    - Output imp.: 600 ohms
    - Input Impedance: 50K ohms
    - Max output level: 10 dBm
    - Size: 4.5L X 2W X 1.625H
    - Weight: 8 oz, 0.23kg

    Same Day Music is an authorized dealer of Rolls products.
    Shipping Weights and Dimensions
    Shipping Weight: 1 lbs
    Shipping Dimensions: 6 x 5 x 2 in
