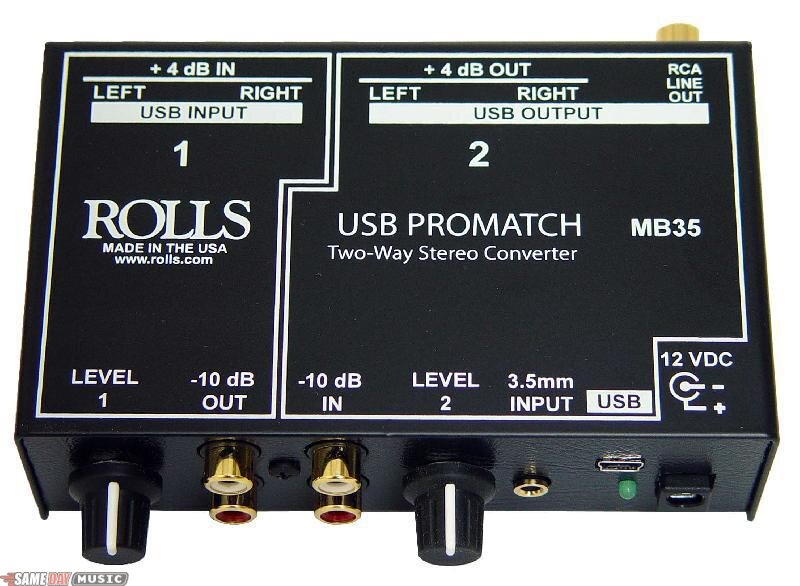

The MB35 converts stereo consumer level signals to professional line level signals - and vice versa. It may also serve as a balanced inline level control by patching the four RCA jacks together. IMPORTANT USB NOTE: When connecting the USB, your computer should recognize the connection. Rolls offer no support for using or setting up the USB, or interfacing with applications.
Features
Stereo Direct Box
Stereo RCA to stereo XLR
Stereo Level control for each channel
Works as stereo balanced line level control
1/8 in. Headphone level to line level adaptor
USB input/output for connection to USB 1.0 or USB 2.0
USB Mini-Plug Output
USB uses BurrBrown chip set
Max Out: Balanced: +18 dB, Unbalanced: +12 dB
Max In: Balanced: +22 dB, Unbalanced: +22 dB
Input Impedance: RCA : 100k Ohm, XLR: 10 k Ohm, 1/8 in. stereo: 10k Ohm
Output Impedance: RCA: 100 Ohm, XLR: 100 Ohm balanced
Noise Floor: -88 dB
Gain: +4 dB In: -8 dB, -10 dB In: + 20 dB
THD: .003%
Power: 12 VDC adapter (center negative)
Size: 4.15 x 2.46 x 1.55 in.
