    Rolls MX54S Promix Plus Battery Powered Mixer

    The MX54S Promix Plus mixes three microphones into two transformer balanced outputs.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Rolls MX54S Promix Plus Stereo Microphone Mixer Product Description

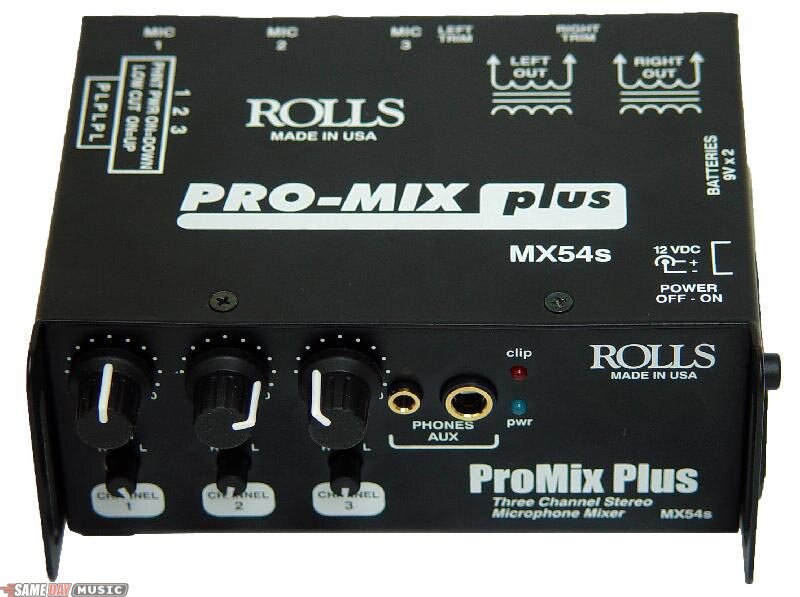

    The MX54S Promix Plus mixes three microphones into two transformer balanced outputs. It has three XLR inputs, each with individually switchable phantom power, and Low Cut switches, a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries.

    Features
    Mixes three microphones to stereo XLR outputs

    Output level controls for mic or line-level output

    Transformer isolated outputs

    Phantom Power and Low-Cut switches for each Mic input

    Battery and AC powered

    Handy shoulder strap mounts

    Same Day Music is an authorized dealer of Rolls products.

    Rolls MX54S Promix Plus Stereo Microphone Mixer Technical Description

    Input Impedance: 600 Ohms

    Output Impedance: XLR 600 Ohms

    THD + Noise: .02%

    S/N Ratio: 84 dB

    Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB)

    Max Output Level: + 14 dB

    Max Input Level: -14 dB

    Max Gain: +60 dB

    Low Cut: -3 dB @ 100 Hz

    Current Draw: 20 mA

    Phantom Power: +18 VDC

    Connectors: 3: Female XLR, 2: Male XLR, 1: 1/4 in. TRS, DC Power Jack

    Size (WxDxH): 5.3 x 3.7 x 2 in.

    Weight: 1 lbs.

    Same Day Music is an authorized dealer of Rolls products.
