Rolls RM65B 6 x 4 Mixer
Rack-mount, console-type mixer. Ideal for small clubs or small performing groups who need a good quality portable mixer.
Product rated 5.0 out of 10 (2 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Hosa CSS400 TRS Cable
- from $10
- Hosa Y Cable - 6 inch (Stereo 1/4 inch Phone Male to 2 Mono 1/4 inch Phone Female) (Model YPP117)
- $6
- Shure SM57 Microphone
- from $99
- dbx 266XL Compressor
- $150
ADDITIONAL VIEWS:

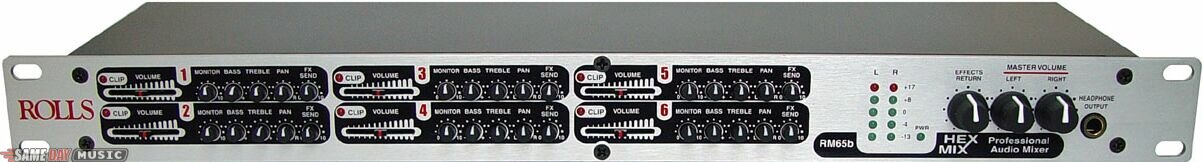

Front
Rear
PRODUCT DESCRIPTION
Each channel of the RM65b has a monitor send, FX send, bass and treble controls, and a volume slider. Each XLR input has a trim control on the rear panel.
Features
6 XLR and 1/4 in. inputs
Individual phantom power
Input Trim, Monitor, FX Send, and Pan on each Channel
Treble and Bass Control on each channel
FX Return may be used as additional input
Stereo Aux Bus input
Stereo effects loop
Front panel headphone output
External power supply for outstanding noise performance
Each channels' 1/4 in. inputs may be internally configured as inserts.
Features
6 XLR and 1/4 in. inputs
Individual phantom power
Input Trim, Monitor, FX Send, and Pan on each Channel
Treble and Bass Control on each channel
FX Return may be used as additional input
Stereo Aux Bus input
Stereo effects loop
Front panel headphone output
External power supply for outstanding noise performance
Each channels' 1/4 in. inputs may be internally configured as inserts.
TECHNICAL DESCRIPTION
Input Impedance: 600 Ohms balanced, 10 kOhms unbalanced
Output Impedance: 50 Ohms Max Input Level: +10 dBm XLR, +17 dBV 1/4 in.
Output Level: +17 dBV max
Max Gain: 80 dB XLR, 74 dB 1/4 in.
Phantom Power: +12 VDC Tone Controls: 15 dB boost/cut, 80Hz, 2.5kHz
S/N Ratio: 106 dB
THD: <.003
IMD (SMPTE): <.003 CMRR: 52 dB (typ) mic
Size: 19 x 1.75 x 6 in. (48.3 x 4.5 x 15cm)
Output Impedance: 50 Ohms Max Input Level: +10 dBm XLR, +17 dBV 1/4 in.
Output Level: +17 dBV max
Max Gain: 80 dB XLR, 74 dB 1/4 in.
Phantom Power: +12 VDC Tone Controls: 15 dB boost/cut, 80Hz, 2.5kHz
S/N Ratio: 106 dB
THD: <.003
IMD (SMPTE): <.003 CMRR: 52 dB (typ) mic
Size: 19 x 1.75 x 6 in. (48.3 x 4.5 x 15cm)
