    Rane MP26 USB DJ Mixer with Effects

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    FIND SIMILAR PRODUCTS

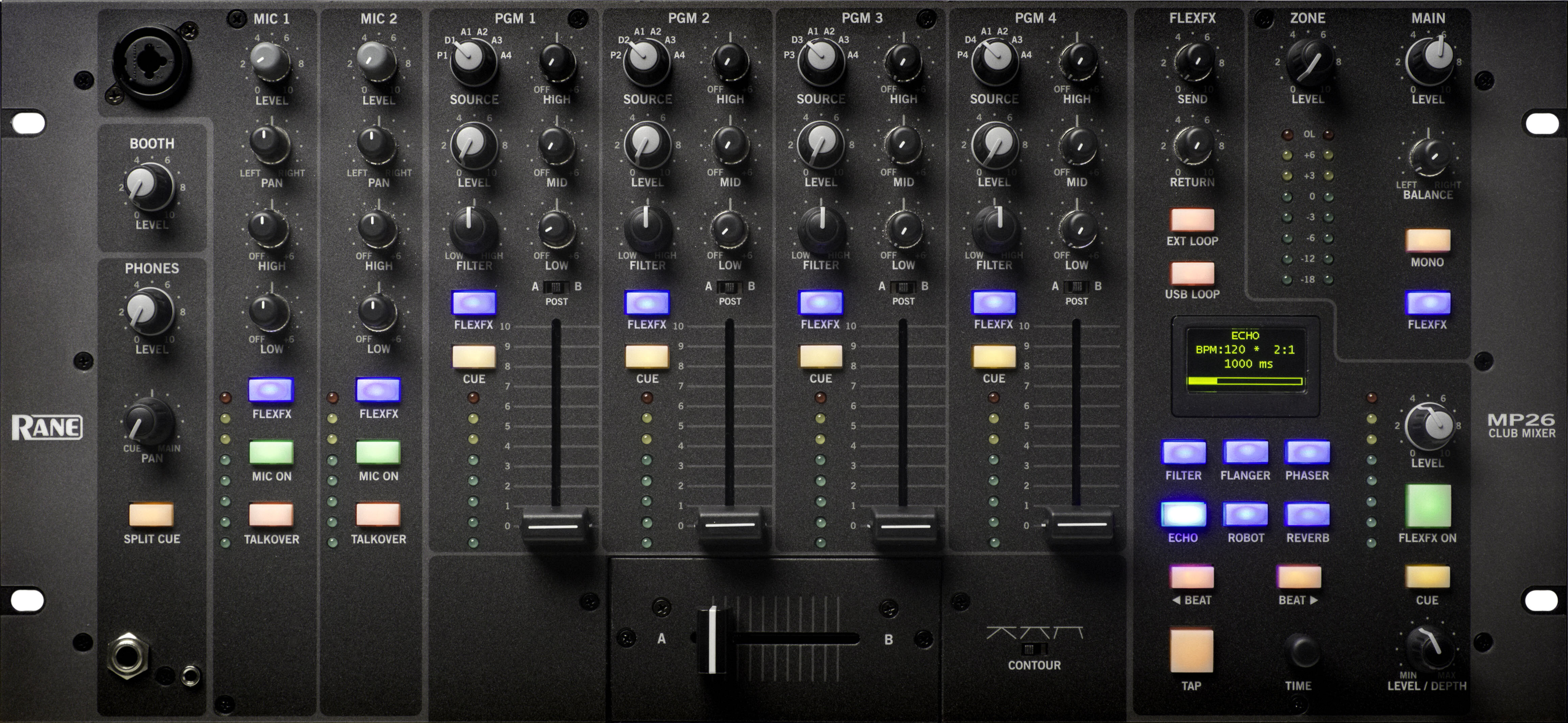

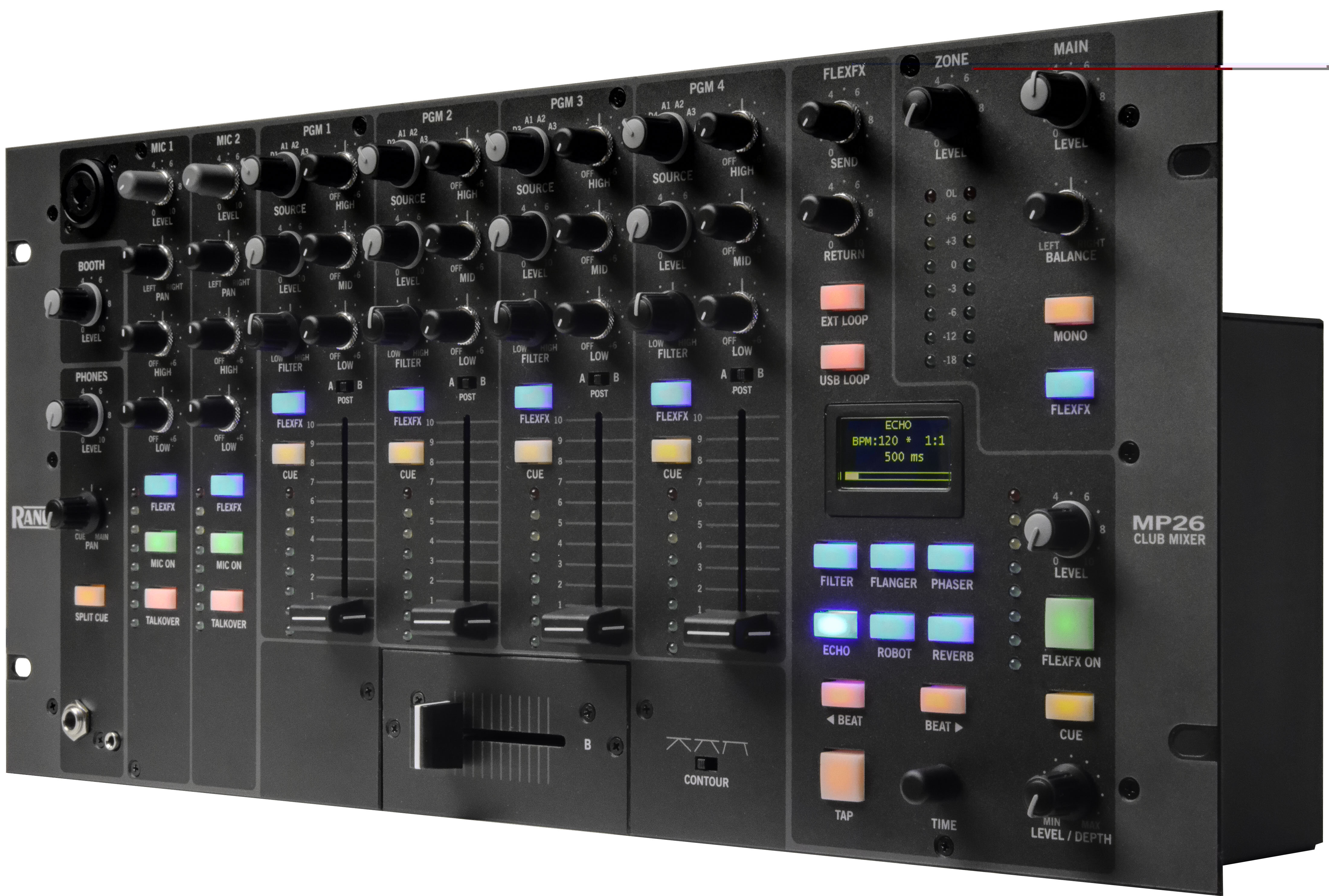

    Rane MP26 USB DJ Mixer with Effects Product Description

    The Rane MP26 Mixer satisfies the audio and ergonomic demands of performing DJs in a 19 in. rack format preferred by nightclubs, with a shallow design that drops into a mobile rig. The MP25 (4U high) and MP26 (5U high) come from the same USB mixer design, with the MP26 adding internal digital effects.

    Sporting two microphone inputs, four studio-grade phono preamps, four analog aux inputs, four low-latency stereo USB inputs, analog and USB effects insert loops, internal effects processor, and a variety of analog and digital outputs; the Rane MP26 remains rooted in analog tradition while reaching new heights of digital connectivity.

    Reliable, low-latency, multi-client ASIO and Core Audio drivers interface the Rane MP26's twenty-two USB audio channels directly to your favorite multitrack mixing, beat-making, looping, effects, and recording applications. Additionally, the MP26's front panel controls are MIDI enabled, allowing manipulation of software parameters directly from the mixer's control surface.

    Features:

    - Inputs:
    - Four individually switchable stereo Phono/Line inputs.
    - Four stereo Auxiliary inputs.
    - Four stereo USB playback inputs.
    - Two microphone inputs with optional Talkover ducking:
    - One with front and rear panel connectors.
    - One with a line-level input option.
    - Engage a mic to put it into the mix, or engage Talkover to put the mic in the mix and duck all other sources. Talkover makes it easy to jump into the mix for quick, intelligible announcements.
    - Outputs:
    - Stereo Main Outputs on balanced XLR and unbalanced RCA:
    - Rear panel Mono/Stereo switch.
    - Rear panel Max Out level attenuator.
    - Stereo balanced 1/4" TRS Zone and Booth outputs:
    - Auto-mono output on both Left and Right jacks.
    - Stereo Record outputs on RCA, S/PDIF and USB.


    Same Day Music is an authorized dealer of Rane products.

    Rane MP26 USB DJ Club Mixer with Effects Technical Description

    - Phono/Line, Aux, FlexFX Inputs: 4 stereo unbalanced RCA jacks
    - Phono or Line Level: Rear panel switch for each Phono/Line input
    - Phono Response: RIAA curve +/-1 dB, Gain = 36 dB @ 1 kHz
    - Max Phone Input: 63 mV @ 1 kHz
    - Max Line Input: 4 Vrms
    - Mic Inputs: Balanced 1/4" TRS & XLR combination jacks
    - Mic 1: Front and rear panel jacks
    - Mic 2: Rear panel jack with Mic/Line-level switch
    - Max Input (Mic Level): 185 mVrms (-12.5 dBu)
    - Max Input (Line Level): 3.7 Vrms (13.6 dBu)
    - EIN (Equivalent Input Noise): -110 dBu
    - FlexFX: Unbalanced 1/4" tip-sleeve
    - Send: Auto-mono, Left and Right Output jacks
    - Return: Auto-mono, Left and Right Input jacks
    - Outputs: Main, Zone, Booth, Record, FlexFX: Balanced XLR & 1/4" TRS, unbalanced RCA and 1/4" TS
    - Frequency Response: 20 Hz to 20 kHz, +0.25 dB / -1.5 dB
    - THD+N: <0.03% re 0 dBFS, 20 to 20 kHz, 20 kHz BW
    - RCA and Unbalanced 1/4" TS: Max output 4 Vrms
    - XLR and Balanced 1/4" TRS: Max output 8 Vrms
    - Zone/Booth: Auto-mono, left and right jacks
    - Main Output: Mono switch, rear panel attenuator (0 to -24 dB)
    - Dynamic Range, Line In to Line Out: 100 dB A-weighted
    - Analog to Digital Converters (ADCs):
    - 24-bit, 48 kHz:
    - Dynamic range 101 dB A-weighted:
    - Digital to Analog Converters (DACs): 24-bit, 48 kHz
    - Dynamic range 107 dB A-weighted:
    - Digital Signal Processing (DSP): 48 kHz, 32-bit, floating-point
    - USB Audio: 48 kHz, 32-bit, floating-point
    - Stereo Record Channels: 6
    - Stereo Playback Channels: 5
    - Universal Internal Power Supply: 100 to 240 VAC, 50 Hz to 60 Hz, 12 W max
    - USB Power: Mixer is self-powered
    - Unit: Agency Listing: c/CSA/us
    - Construction: All Steel
    - Size (Inches): 8.75" (5U) H x 19" W x 4.6" D
    - Size (Metric): 22 cm x 48.3 cm x 11.7 cm
    - Weight: 10.1 lb (4.58 kg)
    - Shipping: Size (L x W x D): 21.5 x 11.875 x 7.25 in., (54.6 x 30.2 x 18.4 cm)
    - Weight: 14 lb (6.35 kg)
