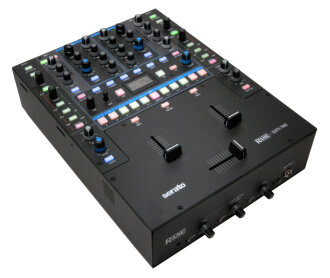

Rane SIXTY-TWO Mixer for Serato Scratch Live

Rane and Serato are proud to introduce the Rane Sixty-Two Mixers for Serato Scratch Live. For more than a decade, artists have chosen innovative Rane instruments to advance their art and three generations of TTM series mixers have been the top pick for many of the world's best performers. These mixers more tightly integrate performers, music, software, and hardware. The artist adds the passion, imagination and skills.

The Plug-and-Play Package supports two computers, two-deck digital vinyl simulation, SP-6 sample player. The system includes a fully integrated MIDI controller for software controls, hardware effects, and all the record and playback channels you need. The included Serato Scratch Live bundle and software controls for Library, Loops, Cues and SP-6 are laid out for fast and intuitive access.

A typical setup uses two Scratch Live DVS channels, SP-6 sample player on an independent USB Aux playback channel and software effects enabled on the USB digital insert in the FlexFx loop. This setup also allows recording PGM1 post-fader, PGM2 post-fader and the main mix.

Same Day Music is an authorized dealer of Rane products.

Analog Inputs 4 Stereo unbalanced RCA jacks
- Phono or Line level input Rear panel switches for each input
- Phono Response RIAA +/-1 dB, Gain: 30 dB at 1 kHz
- Max Phono Input 150 mV
- Max Line Input 4 Vrms
ADCs 24-bit, 48 kHz; Dynamic range 101 dB A-weighted
DACs 24-bit, 48 kHz; Dynamic range 107 dB A-weighted
Digital Signal Processing 48 kHz, 32-bit floating point
USB Audio Six Stereo Record, Four Stereo Playback; 48 kHz, 32-bit floating point
FlexFX Return Stereo unbalanced 1/4" TS (tip-sleeve) phone jack
- Send Stereo unbalanced 1/4" TS phone jack

Mic Input Balanced 1/4" TRS & XLR combination jack
- Tone Controls 2-band, High and Low
- Mic-Line level switch Choose Line to connect wireless receiver
Line Outputs: Frequency Response 20 Hz to 20 kHz +/-0.25 dB, Line in to

Line out:
- THD+N <0.01 re 0 dBFS, 20 to 20 kHz, 20 kHz BW
- Unbalanced jacks (RCA & FlexFX) Maximum 4 Vrms
- Balanced jacks (Main and Booth) Maximum 8 Vrms

Internal Universal Power Supply 100 to 240 VAC, 50 Hz to 60 Hz, 15 W max
USB Power Mixer is self-powered
Unit Size: 14.25" x 10.5" x 4" (36.2 cm x 26.7 cm x 10.2 cm)
- Weight 10 lb (4.3 kg)
Shipping Size 7.75" H x 15" W x 19.25" D
(19.7 cm x 38.1 cm x 49 cm)
- Weight 14 lb (6.4 kg)

Scratch Live System Requirements

PLEASE NOTE: These are the minimum requirements to run Scratch Live. For best performance and for use in professional situations we recommend you buy a higher spec computer. We also recommend Intel processors.

- Available 2.0 USB port.
- 1024 x 768 screen resolution.
- 5400 RPM hard drive. 7200 RPM for high-resolution audio playback.
- 2 GB RAM (a large library will like more RAM).

Mac
- Intel 1.83 GHz Core Duo or better.
- OSX 10.5.8 or higher.

WINDOWS
- Intel processor, 2.2 GHz Core Duo or better.
- Windows XP with Service Pack 3 or higher.
- Windows Vista with Service Pack 2 or higher.
- Windows 7, recommended over Vista.

Note 1: Please read the FAQs at serato.com/support/scratchlive first if you are looking at buying a new computer.

Note 2: If you are using Scratch Live 2.x's more system intensive features such as DJ FX or AUX Deck plugins and are having issues you may need a higher spec computer for best results or make sure you have optimized your system: Windows 7 and Vista / Mac OS X.

Same Day Music is an authorized dealer of Rane products.

Shipping Weights and Dimensions

with Free Gator G Club Mixer Bag

Shipping Weight: 16 lbs

Base Item

Shipping Weight: 14 lbs

Shipping Dimensions: 19 x 15 x 8 in
