Product Description

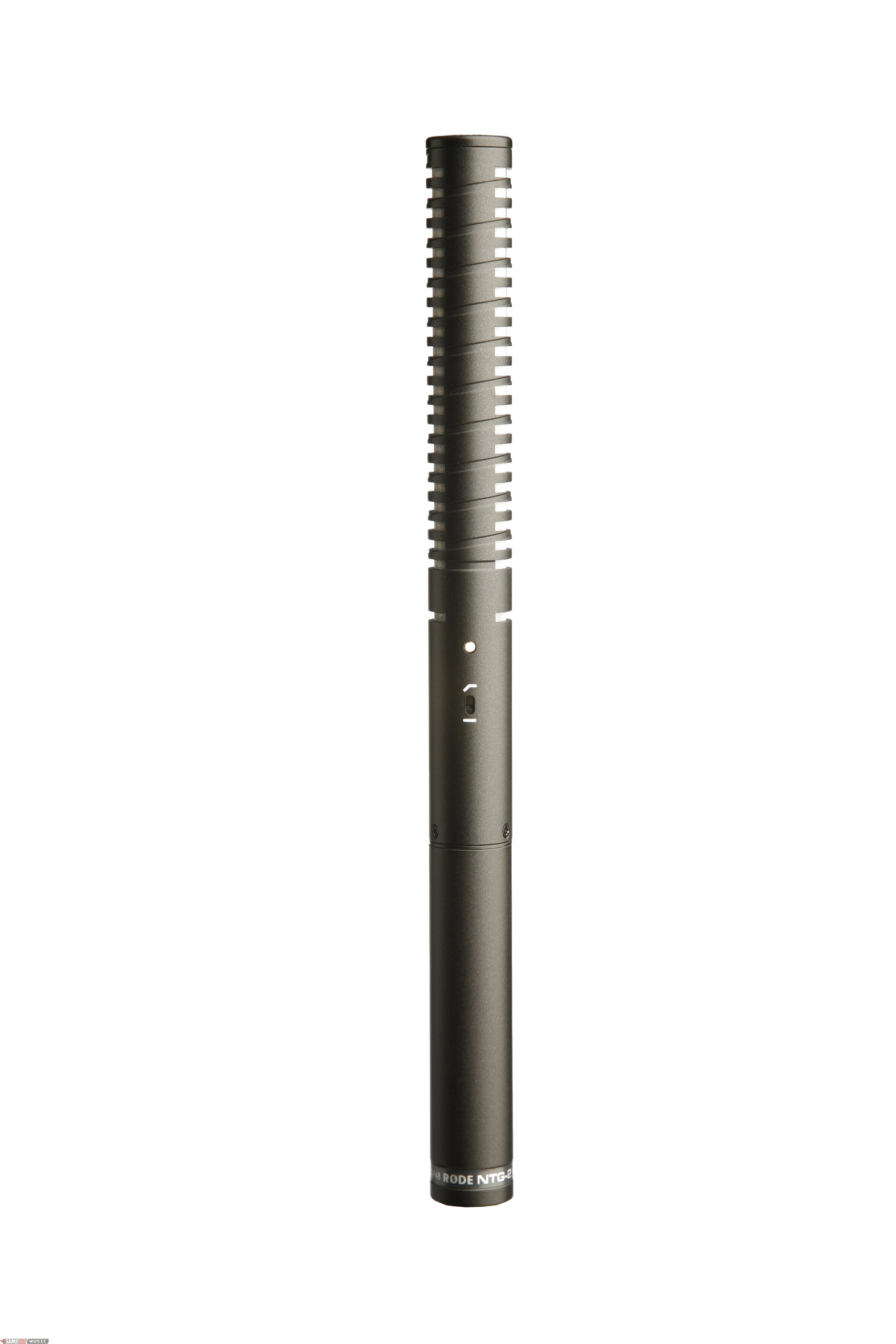

The new RODE NTG-2 is a lightweight condenser shotgun microphone, designed for professional applications within the film, video, television and production industries.

The NTG-2 provides a balanced low impedance output stage and operates either from an internal 1.5 V battery (AA) or 48 V to the P48 standard. A wide-bandwidth and controlled polar response coupled with low noise SMT electronics, makes the NTG-2 the perfect choice for film, video engineering and voice-over work. The NTG-2 is extremely lightweight making it ideal for mounting directly to video cameras or on boom poles.

The NTG-2 comes complete with mount and windshield. The windscreen effectively suppresses wind noise when recording outdoors in moderate conditions.

Features
Broadcast sound quality.

Rugged metal construction.

Condenser microphone transducer.

Weighing 161 grams approx. (5.17 oz.).

Low noise circuitry.

Low handling noise.

Supplied with stand mount and zip pouch.

Designed & manufactured in Australia.

Full 2 year guarantee.

Technical Description

Operation power: The NTG-2 is designed to operate from standard P48 phantom power or a 1.5 V Alkaline Battery. The NTG-2 will operate between 44 V to 52 V applied with positive polarity to pin 2 and pin 3 via the output XLR connector.

Operation output impedance: The NTG-1 will operate satisfactorily into a load impedance as low as 1 kilohm. If a load below this is used, the output signal level will be reduced. The NTG-2s output is balanced between pin 2 (hot), pin 3 (cold) and pin 1 is ground.

Acoustic principle: Line plus Gradient.

Directional pattern: Super-Cardioid.

Frequency range: 20 Hz ~ 20 kHz selectable HPF @ 80 Hz/12 dB octave

Output impedance: 250 ohms -- phantom power, 350 ohms -- battery power

Signal noise ratio din iec 651: 76 dB (1 kHz rel. 1 Pa; per IEC651, IEC268-15)

Equvalent noise: 18 dB SPL (per IEC651, IEC268-15)

Maximum spl: 131 dB (@ 1% THD into 1 kilohm)

Sensitivity: -36 dB re 1 Volt/Pascal (15 mV @ 94 dB SPL) +/- 2 dB (at 1 kHz in free field into open circuit)

Dynamic range din iec 651: 113 dB (per IEC651, IEC268-15)

Power supply voltage: 1.5 V Alkaline Battery or P48 Phantom

Current consumption: 2.0 mA

Output connection: 3 pin XLR, balanced output between pin 2 (+), pin 3 (-) and pin 1 (ground)

Weight with battery: 161 g approx. (3.37 oz.)

Dimensions width: 278mm

Dimensions depth: 22mm

Dimensions height: 22mm

Catalog Description

Lightweight shotgun condenser@Broad frequency response@Presence peak adds clarity@Phantom or AA battery power@Includes stand mount and windscreen
