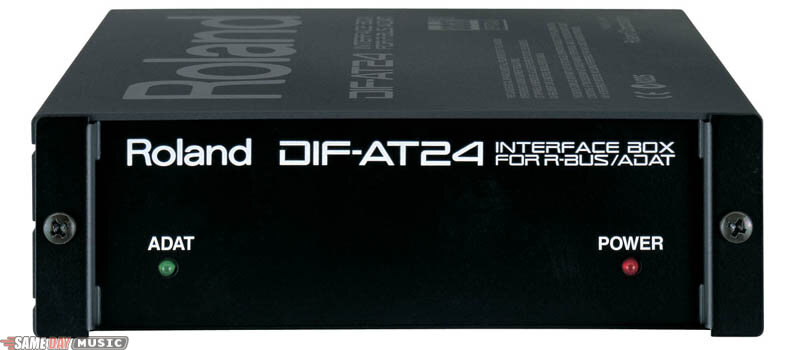

Roland DIFAT24 Interface Box for RBUS/ADAT
44.1/48kHz, 16/20/24-bit, 1/3 rackmount box
Product rated 7.8 out of 10 (4 ratings)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The DIF-AT24 Interface Box easily converts the 8-channel R-BUS audio format found on V-Studios and the MV-8000 to the popular ADAT format. As such, this 1/3 rackmount box is ideal for transferring audio between your Roland gear and a lightpipe-compatible audio card or digital mixer. And with MIDI built-in, the DIF-AT24 can also be used to expand the MV-8000's available MIDI outputs.
Features
1/3 rackmount audio interface converts Roland's 8-channel R-BUS format to ADAT
Supports up to eight channels of 24-bit I/O via optical connections
MIDI In/Out for synchronized recording between V-Studio and ADAT/PC
MIDI Out port can be used to expand MV-8000's MIDI output channels
Selectable master clock: R-BUS or ADAT
No power supply needed
Features
1/3 rackmount audio interface converts Roland's 8-channel R-BUS format to ADAT
Supports up to eight channels of 24-bit I/O via optical connections
MIDI In/Out for synchronized recording between V-Studio and ADAT/PC
MIDI Out port can be used to expand MV-8000's MIDI output channels
Selectable master clock: R-BUS or ADAT
No power supply needed
TECHNICAL DESCRIPTION
Sampling Frequency: 44.1/48kHz
Audio Data Format: 16/20/24-bit
Indicators: Power indicator, ADAT indicator
Connectors: R-BUS connector, ADAT optical connectors in,out, MIDI connectors in,out
Power Supply: Supplied from connected R-BUS device
Accessories: R-BUS cable (1 m), Owner's manual
Size and Weight
Dimensions (W x D x H): 138 x 197 x 43 mm (5-7/16 x 7-13/16 x 1-3/4 in.)
Weight: 0.5 kg (1 lbs. 2 oz.)
Audio Data Format: 16/20/24-bit
Indicators: Power indicator, ADAT indicator
Connectors: R-BUS connector, ADAT optical connectors in,out, MIDI connectors in,out
Power Supply: Supplied from connected R-BUS device
Accessories: R-BUS cable (1 m), Owner's manual
Size and Weight
Dimensions (W x D x H): 138 x 197 x 43 mm (5-7/16 x 7-13/16 x 1-3/4 in.)
Weight: 0.5 kg (1 lbs. 2 oz.)
