    Roland FC300 Guitar MIDI Foot Controller

    2 assignable expression pedals. 2 control pedals. 9 footswitches and expandability.
    Product Rated 9.9 Out of 10 (5 ratings)
    **********
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 12B6-K128

    Web Item #ROLFC300

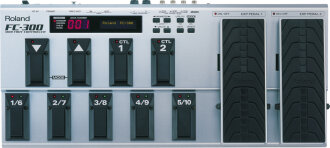

    Roland FC300 Guitar Foot Controller
    ADDITIONAL VIEWS:
    View Larger Image

    More Resources

    Manuals and Documents: Manual
    Roland Warranty: If you have additional warranty questions, please call the manufacturer at 323-890-3700
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    Order Now | Limited Qty
    •
    • 2 Day: $10
    • Overnight: $40
    SpeedPlay: 2 payments of $224.50
    $449 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Roland FC300 Guitar Foot Controller Product Description

    The FC-300 sets a new standard of power, versatility and innovation for MIDI foot control. With features such as bi-directional MIDI data flow to the Roland VG-99 via newly adopted RRC2, patch memory recall, twin expression and control pedals and more, this advanced control station is a perfect companion for Roland's new VG-99 V-Guitar System or any other performance-based MIDI instrument or device.

    Features:
    Advanced MIDI foot controller with 2 assignable expression pedals, 2 control pedals, 9 footswitches and expandability

    New Patch Mode stores up to 100 MIDI setups

    In addition to standard MIDI connection, newly developed RRC2 protocol adapted for bidirectional data flow between FC-300 and Roland RRC2-equipped products

    3-way power supply and rock-solid metal construction for stage use

    2 Amp Control switches for controlling amp channels or effects

    Perfect companion for the new VG-99

    Control & Expression
    The FC-300 is outfitted with nine industrial-grade footswitches and 2 programmable expression pedals for fast, easy control and expanded performance capabilities. The backlit LCD offers a high contrast view of patch names (when used with VG-99) and other important data, even in the darkest stage environments.

    Power Patches
    Up to 100 sets of MIDI messages/parameters can be stored simultaneously in the FC-300 as patches. Complex MIDI transmission is made simple thanks to the FC-300's ability to package chunks of data together in a single patch, and then transmit each data-burst via footswitch.

    Advanced Connectivity
    Using commercially available LAN (Ethernet, CAT5) cable and the newly-adapted RRC2 protocol, the FC-300 provides both bidirectional MIDI transmission and electrical power supply with one simple connection between VG-99 and FC-300.

    Programmable Switching
    Two multi-purpose switch-jacks are built into the FC-300. These programmable outputs are an ideal feature for guitarists, as they allow amp channels to be switched from clean to lead, for example, in sync with patch changes on the FC-300

    Same Day Music is an authorized dealer of Roland products.

    Roland FC300 Technical Description

    SPECS

    Controls:
    Number Pedal x 5 (1/6, 2/7, 3/8, 4/9, 5/10)
    DOWN/UP Pedals
    Control Pedal x 2 (1, 2)
    Expression Pedal x 2 (1, 2)
    PARAMTER Button x 2
    VALUE Button x 2
    UTILITY Button
    MODE Button
    EXIT Button
    WRITE Button
    POWER Switch

    Display:
    7 segments, 3 characters (LED)
    16 characters, 2 lines (backlit LCD)

    Indicators:
    MODE Indicator (STANDARD/CONTROL/SYS EX/PATCH)
    UTILITY Indicator
    WRITE Indicator
    Number Indicator x 10 (1--10)
    DOWN/UP Indicators
    Control Indicator x 2 (1, 2)
    Expression Pedal ON/OFF Indicator x 2 (1, 2)

    Connectors/Jacks:
    DC IN Jack
    MIDI Connectors (IN, OUT)
    RRC2 OUT Connector
    AMP CONTROL 1 Jack
    AMP CONTROL 2 Jack
    EXP PEDAL 3 / CTL 3, 4 Jack
    EXP PEDAL 4 / CTL 5, 6 Jack
    EXP PEDAL 5 / CTL 7, 8 Jack
    MODE Jack

    Number of PATCH (PATCH Mode): 100
    Power Supply: DC 9 V: AC Adapter, Dry Batteries AA type x 6 RRC2
    Current Draw:
    94 mA (ECONOMY MODE OFF)
    61 mA (ECONOMY MODE ON)

    Expected batery life under continuous use:
    Carbon:
    6.5 hours or longer (ECONOMY MODE OFF)
    12 hours or longer (ECONOMY MODE ON)
    * These figures will vary depending on the actual conditions of use.

    Accessories:
    Owner's Manual
    Dry Batteries R6 (AA) type (carbon) x 6
    Roland Service

    Options:
    AC Adaptor PSA serise (BOSS)
    Foot Switch: FS-5U (BOSS) , FS-6 (BOSS)
    Expression Pedal: EV-5, FV-500H/500L (BOSS)

    SIZE AND WEIGHT (DIMENSIONS)
    Width:
    550 mm
    21-11/16 inches

    Depth:
    250 mm
    9-7/8 inches

    Height:
    76 mm
    3 inches

    Weight:
    5.3 kg
    11 lbs. 11 oz.

    Same Day Music is an authorized dealer of Roland products.
    Shipping Weights and Dimensions
    Shipping Weight: 14 lbs
    Shipping Dimensions: 25 x 14 x 7 in
