Product Description

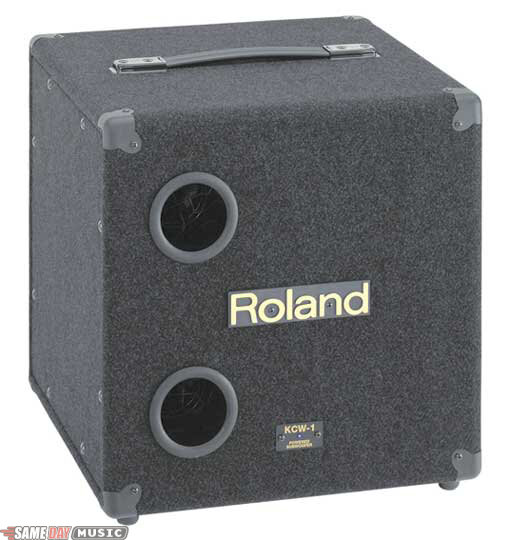

The KCW-1 Powered Subwoofer is a convenient way to add 200 watts of punchy low end to sub-out equipped KC amps, or to standard amplifiers via the stereo Thru output.

Features:
200-watt powered subwoofer for use with Roland's KC-Series amps

Stereo Thru Out jack (XLR and 1/4 in.) for amps without a Subwoofer output

Intuitive controls including Crossover knob, Phase switch and Bottom switch

Footswitch jack for switching on/off the powered woofer sound

Technical Description

Rated Power: 200 W

Nominal Output Level @ 100 Hz: THRU OUT : + 4 dBu (XLR / 1/4 in. Phone type)

Speakers: 10 in.(25cm) x 1

Nominal Intput Level @ 100 Hz: INPUT: + 4 dBu (XLR / 1/4 in. Phone type)

Knobs: VOLUME, CROSSOVER

Switches: BOTTOM, PHASE, POWER, GND LIFT

Indicator: POWER

Connectors
INPUT Connector L, R: XLR type
INPUT Jack L (MONO), R: 1/4 in. phone type
THRU OUT Connector L, R: XLR type
THRU OUT Jack L (MONO), R: 1/4 in. phone type
FOOT SW JACK: 1/4 in. phone type

Accessory: Owner's Manual

Options: DP-2 Pedal Switch; FS-5U FootSwitch (BOSS)

Size and weight
432 x 435 x 456mm; 17-1/16 x 17-1/8 x 18 in.
22kg; 48 lbs. 9 oz.

*0 dBu=0.775 Vrms
* The specifications are subject to change without notice

Catalog Description

Add deep bass to your KC amp setup@200-watt powered subwoofer@Stereo XLR and 1/4" thru out@Crossover, phase, and bottom controls
