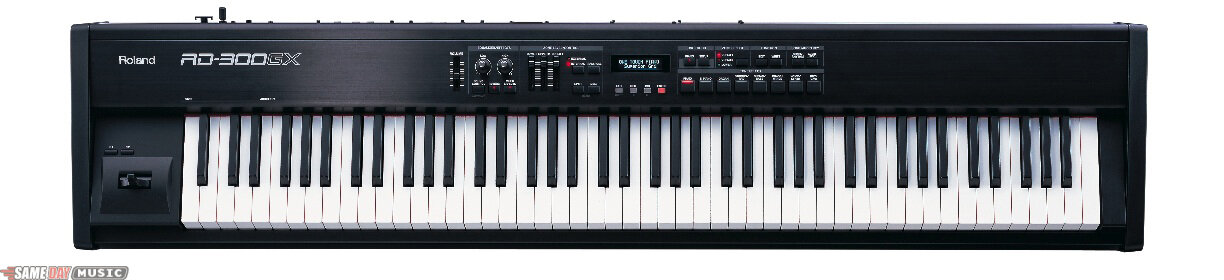

Product Description

Step onstage and step up to the world’s most impressive stage pianos, with amazing pianos and EPs onboard, plus audio-play and master control features. The RD700GX and RD300GX are powered by Roland’s latest sound engine for incredible sound quality.

Features

Stunning 88-key stereo multi-sampled piano sounds

88-key weighted keyboards: PHA alpha II

Audio playback of .WAV, AIFF, and MP3 files via USB memory; easy onstage control with Audio Key feature

Multiple zones for master-control functionality

Perfect Piano
The RD300GX features two sets of 88-key pianos soundsfrom the popular RD700SX. In addition to its super-expressive onboard piano sound-sets, other essential instruments are built into this new piano, including EPs. You can even customize and save your sounds for instant recall.

Perfect Touch
Your fingers will love the RD300GX’s PHA II alpha II weighted keyboard.

USB Audio Enhancement
Play audio through the RDGX directly from a USB memory key. Flexible file compatibility enables playback of Standard MIDI Files, .WAV, AIFF and MP3s. The "Audio Key" feature lets you use the bottom 15 keys for controlling start song, song length, etc. In addition, you can connect directly to a PC via USB and tap into Cakewalk SONAR LE software, included in every RDGX package.

Custom Shop
For those who like to get inside an instrument and customize its sounds, the RDGX’s Piano Designer feature is your key to unlocking and personalizing the sound-set, down to the smallest details such as Hammer Noise, Damper Resonance, Duplex Scale and more.

Master Control
Take your music to the stage. The RDGX series make great master controllers, thanks to multi-zone functionality.

Technical Description

Keyboard: 88 keys (PHA alpha II Keyboard)

Sound Generator:
- Conforms to General MIDI 2 System
- 88-key Stereo Multi-sampled Piano Sound

Part: 16

Maximum Polyphony: 128 voices

Wave Memory: 128 MB (16-bit linear equivalent)

Tones
Normal Tones: 110

General MIDI 2 Tones: 256

Rhythm Sets: 5

General MIDI 2 Rhythm Sets: 9

Setups: 32

Effects
Multi-Effects: 78 types

Reverb: 6 types

Sound Control

2-band Digital Equalizer

SMF/Audio File Player
File Format: Standard MIDI File: format-0/1, Audio File: WAV, AIFF (44.1 kHz, 16-bit linear), MP3

Audio File can be played with Audio Key Function.
Connectors

Output Jacks (L/MONO, R): 1/4 inch phone type, DAMPER Pedal, Control Pedal, MIDI (IN, OUT), USB (MIDI, Memory), Headphones Jack: Stereo 1/4 inch phone type, DC IN Jack

Others
Rhythm Pattern: 200 patterns

Display: 16 characters, 2 lines (Backlit LCD)

Controllers: Zone Level slider x 3 (Assignable), Equalizer knobs, Pitch Bend/Modulation lever, Assignable Switches (S1, S2)

Internal Memory: 1M bytes

Power Supply: DC 9V (AC adaptor)

Power Consumption: 11 W

Accessories: Owner's Manual, Audio Key Utility 2 Quick Guide, CD-ROM (Audio Key Utility 2, SONAR LE), Damper Pedal, AC Adaptor, Power Cord

Size and Weight
Width: 1,444 mm, 56-7/8 inches

Depth: 336 mm, 13-1/4 inches

Height: 134 mm, 5-5/16 inches

Weight: 16.4 kg, 36 lbs. 3 oz.
