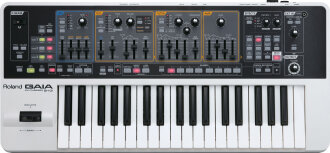

With its massive sound, hands-on ease, and affordable price, the GAIA SH-01 is a high-performance value with old-school charm. The triple-stacked engine puts potent virtual analog synthesis under your fingertips, yet the control panel is so fun, friendly, and inviting, even first-timers can create great sounds. The signal flow is simple to grasp, with logically arranged knobs, sliders, and buttons. Hands-on control and fat sound make this little powerhouse a joy for music students, songwriters, session players, and live performers of all styles and skill levels.
- Huge sound with three virtual analog engines onboard, each with a dedicated oscillator, filter, amplifier, envelope, and LFO
- Layer up to five simultaneous effects, including distortion, flanger, delay, reverb, low boost, and more
- 64-voice polyphony for massive sounds without note drop-out
- Fun, hands-on control panel that's great for instant gratification, and for learning synthesis
- Lightweight, compact body with 37 full-size keys
- Runs on AC or battery power for portable convenience
- D Beam, arpeggiator, and Phrase Recorder onboard
- USB ports for saving user patches to USB flash drives, and for audio/MIDI connection to computers
Triple-Fat Virtual Analog
Sink your teeth into the triple-stacked virtual analog engine, comprising three complete synths for incredibly thick, powerful sound. Unleash the beef of three oscillators that drive a trio of multimode, resonant filters, multi-shape LFOs, and amplifiers, plus nine envelope generators. It's like having three synthesizers in one! With 64 polyphonic voices onboard, the GAIA SH-01 makes it possible to play massive sounds without experiencing note drop-out.
From the silkiest reverb to the grittiest growl, the SH-01's instantly selectable multi-effects will catapult your sounds into another spatial dimension. You can layer up to five simultaneous effects for dozens of variations. The onboard effects include reverb, distortion, fuzz, bit crash, flanger, phaser, pitch shifter, low boost, and delay with panning and tempo sync. Dedicated control knobs are provided for tweaking the effects in real time.
At less than 10 pounds, the GAIA SH-01 is lightweight, compact, and great for musicians on the go. The 37-note keyboard is full-size, however, so performers can play naturally and comfortably. The synth can be powered via AC or batteries* for the ultimate in portable convenience. A battery-life indicator on the front panel ensures that you won't lose power unexpectedly. When used in conjunction with a battery-powered amp such as Roland's Cube Street, Mobile Cube, BA-330 or KC-110, the GAIA SH-01 can be played and heard anywhere!
The front panel puts every control directly under your fingertips. There are no hidden menus, no nonsense. Just play and move the knobs and sliders, or wave your hands over the invisible D Beam for dramatic effects. The logically designed front panel shows the signal path from left to right. It helps beginners understand synthesis, while experienced players will love the instant gratification of hands-on control during performance.
Phrase Recorder and Arpeggiator
Hold a note or chord and let the arpeggiator create musical magic automatically for you. The tempo can be set via tap tempo. In addition, the onboard Phrase Recorder lets you record what you play on the keyboard as well as the movements of the knobs and sliders. The controller data can also be played back independently to complement the notes you play in real time.
USB and EXT IN
Connect directly to a computer (Mac or PC) with one simple USB cable, and stream audio directly to the software of your choice. The SH-01's USB ports can also be used to transmit and receive MIDI data, and to store your patches and phrases (recorded with the Phrase Recorder) to a USB memory stick. For integrating with external devices, the SH-01's EXT input lets you connect external audio sources such as an MP3-player and play along with your favorite songs or backing tracks - great for practice and live performance. Manipulate the incoming audio with three Center Cancel modes, which let you eliminate pre-recorded vocals, guitars, or bass.
*Can be powered by eight rechargeable Ni-MH AA batteries.Power Supply:
AC Adaptor, Power Cord (Included)
Same Day Music is an authorized dealer of
- 37 keys (velocity sensitive)
- Maximum Polyphony: 64 voices
Sound Generator Section:
- Virtual analog synthesizer sound generator (Number of part: 1)
- (Oscillator + Filter + Amp + Envelopes + LFO) x 3
- PCM sound generator (Number of parts: 15)
- Preset: 64
- User: 64OSC Section
- Oscillator waveform: SAW, SQUARE, PULSE/PWM, TRIANGLE, SINE, NOISE, SUPER SAW
- Knobs/Sliders: PITCH, DETUNE, Pulse Width, Pulse Width Modulation
- Envelope: Attack, Decay, Envelope Depth
- Oscillator Sync, Ring Modulation
- (Tone 2's OSC 2 is applied as modulation to Tone 1's OSC 1.)FILTER Section
- Filter Type: LPF, HPF, BPF, PKG (-12 dB/-24 dB)
- Knobs: CUTOFF, RESONANCE, KEY FOLLOW
- Envelope: Attack, Decay, Sustain, Release, Envelope DepthAMP Section
- Knobs: LEVEL
- Envelope: Attack, Decay, Sustain, Release
- LFO Section:
LFO Shape: TRIANGLE, SINE, SAW, SQUARE, Sample
- Knobs/Sliders: RATE, FADE TIME, PITCH DEPTH, FILTER DEPTH, AMP DEPTH
- Tempo Sync: ON/OFF
- DIST: Distortion, Fuzz, Bit Crash
- FLANGER: Flanger, Phaser, Pitch Shifter
- DELAY: Delay, Panning Delay (with tempo sync function)
- REVERB: Reverb
- LOW BOOST: Low Boost
- Control 1, Level
- Pitch Bend/Modulation lever
- D BEAM Controller
- Preset pattern: 64
- User: 8
- Number of Track: 1
- OUTPUT jacks (L/MONO, R) (1/4 inch phone type)
- Headphone jack (Stereo 1/4 inch phone type)
- PEDAL jack (TRS phone type)
- MIDI Connectors (IN, OUT)
- USB COMPUTER (supports USB Hi-Speed Audio/MIDI)
- USB MEMORY (supports USB 2.0 Hi-Speed flash memory)
- EXT IN jack (Stereo miniature phone type)
- DC IN jack
- DC 9 V (AC Adaptor or rechargeable nickel-metal hydride AA batteries x 8)
- * Batteries sold separately.
- * Zinc-carbon batteries or alkaline batteries cannot be used.
Current Draw: 600 mA
Battery life for continuous use:
- Approximately 5 hours
- * Using rechargeable nickel metal hydride batteries
- * Approximately 4 hours if USB memory is connected
- * Differs depending on the conditions of useAccessories
- Owner's Manual, Guide Book, CD-ROM (USB DRIVER), DVD Video, AC Adaptor (PSB-1U), Power CordOptions
- Keyboard Stand: KS-18Z(*), Pedal Switch: DP series, Expression Pedal: EV-5, USB Memory: M-UF2G
- * Make sure that this instrument is mounted at a height that is no higher than 1 meter.Size and Weight
- 689 mm
- 27-3/16 inches
- 317 mm
- 12-1/2 inches
- 100 mm
- 3-15/16 inches
- 4.2 kg
- 9 lbs. 5 oz.
In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.
Same Day Music is an authorized dealer of
- Shipping Weights and Dimensions
- Base Item
- Shipping Weight: 14 lbs
