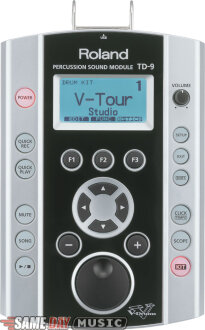

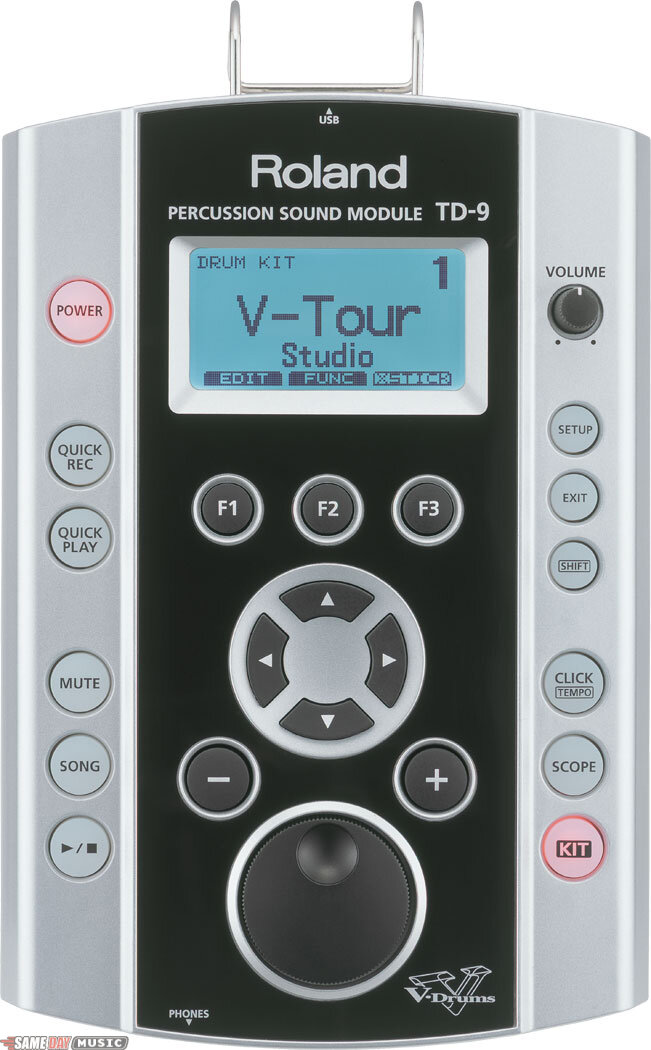

Roland TD9 Percussion Sound Module
Scope function with graphical LCD display. USB host for audio-file (.WAV) playback.
Product rated 8.0 out of 10 (1 rating)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:
Main
Alternate View
Bottom View
Side View
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The TD9 is the anchor of Roland’s new mid-line V-Drums kits. With hundreds of new sounds, real-audio songs and patterns onboard, plus new Scope and Quick Rec/Quick Play practice functions, full V-Hi-Hat (VH11) compatibility, and three-way ride triggering available, the TD9 raises the bar significantly in its price range.
Features
Expressive new sounds, real-audio songs and patterns
Scope function with graphical LCD display
USB host for audio-file (.WAV) playback
Fast, Friendly, Fun
No more squinting at a small screen — the TD9 is outfitted with a luxurious, large backlit display with accompanying oversized buttons and controls. Its friendly, icon-based user interface makes editing sounds and customizing kits fast and fun.
Interactive Innovation
Play along with real-audio backing songs to build your musical experience base. Use the USB port to play along with audio files of your choice (.WAV), back up your data, or save a “quick record” performance. The “Quick Record” and “Quick Play” features allow you to immediately record and play back solo drum parts, or drum parts performed with the backing songs. Special connecting cable allows for fast, clean and easy connection to the pads.
Features
Expressive new sounds, real-audio songs and patterns
Scope function with graphical LCD display
USB host for audio-file (.WAV) playback
Fast, Friendly, Fun
No more squinting at a small screen — the TD9 is outfitted with a luxurious, large backlit display with accompanying oversized buttons and controls. Its friendly, icon-based user interface makes editing sounds and customizing kits fast and fun.
Interactive Innovation
Play along with real-audio backing songs to build your musical experience base. Use the USB port to play along with audio files of your choice (.WAV), back up your data, or save a “quick record” performance. The “Quick Record” and “Quick Play” features allow you to immediately record and play back solo drum parts, or drum parts performed with the backing songs. Special connecting cable allows for fast, clean and easy connection to the pads.
TECHNICAL DESCRIPTION
Instrument
Drum Instruments: 522
Drum Kits: 50
Instrument Parameters:
- KICK: Head Tuning, Muffling
- SNARE: Head Tuning, Muffling
- TOM: Head Tuning, Muffling
- HI-HAT: Cymbal Size, Fixed Hi-Hat
- CYMBAL: Cymbal Size, Sustain
- OTHERS: Pitch, Decay
Effect Types: Ambience (9 types), 2-Band Equalizer
Ambience Parameters: Room Type, Room Size, Wall Type, Mic Position, Room Shape
Mixer Parameters: Volume, Pan
Percussion Set: 1
Song:
- Preset Songs: 50
- Parts: 4
- Play Function: One shot, Loop, Repeat
- Tempo: 20-300
Quick Rec:
- Resolution: 480 ticks per quarter note
- Recording Method: Real-time
- Maximum Note Storage: Approx. 32,000 Notes
Audio File Format: WAV
Display: 128 x 64 dots Graphic Type LCD (backlit LCD)
Connectors: Trigger Cable connector (DB-25 type), (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control), Extra Trigger Input Jacks: 2 (CRASH2, AUX) (Stereo 1/4 inch phone type), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo miniature phone type), MIDI Connectors (IN, OUT/THRU), USB Connector (for USB Memory)
Output Impedance: 1.0 k ohms
Power Supply: AC Adaptor (DC 9V)
Current Draw: 500 mA
Accessories: Owner's Manual, Quick Start Guide, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate
Options: Pads (PD-8, PDX-8, PD-85, PD-105, PD-125), Cymbals (CY-5, CY-8, CY-12R/C, CY-14C, CY-15R), Kick Triggers (KD-8, KD-85, KD-120), Hi-Hats (VH-11), Hi-Hat Control Pedal (FD-8), Stand (MDS-9), Cymbal Mount (MDY-10U), Pad Mount (MDH-10U), Personal Drum Monitor (PM-10, PM-30), V-Drums Accessory Package (DAP-3), V-Drums Mat (TDM-10)
Drum Instruments: 522
Drum Kits: 50
Instrument Parameters:
- KICK: Head Tuning, Muffling
- SNARE: Head Tuning, Muffling
- TOM: Head Tuning, Muffling
- HI-HAT: Cymbal Size, Fixed Hi-Hat
- CYMBAL: Cymbal Size, Sustain
- OTHERS: Pitch, Decay
Effect Types: Ambience (9 types), 2-Band Equalizer
Ambience Parameters: Room Type, Room Size, Wall Type, Mic Position, Room Shape
Mixer Parameters: Volume, Pan
Percussion Set: 1
Song:
- Preset Songs: 50
- Parts: 4
- Play Function: One shot, Loop, Repeat
- Tempo: 20-300
Quick Rec:
- Resolution: 480 ticks per quarter note
- Recording Method: Real-time
- Maximum Note Storage: Approx. 32,000 Notes
Audio File Format: WAV
Display: 128 x 64 dots Graphic Type LCD (backlit LCD)
Connectors: Trigger Cable connector (DB-25 type), (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control), Extra Trigger Input Jacks: 2 (CRASH2, AUX) (Stereo 1/4 inch phone type), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo miniature phone type), MIDI Connectors (IN, OUT/THRU), USB Connector (for USB Memory)
Output Impedance: 1.0 k ohms
Power Supply: AC Adaptor (DC 9V)
Current Draw: 500 mA
Accessories: Owner's Manual, Quick Start Guide, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate
Options: Pads (PD-8, PDX-8, PD-85, PD-105, PD-125), Cymbals (CY-5, CY-8, CY-12R/C, CY-14C, CY-15R), Kick Triggers (KD-8, KD-85, KD-120), Hi-Hats (VH-11), Hi-Hat Control Pedal (FD-8), Stand (MDS-9), Cymbal Mount (MDY-10U), Pad Mount (MDH-10U), Personal Drum Monitor (PM-10, PM-30), V-Drums Accessory Package (DAP-3), V-Drums Mat (TDM-10)
