Product Description

With a new advanced sound engine at its core, the mid-range V-Drums family has new bragging rights. The new TD9 sound module is loaded with fresh sounds, and offers a deeper level of expression. Together with Roland’s most advanced triggering technology, this kit is destined to become a big hit with drummers worldwide.

Features

Advanced TD9 module with expressive new sounds, real-audio songs and patterns

Comfortable mesh-head tom and snare pads with rim triggering

Three-way triggering for ride cymbal

Scope function with graphical LCD display

USB host for audio-file (.WAV) playback

Special cable for easy pad connections

Sturdy drum rack (MDS-9) with newly designed ball-clamps for the snare and cymbal arms and a new hi-hat mount for maximum flexibility

Fast, Friendly, Fun
No more squinting at a small screen — the TD9 is outfitted with a luxurious, large backlit dis- play with accompanying oversized buttons and controls. Its friendly, icon-based user interface makes editing sounds and customizing kits fast and fun.

Interactive Innovation
Play along with real-audio backing songs to build your musical experience base. Use the USB port to import audio files of your choice (.WAV), back up your data, or save a “quick record” performance. The “Quick Record” and “Quick Play” features allow you to immediately record and play back solo drum parts, or drum parts performed with the backing songs. Special connecting cable allows for fast, clean and easy connection to the pads.

Convenience & Stability
Whether you’re in search of a clean, streamlined setup for your home or a strong rack for gigs that sets up and tears down fast, the new MDS-9 delivers.

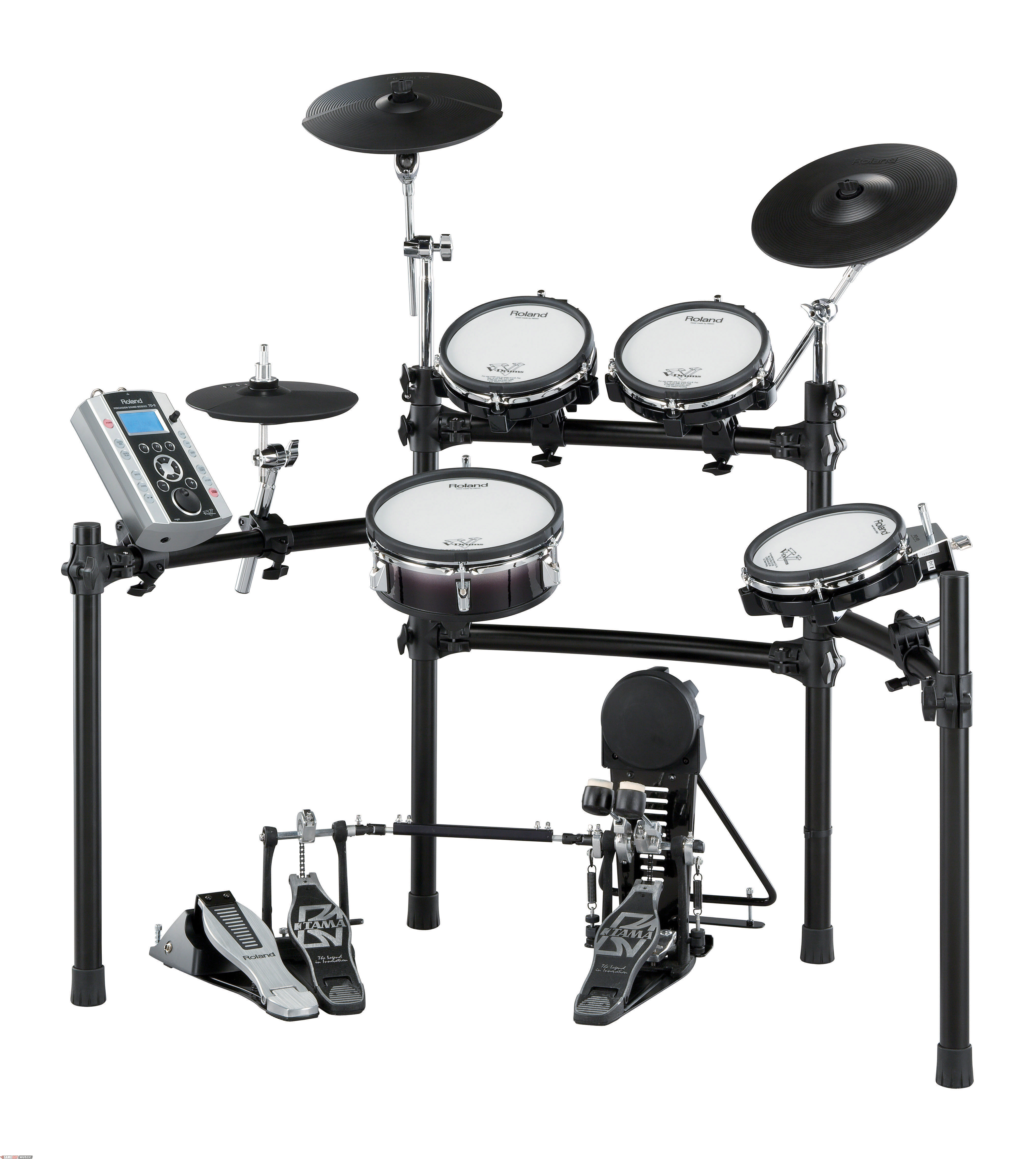

The TD9SX components are packaged in two boxes as follows:

Box 1
(1) TD9 Percussion Sound Module (1) PD-105BK Mesh Pad (3) PD-85BK Mesh Pads (1) KD-8 Kick Pad (1) CY-5 Dual-Trigger Cymbal Pad (1) CY-8 Dual-Trigger Cymbal Pad (1) CY-12R/C V-Cymbal Ride/Crash Pad (1) FD-8 Hi-Hat Control Pedal (1) multi-cable harness

Box 2
This includes the drum set rack, the clamps & arms for both the pads and the cymbals, and the mounting plate that attaches to the bottom of the TD9 percussion module.

Technical Description

TD-9: Percussion Sound Module
Instruments:
- Drum Instruments:522

Drum Kits: 50

Instrument Parameters:
- KICK: Head Tuning, Muffling
- SNARE: Head Tuning, Muffling
- TOM: Head Tuning, Muffling
- HI-HAT: Cymbal Size, Fixed Hi-Hat
- CYMBAL: Cymbal Size, Sustain
- OTHERS: Pitch, Decay

Effect Types: Ambience (9 types), 2-Band Equalizer

Ambience Parameters: Room Type, Room Size, Wall Type, Mic Position, Room Shape

Mixer Parameters: Volume, Pan

Percussion Set: 1

Song:
- Preset Songs: 50
- Parts: 4
- Play Function: One shot, Loop, Repeat
- Tempo: 20-300

Quick Rec:
- Resolution: 480 ticks per quarter note
- Recording Method: Real-time
- Maximum Note Storage: Approx. 32,000 Notes

Audio File Format: WAV

Display: 128 x 64 dots Graphic Type LCD (backlit LCD)

Connectors: Trigger Cable connector (DB-25 type), (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control), Extra Trigger Input Jacks: 2 (CRASH2, AUX) (Stereo 1/4 inch phone type), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo miniature phone type), MIDI Connectors (IN, OUT/THRU), USB Connector (for USB Memory)

Output Impedance: 1.0 k ohms

Power Supply: AC Adaptor (DC 9V)

Current Draw: 500 mA

Accessories Incuded: Owner's Manual, Quick Start Guide, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate

Options
Cymbal Mount (MDY10U), Pad Mount (MDH10U), Personal Drum Monitor (PM10, PM30), V-Drums Accessory Package (DAP3), V-Drums Mat (TDM10)

Size and Weight
Dimensions (WxDxH): (1,300 mm, 51 3/16 in.) x (1,200 mm, 47 1/4 in.) x (1,350 mm, 53-3/16 in.)

Weight: 15.0 kg, 33 lbs. 2 oz.
