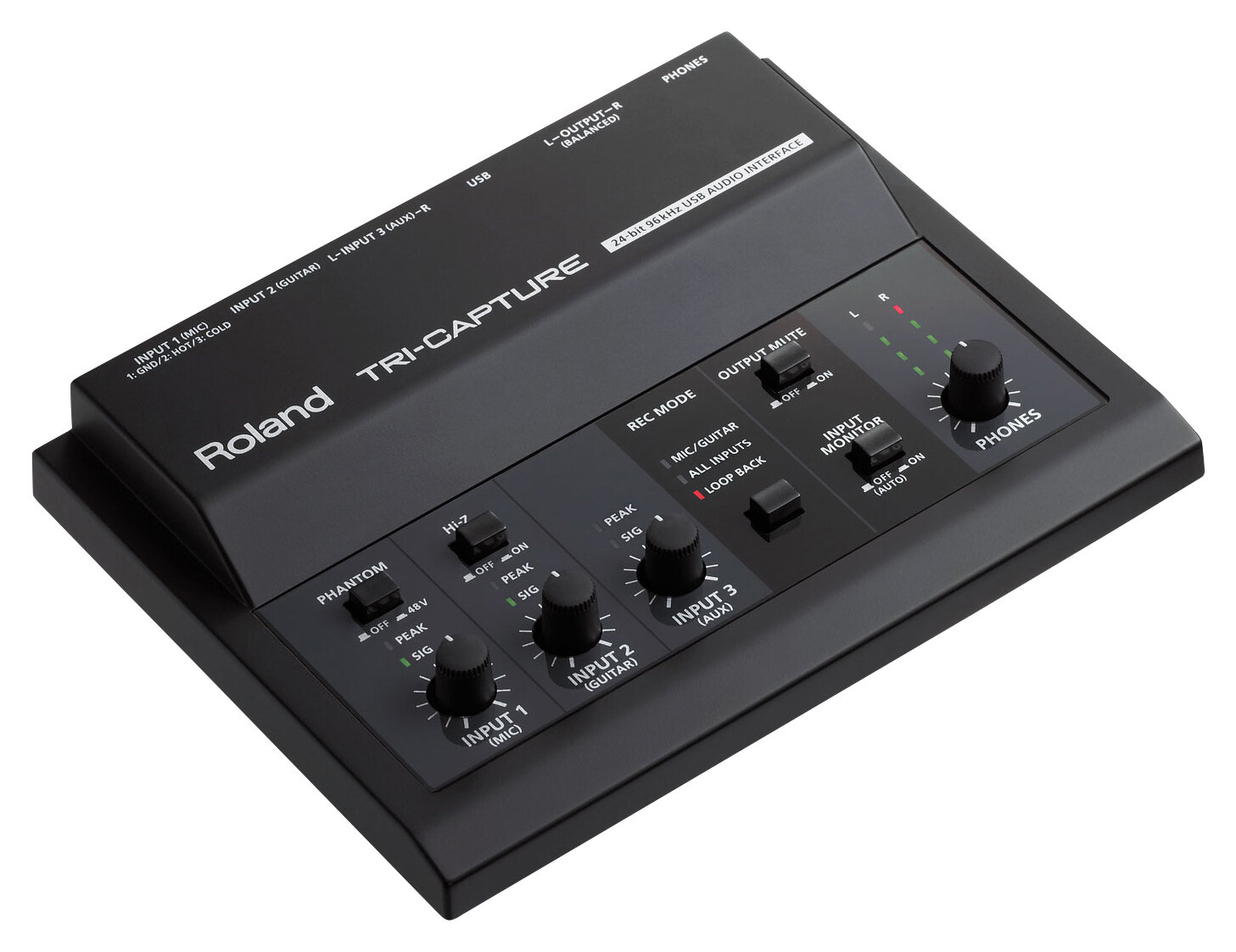

Roland TRi-CAPTURE USB Audio Interface (2-in/2-out)

The new head of its class is the multifaceted is the Roland TRI-CAPTURE USB interface -- a unique, compact audio interface optimized for personal and mobile recording, vocal and guitar recording, and streaming-internet applications. With its mixer-like design and dedicated front-panel controls, Roland's TRI-CAPTURE makes it easy to mix, control, and monitor a variety of signals. Plug a microphone into the XLR input, an instrument into the 1/4-inch jack, and a stereo instrument or device into the AUX input. The unique REC MODE section provides instant selection of recording scenarios, including LOOP BACK for web streaming applications. The Roland TRI-CAPTURE is full-featured yet portable, and is USB bus powered for a clean, simple setup.

Features

- Affordable, easy-to-use interface for guitarists, vocalists, and other musicians
- Also works great for video production, web streaming, and creating podcasts with unique LOOP BACK function
- XLR mic input with phantom power, plus 1/4-inch input with Hi-Z switch for connecting a guitar directly
- Stereo AUX input with dedicated volume control
- Balanced 1/4-inch TRS outputs and headphone jack
- Low-latency ASIO driver; recording and playback at rates up to 24-bit/96 kHz
- USB bus powered with 24-bit/96 kHz operation
- Cakewalk SONAR X1 LE included

Same Day Music is an authorized dealer of Roland products.

Number of Audio Record/Playback Channels:
- Record: 1 pair of stereo
- Playback: 1 pair of stereo Full duplex (except 96 kHz)

Signal Processing: 24 bits (linear)

Sampling Frequency: 96 kHz, 48 kHz, 44.1 kHz

Nominal Input Level:
- Mic input: -60 to -30 dBu Guitar input: -25 dBu Line input: -10 dBu

Output Level:
- Output jacks: +4 dBu (input terminated with 1 k ohm, Input Monitor: OFF, IHF-A typ.)

Residual Noise Level: -93 dBu typ.

Dynamic Range: 100 dB typ.

Interface: USB

Rec Modes: MIC/GUITAR ALL INPUTS LOOP BACK (expect 96 kHz)

Connectors: INPUT1 (Mic) jack (XLR type, balanced, phantom power DC 48 V, 10mA Max) INPUT2 (Guitar) jack (1/4-inch phone type) INPUT3 (AUX) jacks (L, R) (RCA phono type) Output jacks (L, R) (1/4-inch TRS phone type (balanced)) Headphone jack (Stereo 1/4-inch phone type) USB connector (USB Type B)

Power Supply: Supplied from the computer via USB

Current Draw: 450 mA

Accessories Included: Owner's Manual CD-ROM USB cable Cakewalk SONAR LE DVD-ROM (for Windows)

Size and Weight
Width:
- 171 mm
- 6-3/4 inches

Depth:
- 134 mm
- 5-5/16 inches

Height:
- 40.1 mm
- 1-10/16 inches

Weight:
- 320 g
- 0 lbs. 12 oz.

Same Day Music is an authorized dealer of Roland products.

Shipping Weights and Dimensions

Shipping Weight: 2 lbs

Shipping Dimensions: 9 x 8 x 2 in
