Product Description

Samson Airline 77 UHF Wireless systems are an unbeatable combination. Samson Concert 77 UHF True Diversity Half-Rack Receivers matched up with Samson's incredible Airline Series mini transmitters give you 'belt-pack-free' mobility at new low prices. Ultra-light, ultra-compact, and incredibly efficient, Airline Series transmitters provide flawless wireless performance for 12 hours on a single AAA battery.

For 2 decades Samson has led the world in wireless technology for musicians. Their philosophy: Make cutting-edge technology available to everyone. No system has ever done it like this before: the revolutionary Airline Wireless Systems -- with no belt packs -- at prices everyone can afford.

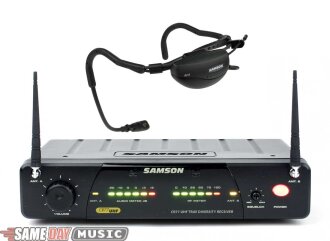

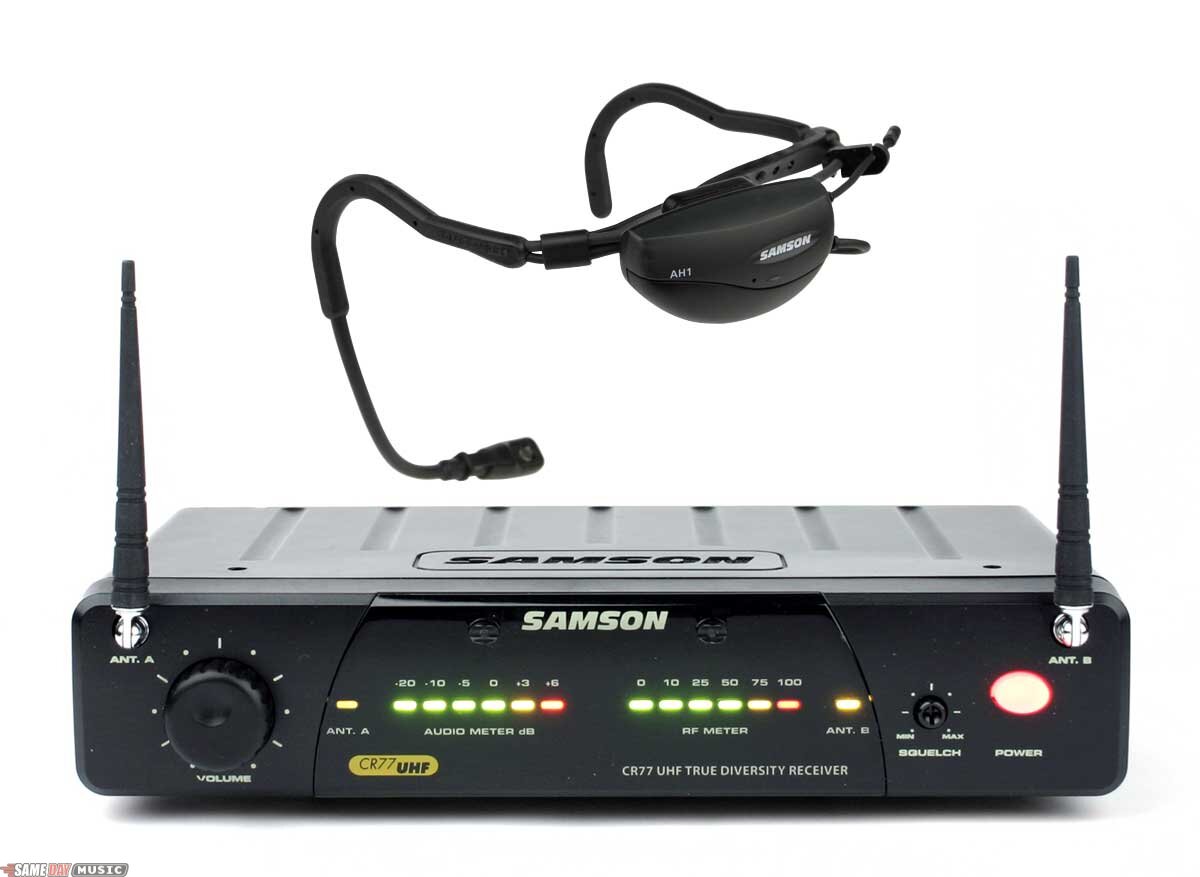

CR77 Receiver
The heart of Airline 77 is the new CR77 Receiver. This true-diversity half-rack unit with PLL frequency control works with all of the Airline transmitters. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference.

AH1 Headset Transmitters QE & QV Mic Elements
For on stage performance, public speaking, DJs, health club applications. Samson makes a comfortable, lightweight headset mic with no belt pack. Qe Fitness Includes a custom designed condenser mic element that resists damage from the corrosion that comes in health club settings. Qv Performance The highest performance level attainable from an element of this size and type. Designed with music performance in mind.

Qe Microphone
Specifically designed for aerobics and fitness training, the Qe headset mic is light, comfortable and features a water-resistant mic element to protect against perspiration. This mic can be individually adjusted for a perfect fit.

Qe Features:
Modern condenser mic element

Hypercardioid pattern to reduce feedback

50 Hz to 18 kHz frequency response for clear, articulate sound

Water-resistant design

Lightweight and comfortable

Special headband for tighter fit

Adjustable metal gooseneck for easy mic positioning

Locking detachable P3 connector reduces cable/connection problems

Technical Description

Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz

Receiver (CR77)
Type of Reception: Single Superheterodyne, True Diversity

Oscillation Type: Synthesized PLL Frequency Control

D-emphasis: 50 μsec

IF Frequency: 10.7 MHz

Antenna: 1/4 Wavelength Rod

In/Out: DC Inlet, Balanced Output, Unbalanced Output

Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

Level Controls: Volume, Squelch

Operating Voltage: 12 Volts + 10 %

Current Consumption: 160 mA (at all LED lights)

Receiving Frequency Range: 801 - 805 MHz

Sensitivity: 18 dBμ @ THD 2%

Squelch Sensitivity: 0 - 40 dBμ (Adjustable)

Selectivity: ± 150 kHz (AF Out Ratio -60 dB)

S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)

Residual Noise: 90 dBv (w/ IHF-A fi lter)

Band Mute: ± 50 kHz / ± 100 kHz (RF IN: 46 dBu EMF)

AF Frequency Response: 50 Hz - 15 kHz (± 3 dB overall)

Audio Output Level - Unbalanced: 0 dBv

Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch
Selectable

Audio Output Impedance/Unbalanced: 5 k Ohms

Audio Output Impedance/Balanced: 600 Ohms

Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)

Weight: .75 lb / 340 g

Catalog Description

Diversity UHF receiver@Headset mic/transmitter@Condenser mic element
