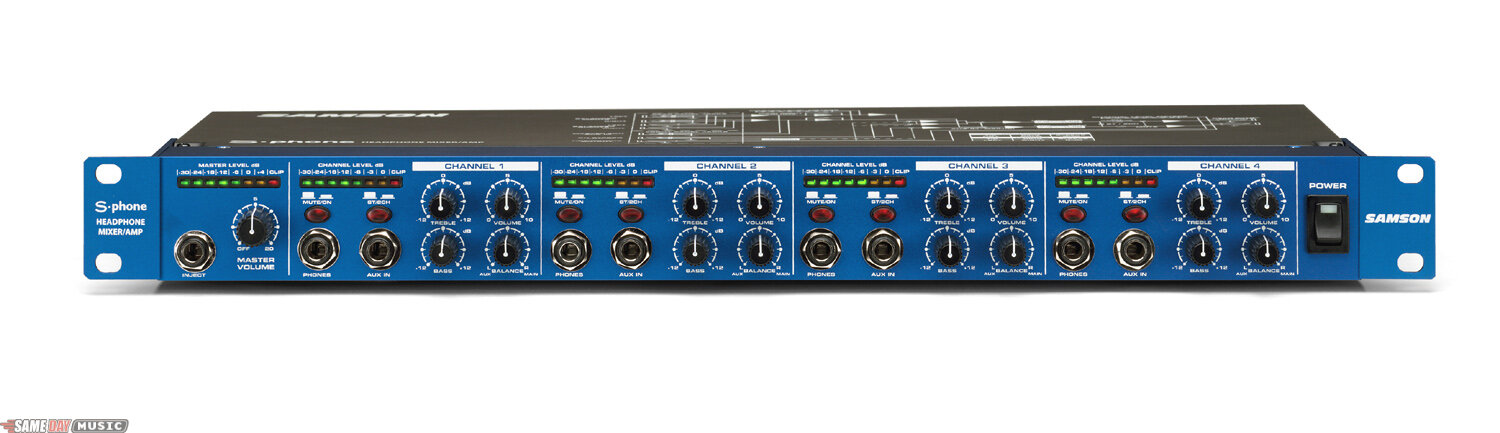

Samson S-Phone Headphone Amplifier (4-Channel)

Part of the all new S-Class line of studio/stage signal processing gear, the New Samson S-Phone 4-Channel Studio Headphone Amp is loaded with advanced features that provide tremendous power and flexibility for monitor and cue mixing. Each of S-Phone's four channels include: three headphone outputs (one front/two rear) to drive up to 12 sets of headphones, a channel volume control with individual Channel Level Meter, a 2-band Equalizer (with Flat detent), a stereo Auxiliary Input, and a Balance Control to adjust the ratio of Main and Auxiliary signals or left and right balance (based on the setting of the Stereo/2 Channel switch). The Master section features an input level control, a stereo input LED meter, and a master Stereo Aux input for inserting a second signal to all headphones. Best of all, each channel of the S-Phone has been designed to operate safely down to 8 ohms when used with multiple headphones.

Each of S phone's 4 channels includes 3 Headphone Outputs with an overall Volume control and individual Level meters. A convenient Stereo Auxiliary input is available on each channel so that individual line signals from direct or buss outputs can be mixed with the main stereo input. The Balance control adjusts the ratio of the Main and Auxiliary signal or the left to right balance (based on the setting of the ST/2CH switch) so that each headphone mix can be further tailored for a particular listener's individual needs ("More Me").

For greater sonic control, S phone also features a 2-band equalizer on each of the four channels. A master Stereo Aux input on the front panel is also supplied for inserting a second signal to all headphones.

Features:

4-Channel Headphone Mixer/Amplifier

2 Master Stereo Inputs plus Stereo Link Output

8 Segment LED Metering on Each Channel and Master

2-Band Equalizer on Each Channel

Three Headphone Outputs per Channel (One Front Panel and Two Rear Panel Outputs)

Auxiliary Input with Balance Control provides four Channels of "More Me" Mixing

Mute and Stereo/2 Channel Mode Switches on Each Channel

Maximum Output Power on Each Channel (Regardless of Headphone Impedance)

3-year Extended Warranty

Same Day Music is an authorized dealer of Samson products.

Inputs: 2 TRS Balanced

Same Day Music is an authorized dealer of Samson products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 8 lbs

Shipping Dimensions: 23 x 11 x 5 in
