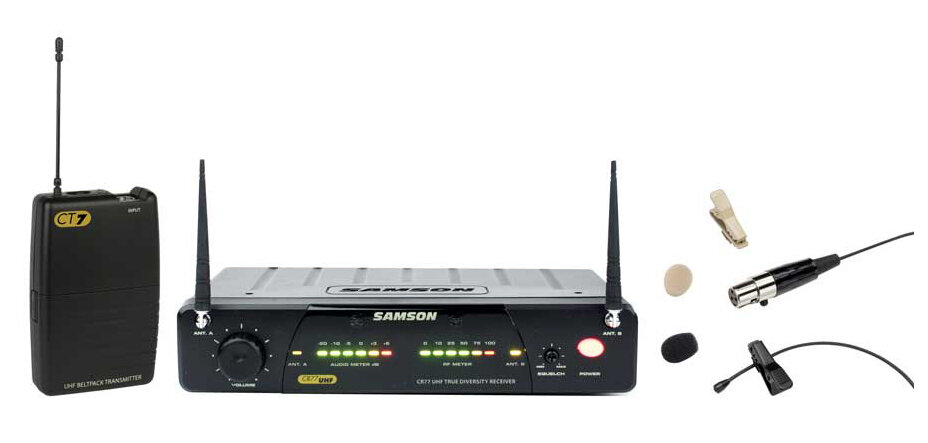

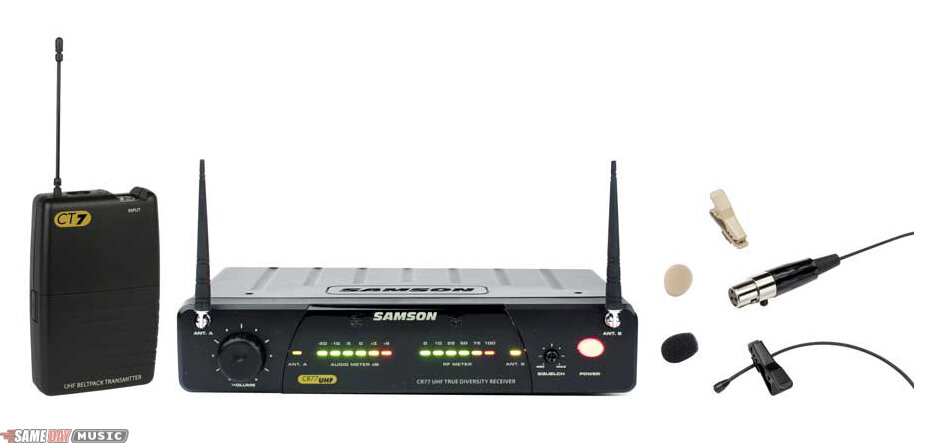

The Concert 77 system is a UHF wireless solution ideal for any professional application. UHF means Ultra High Frequency, which translates to crystal clear operation with no interference, traditionally available on only the most expensive systems. Now UHF performance and reliability are affordable thanks to Concert 77.
The new CT7 beltpack transmitter can be configured as a lavalier, headset, wind instrument and guitar system thanks to the popular locking P3 input connection. The CT7 also features a three-segment battery indicator, separate power and audio on/off switches, adjustable AF level (audio gain), and 12 hours of battery life on a single 9-volt battery.
The CR77 true-diversity half-rack UHF receiver is the core of the Concert 77 system. The new synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The CR77 features a front panel display with large multi-segment audio level and RF level LED meters, and a large rotary volume knob allows easy adjustment of audio output. The rear panel features balanced XLR and unbalanced 1/4-inch outputs allowing flexible connection options. Two CR77 receivers can be rackmounted together in a single-space rack adapter available as an added accessory.
Specifications
True Diversity UHF Wireless System with PLL Frequency Control
Multi-segment Audio level, RF level and A/B Antenna Operation LED meters
Squelch control eliminates carrier signal noise and RF interference
Tuned molded antennas for accurate reception
XLR and unbalanced 1/4-inch outputs with mic/line level output switch
System
System Channels: 6
Frequency Type: F3
Modulation Type: FM
Noise Reduction Type: Compander/Expander
Distance: 300 feet
Transmitter (HT7, CT7)
Oscillation Type: Direct PLL
Pre-emphasis L 50 ìsec
Antenna:
- HT7: Integral Antenna
- CT7: 1/4 Wave Length Wire (Pig Tail)
Input (CT7): TB3M Switchcraft Connector
Maximum Input Level: 3 V p-p
Battery: Duracell MN1604 9-volt alkaline
Operating Temperature: -20° C / 55° C
Switches and Controls: Power ON/OFF, Audio ON/OFF
- HT7: Mic Level Volume
- CT7: Audio Level
Display (LED): Battery Low/Mid/High (corresponds to <5.3 V / 5.3 - 7 V / >7V)
Operating Voltage: 9 Volts +20% / -40%
Current Consumption: 47 mA
RF Power: 10 mW
Frequency Stability: ±20 kHz
Spurious Ratio: 2.5 nW
Deviation: 20 kHz (16.5 kHz - 23.5 kHz)
T.H.D. (Overall): 0.5% (3% max) (@AF 1 kHz, RF 46 dBu)
AF Frequency Response: 50 Hz - 15 kHz (±3 dB overall)
Battery Life: 12 hours
Receiver
Oscillation Type: PLL
De-emphasis: 50 ìsec
IF Frequency: 10.7 MHz
Antenna: 1/4 Wavelength Rod
Input and Output: DC Inlet, Balanced Output, Unbalanced Output
Display (LED): Receiver A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)
Level Control: Audio Level Volume, Mute Level Control
Operating Temperature: 0° C / 50° C
Operating Voltage: 12 Volts ±10%
Current Consumption: 160 mA (at all LED lights)
Receiving Frequency Range: 801 - 805 MHz
Sensitivity: 18 dBì (@ THD 2%)
Squelch Sensitivity: 0 - 40 dBì (Adjustable)
Selectivity: ±150 kHz (AF Out Ratio -60 dB)
T.H.D. (Overall): 1% Max (@AF 1 kHz, RF 46 dBu)
Signal to Noise Ratio (Overall): 90 dB (w/IHF-A Filter)
Residual Noise: 90 dBv (w/IHF-A Filter)
Band Mute: ±40 kHz / ±100 kHz (RF IN: 46 dBu EMF)
AF Frequency Response: 50 Hz - 15 kHz (±3 dB overall)
Audio Output Level - Unbalanced: 0 dBv
Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic)
Audio Output Impedance - Unbalanced: 5 k Ohms
Audio Output Impedance - Balanced: 600 Ohms
